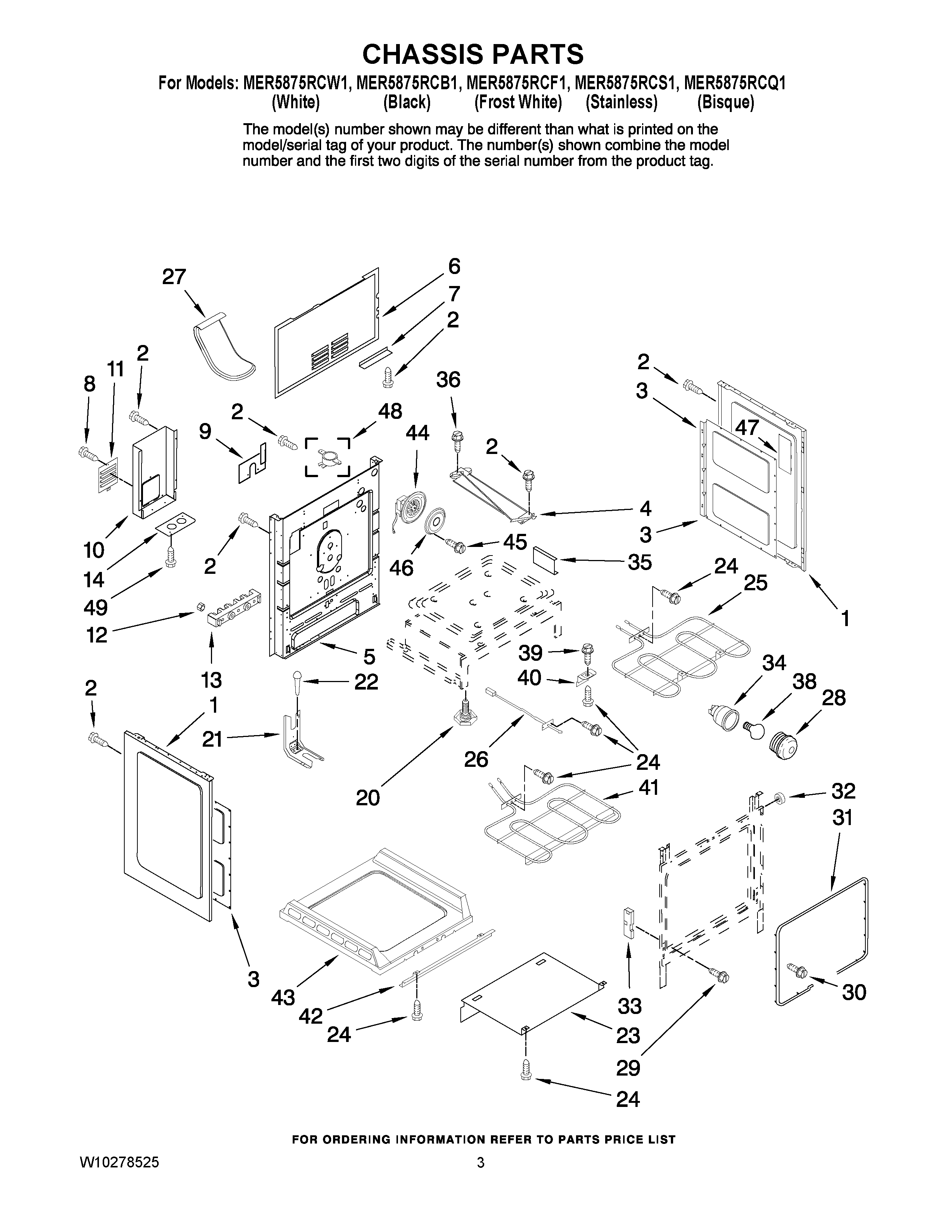

MER5875RCW1 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY 3804F316-51
NI	MAY 7002P362-60
NI	MAY 7022P492-60
NI	MAY W10190168
1	Panel, Side (Bisque)
1	MAY 2618F172-69
1	MAY 2618F172-58
2	MAY 4159450
3	Retainer, Side
4	MAY 8002P104-60
5	MAY W10179196
6	MAY 4005F754-51
9	MAY 7003P145-60
10	MAY 4005P703-51
11	MAY 4005P704-51
12	WP488130 Whirlpool Air Conditioner Nut
13	WPW10245259 Whirlpool Terminal Block
14	COVER, REAR
20	Leg, Leveling
23	MAY 3604F371-51
25	MAY 7406P493-60
26	MAY 7430P042-60
27	MAY 8026P081-60
28	SCREW
29	SCREW (10-24X5/16-NI)
31	MAY W10162385
32	MAY 8010P148-60
33	MAY 7106P125-60
36	Screw (Black) (2)
38	MAY 7407P181-60
39	MAY 7101P618-60
40	MAY 3801P822-45
41	MAY 7406P451-60
42	MAY 3807P680-45
43	MAY 2205F053-19
44	MAY 7427P105-60
45	SCREW
46	MAY 3605F305-19
47	MAY 7002P494-60
48	Switch, Thermal
49	SCREW
