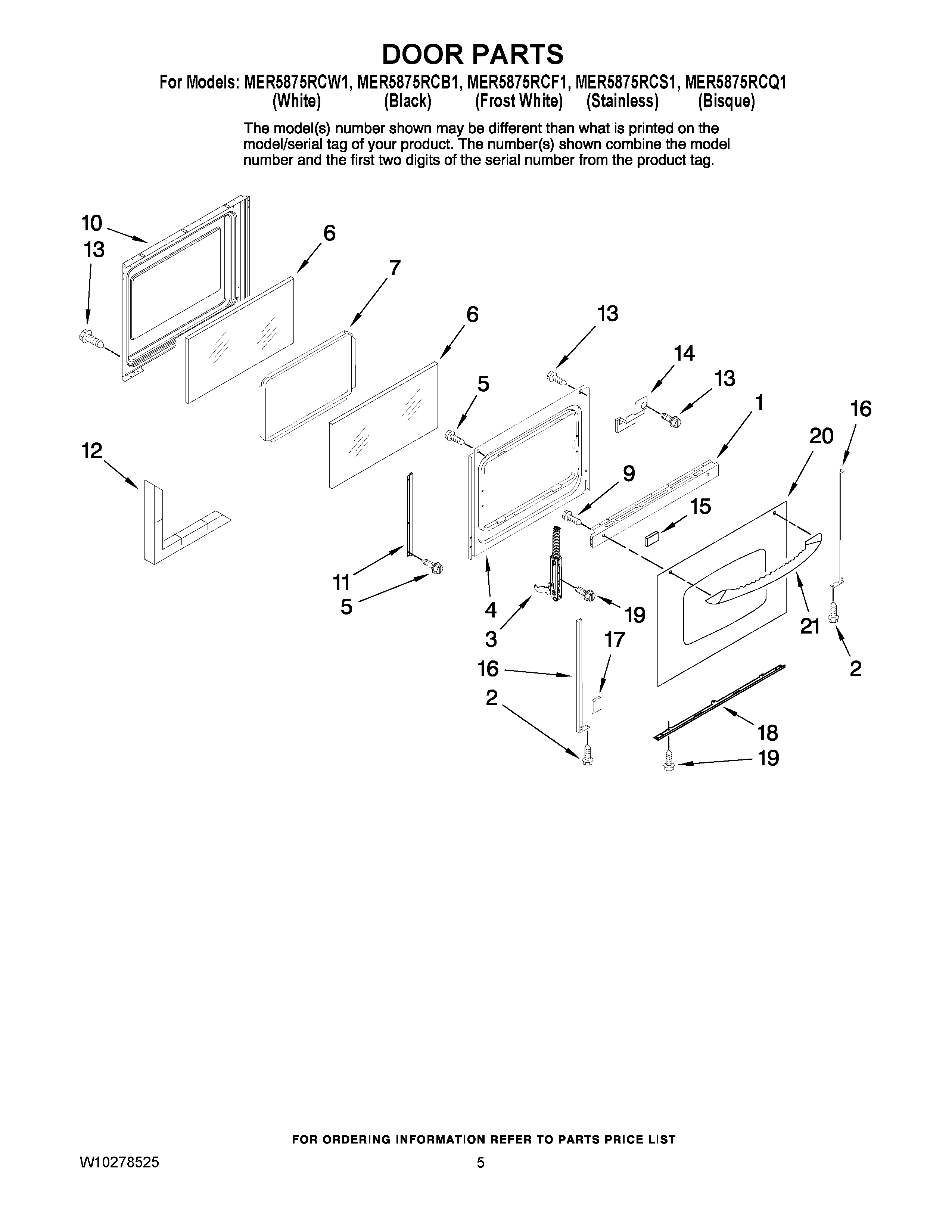

MER5875RCW1 04 – DOOR PARTSadmin2025-04-26T09:13:55+00:00MER5875RCW1 04 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | MAY 3608F140-71 |
| 1 | MAY 3608F140-70 |
| 1 | MAY 3608F140-78 |
| 2 | Screw (2) (Black) |
| 2 | Screw, Handle (White) |
| 2 | SCREW, HANDLE (BISQUE) |
| 3 | MAY 7106P124-60 |
| 4 | Retainer, Side |
| 6 | Glass, Inner |
| 9 | MAY 7101P681-60 |
| 10 | MAY 2402W297-19 |
| 11 | BRACKET, INNER GLASS |
| 12 | MAY 7002P246-60 |
| 13 | SCREW |
| 14 | MAY 3801P857-45 |
| 14 | MAY 3801P858-45 |
| 15 | Tape (White) |
| 16 | MAY 3608F126-61 |
| 16 | Trim, Door Side (Bisque) |
| 16 | MAY 3608F126-70 |
| 17 | MAY 8270P193-60 |
| 17 | Tape, Double Sided (White) |
| 18 | MAY 3608F092-61 |
| 18 | MAY 3804P236-51 |
| 18 | TRIM, DOOR BOTTOM (BISQUE) |
| 19 | SCREW (10-24X5/16-NI) |
| 20 | GLASS, DOOR (WHITE) |
| 20 | MAY 7902P791-60 |
| 20 | MAY 7902P782-60 |
| 21 | MAY 7701P517-60 |
| 21 | MAY 7701P516-60 |
| 21 | HANDLE, DOOR (STAINLESS) |
| 21 | MAY 7701P518-60 |
