MER5880BAS 02 – CONTROL PANEL

MER5880BAS 02 – CONTROL PANEL

Written by

in

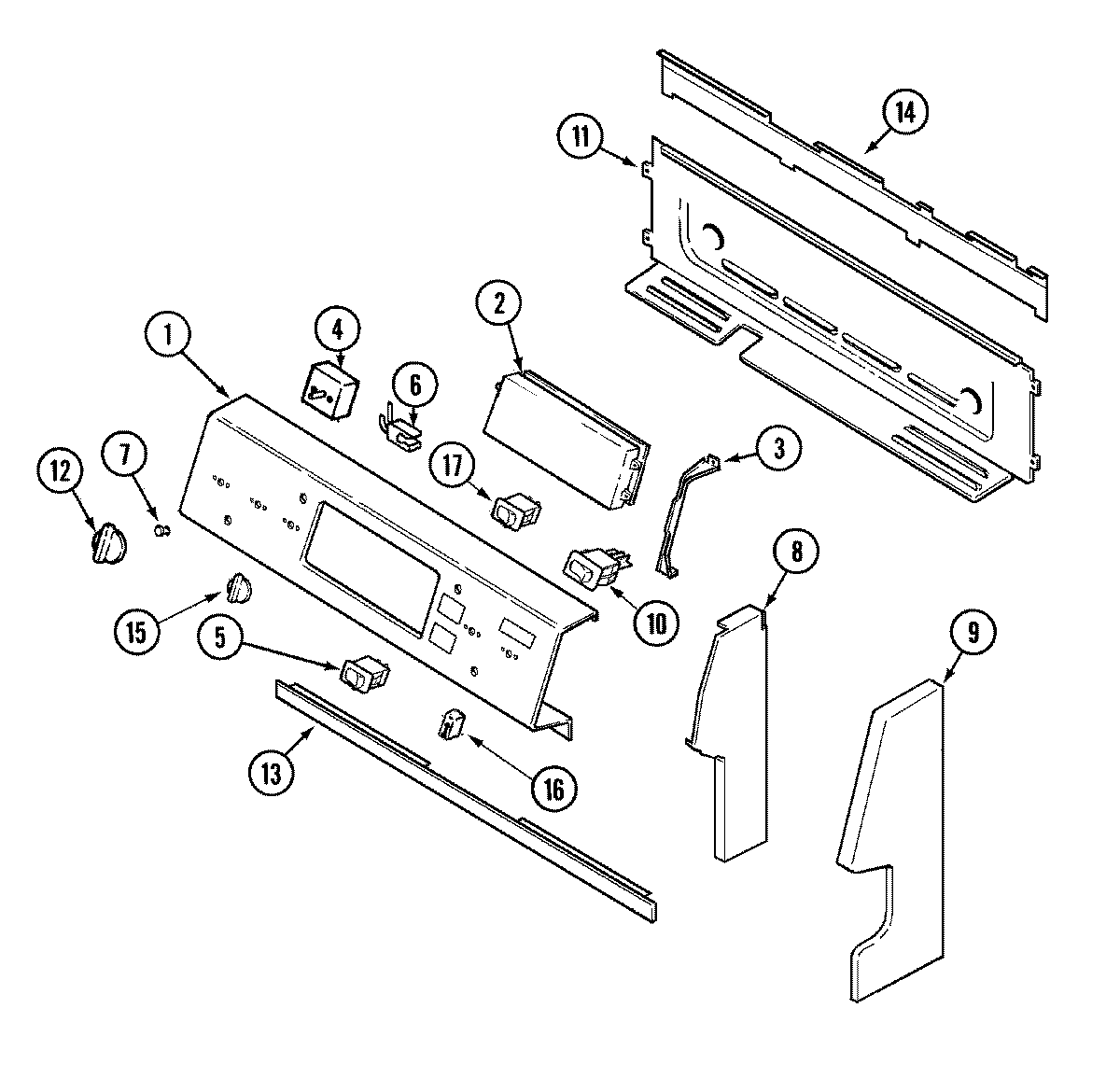

MER5880BAS 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74006567
2MAY 74006206
2SCREW (6ABX.25-ZN)
3WPY706189 Whirlpool Stove Screw
3MAY 74003627
4WP74003122 Whirlpool Infinite Switch Assembly (Dual)
4MAY 74006589
4SCREW
4WP7403P239-60 Whirlpool Oven Switch
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP74004153 Whirlpool Indicator Light
7WP7730P011-60 Whirlpool Indicator Lens
8MAY 74005393
8MAY 74005392
9WP98008545 Whirlpool Screw
9MAY 74002432
9MAY 74003606
9MAY 74003605
10MAY 74006467
11MAY 74003372
12KNOB (BLK)
13MAY 74003374
14SCREW
14MAY 74006376
15MAY 74006578
16WP903115 Whirlpool Dishwasher Indicator Light
17MAY 74003363
