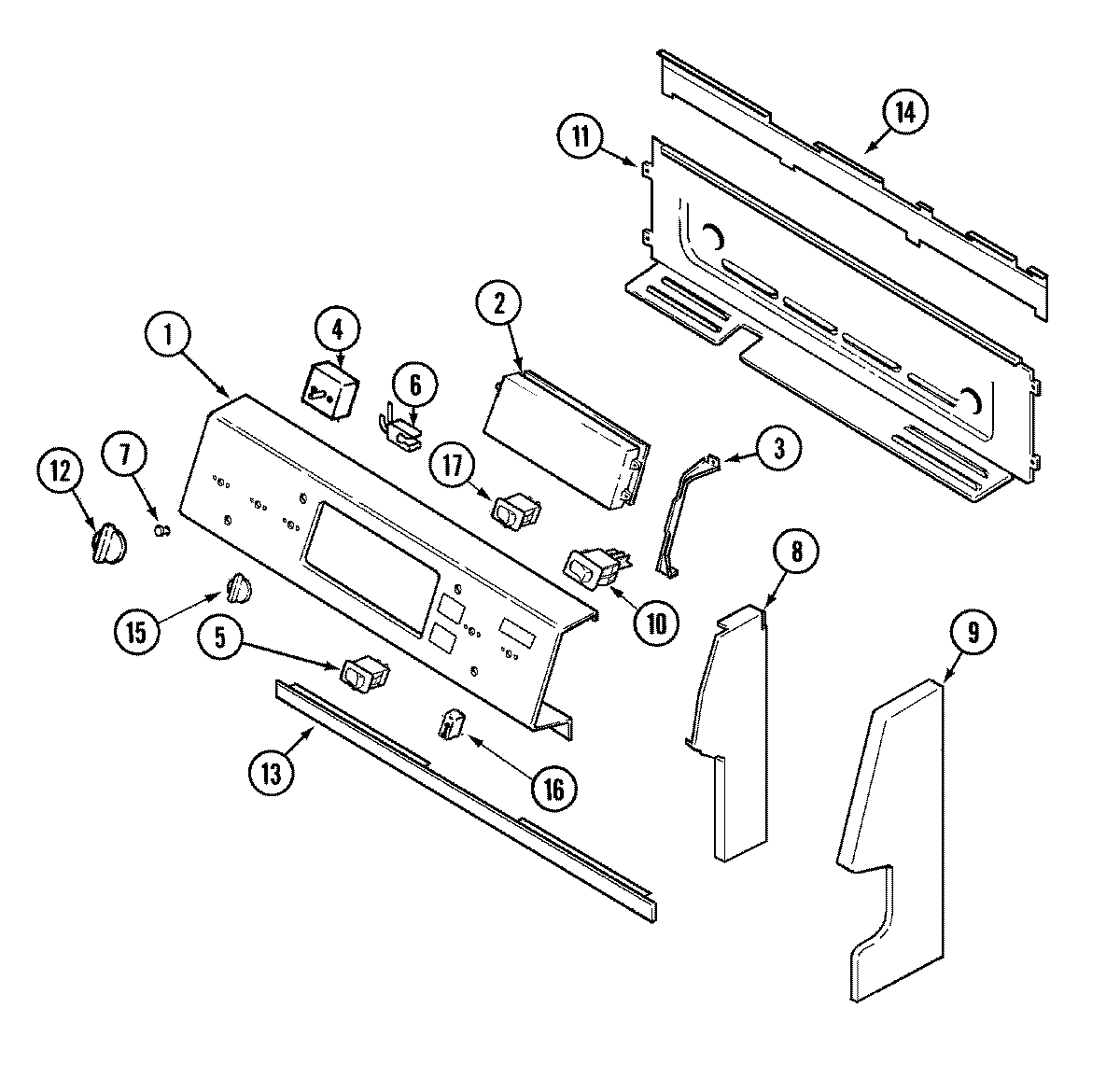

MER5880BAW 02 – CONTROL PANEL

MER5880BAW 02 – CONTROL PANEL

Written by

in

MER5880BAW 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74006566
2MAY 74006204
2SCREW (6ABX.25-ZN)
3MAY 74003627
3MAY 7101P348-60
4WP74003122 Whirlpool Infinite Switch Assembly (Dual)
4MAY 74006589
4SCREW
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
4WP7403P239-60 Whirlpool Oven Switch
6WP74004153 Whirlpool Indicator Light
7WP7730P011-60 Whirlpool Indicator Lens
8MAY 74005392
8MAY 74005393
9WP98008544 Whirlpool Screw Assembly
9MAY 74003607
9MAY 74002451
9MAY 74003608
10MAY 74006468
11MAY 74003372
12WP74003611 Whirlpool Oven White Knob
13MAY 74003374
14MAY 74006376
14SCREW
15MAY 74006577
16WP903115 Whirlpool Dishwasher Indicator Light
1774008717 Whirlpool White Rocker Switch
