MER6549BAW 01 – BODY
Written by
in

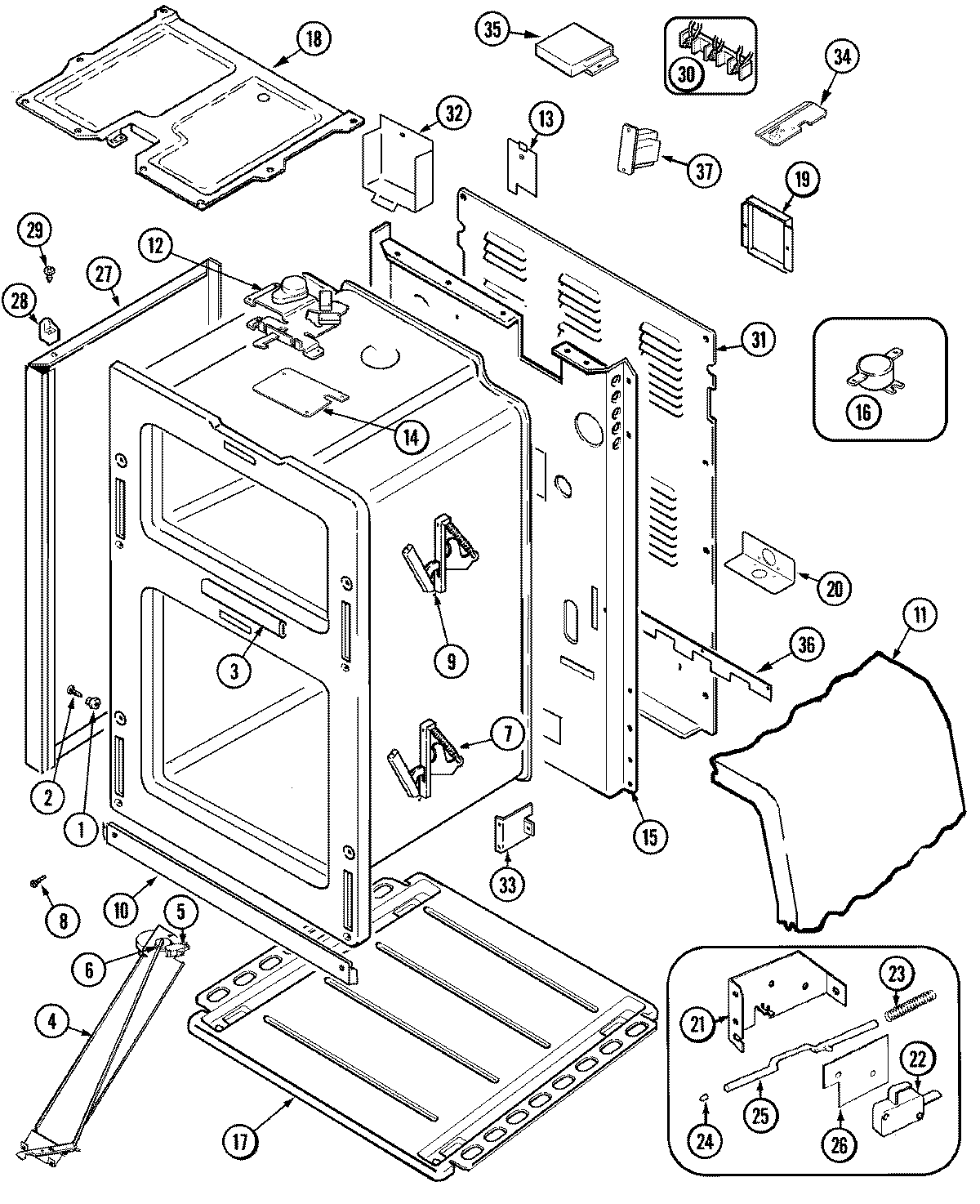

MER6549BAW 01 – BODY
Products
Position
Product
1
MAY 8004P024-60
2
W11693756 Whirlpool Screw Assembly
3
74004518 Whirlpool Frame Front Seal
4
MAY 74005485
5
MAY 74005532
6
MAY 74005531
7
HINGE-OVEN DOOR
9
MAY 74004523
9
SCREW (10-24X5/16-NI)
10
WP98008544 Whirlpool Screw Assembly
10
MAY 74007479
10
MAY 74004525
11
MAY 74004520
11
MAY 74004526
12
74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
12
MAY 74005495
13
MAY 74005484
14
MAY 74005496
15
MAY 74006550
16
WP74004530 Whirlpool Limit Switch
17
MAY 74007449
17
MAY 74004828
18
MAY 74005505
19
MAY 4005F427-51
20
W10190166 Whirlpool Service Bracket
21
BRACKET, SWITCH ACTUATOR
21
WPY706189 Whirlpool Stove Screw
22
MAY 7101P330-60
24
MAY 74001631
25
ROD, DOOR LIGHT SWITCH
26
MAY 74001872
27
MAY 74003236
28
SPACER, MAIN TOP (RT)
28
SPACER, MAIN TOP (LT)
29
MAY 7101P313-60
30
WPW10245259 Whirlpool Terminal Block
30
MAY 74004532
31
MAY 74004576
32
MAY 74004577
33
MAY 74005499
33
MAY 74005500
34
MAY 74001598
35
MAY 74003479
35
SCREW
36
MAY 74005653
37
SCREW (8BX3/8-NI)
37
MAY 74006520
←
