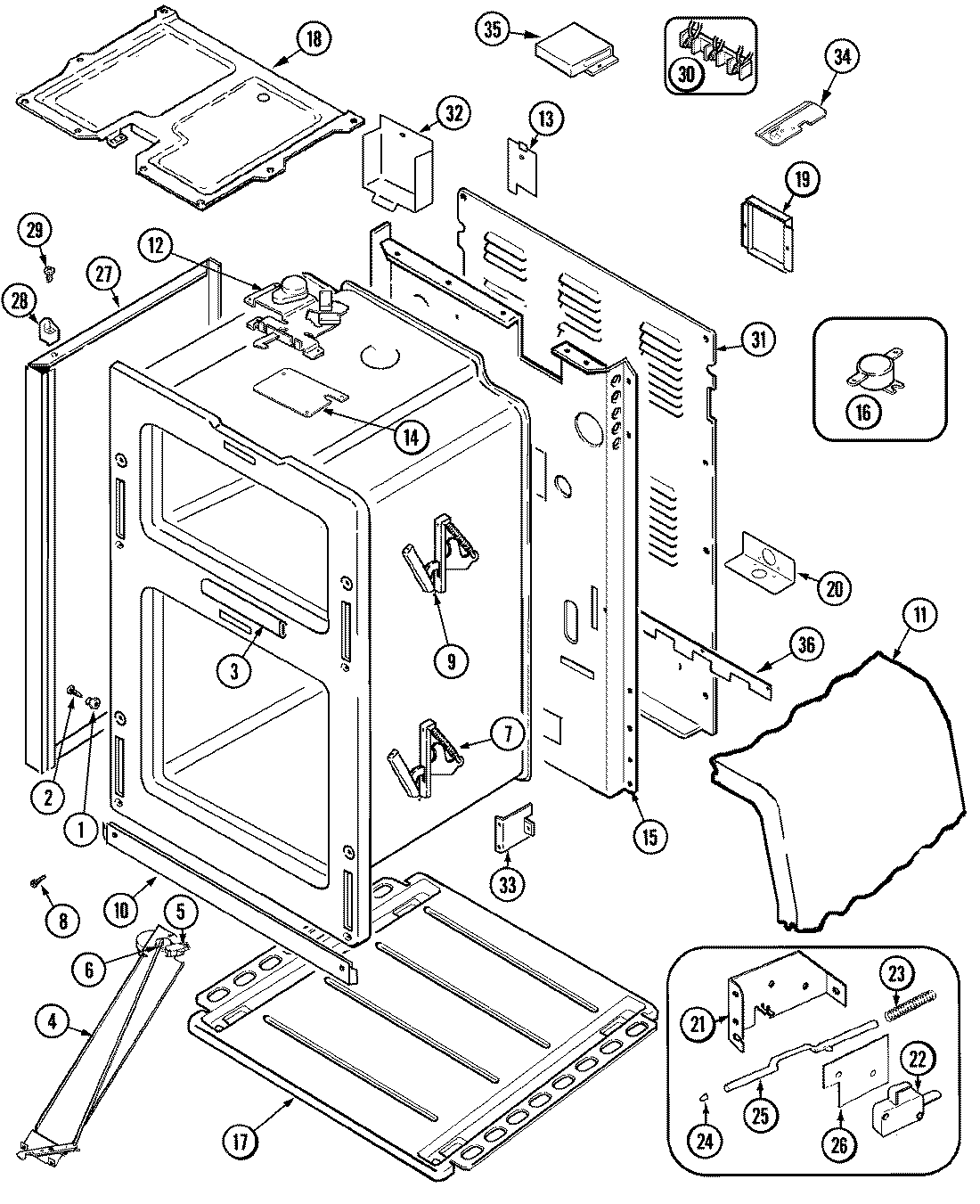

MER6550AAQ 01 – BODY

Products

Position	Product
1	MAY 8004P024-60
2	W11693756 Whirlpool Screw Assembly
3	74004518 Whirlpool Frame Front Seal
4	MAY 74005485
5	MAY 74005532
6	MAY 74005531
7	HINGE-OVEN DOOR
9	MAY 74004523
9	SCREW (10-24X5/16-NI)
10	WP74009541 Whirlpool Screw Assembly
10	MAY 74005239
11	MAY 74004520
11	MAY 74004526
12	MAY 74005495
12	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
13	MAY 74005484
14	MAY 74005496
15	MAY 74002334
15	MAY 74005497
16	WP74004530 Whirlpool Limit Switch
17	MAY 74004828
18	MAY 74005505
19	MAY 4005F427-51
20	W10190166 Whirlpool Service Bracket
21	BRACKET, SWITCH ACTUATOR
21	WPY706189 Whirlpool Stove Screw
22	MAY 7101P330-60
24	MAY 74001631
25	ROD, DOOR LIGHT SWITCH
26	MAY 74001872
27	MAY 74004965
28	SPACER, MAIN TOP (RT)
28	SPACER, MAIN TOP (LT)
29	MAY 7101P313-60
30	MAY 74004532
30	WPW10245259 Whirlpool Terminal Block
31	MAY 74004576
32	MAY 74004577
33	MAY 74005499
33	MAY 74005500
34	MAY 74001598
35	SCREW
35	MAY 74003479
36	MAY 74005653
