MER6550ACW 04 – DOOR (UPPER)

MER6550ACW 04 – DOOR (UPPER)

Written by

in

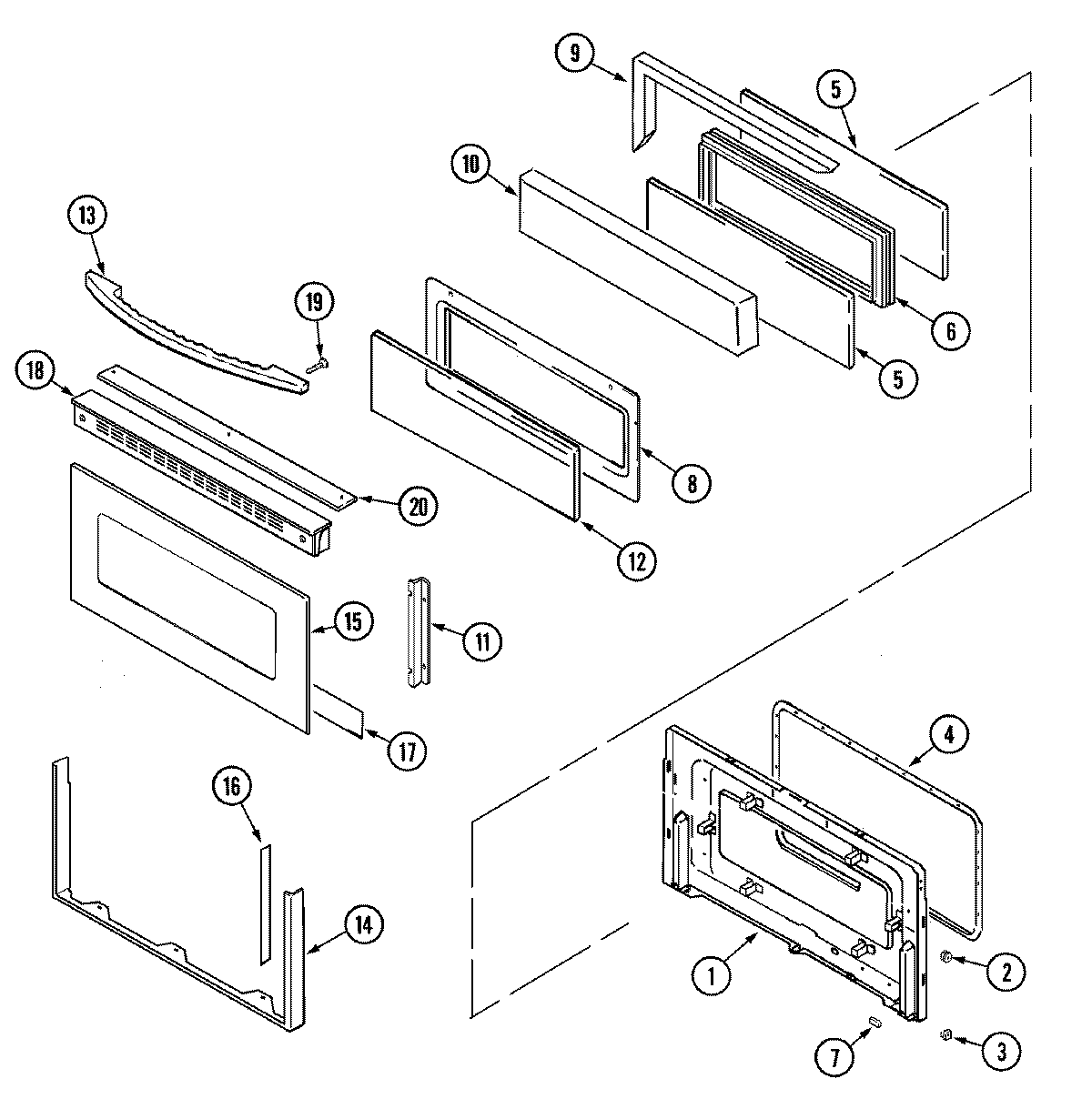

MER6550ACW 04 – DOOR (UPPER)

Products

PositionProduct
1MAY 74004564
2NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4WP7201P091-60 Whirlpool Door Gasket
5MAY 74004566
6MAY 74004567
7MAY 8010P085-60
8MAY 74004568
9MAY 74004569
10INSULATION, DOOR (3 X 8.7)
11MAY 74004592
13MAY 74003620
14MAY 74004573
15MAY 74004575
15MAY 74005577
16MAY 74003660
17MAY 74004593
18WP74003653 Whirlpool Door Trim
18WP98008544 Whirlpool Screw Assembly
19WP179051 Whirlpool Screw
19SCREW
20MAY 7728P094-60
20MAY 74001278
