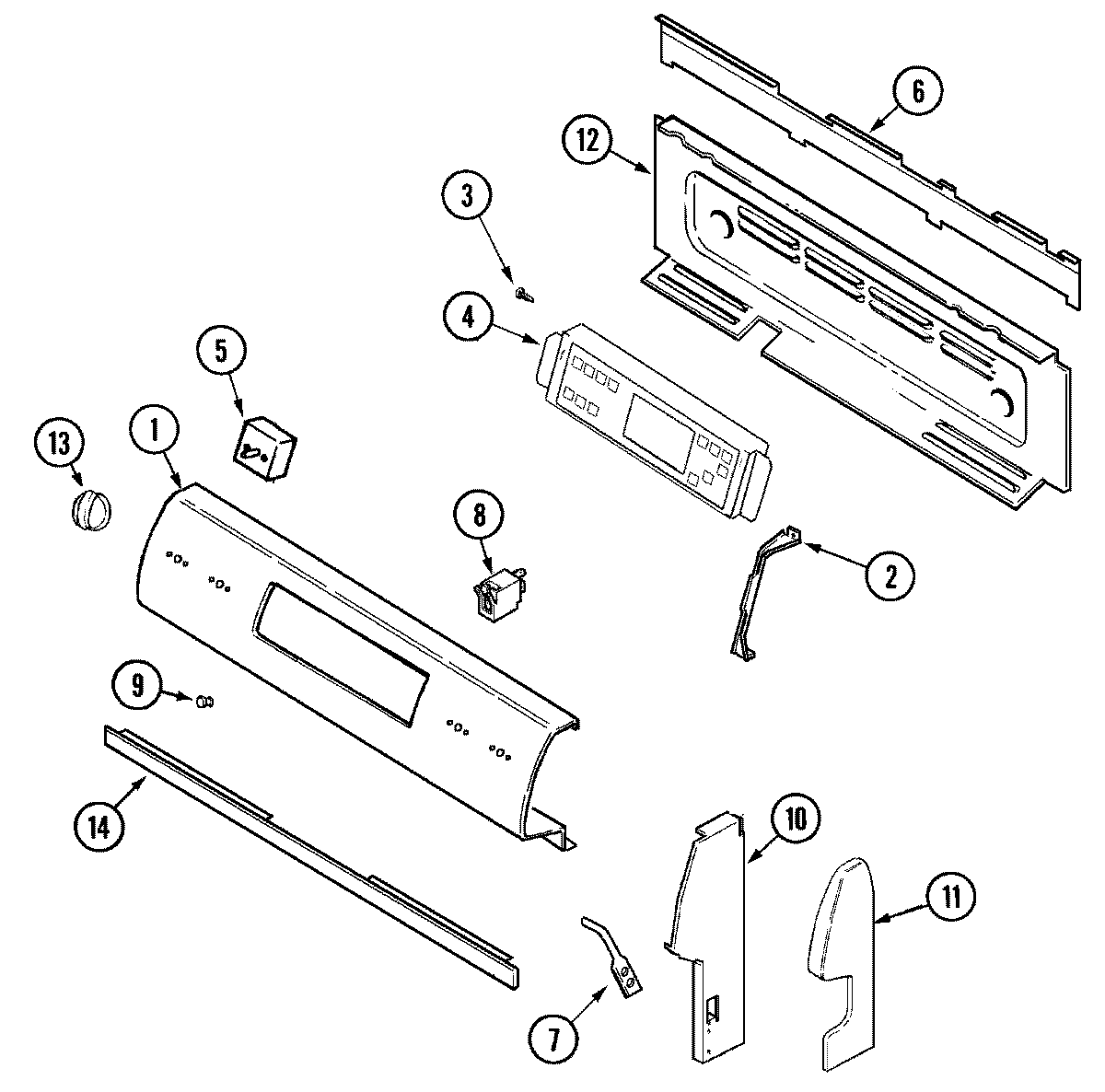

MER6550BAQ 02 – CONTROL PANEL

Products

Position	Product
1	MAY 74006558
2	MAY 74005388
2	MAY 7101P348-60
4	MAY 74006214
4	SCREW
5	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
5	WP7403P239-60 Whirlpool Oven Switch
5	SCREW
6	MAY 74006376
7	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
7	MAY 74003371
8	WP74004153 Whirlpool Indicator Light
9	WP7730P011-60 Whirlpool Indicator Lens
10	MAY 74005392
10	MAY 74005393
11	MAY 74005237
11	MAY 74004982
11	MAY 74005236
11	WP74009541 Whirlpool Screw Assembly
12	MAY 74004550
13	MAY 74005143
14	SCREW (8BX3/8-NI)
14	MAY 74003374
15	MAY 74004537
15	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
15	MAY 74005504
15	MAY 74005489
15	WP74003482 Whirlpool Auxiliary Relay
15	MAY 74005493
15	MAY 74005492
15	MAY 74004687
15	MAY 74009386
16	MAY 74005918
16	MAY 74005475
17	MAY 16010107
17	MAY 74005884
