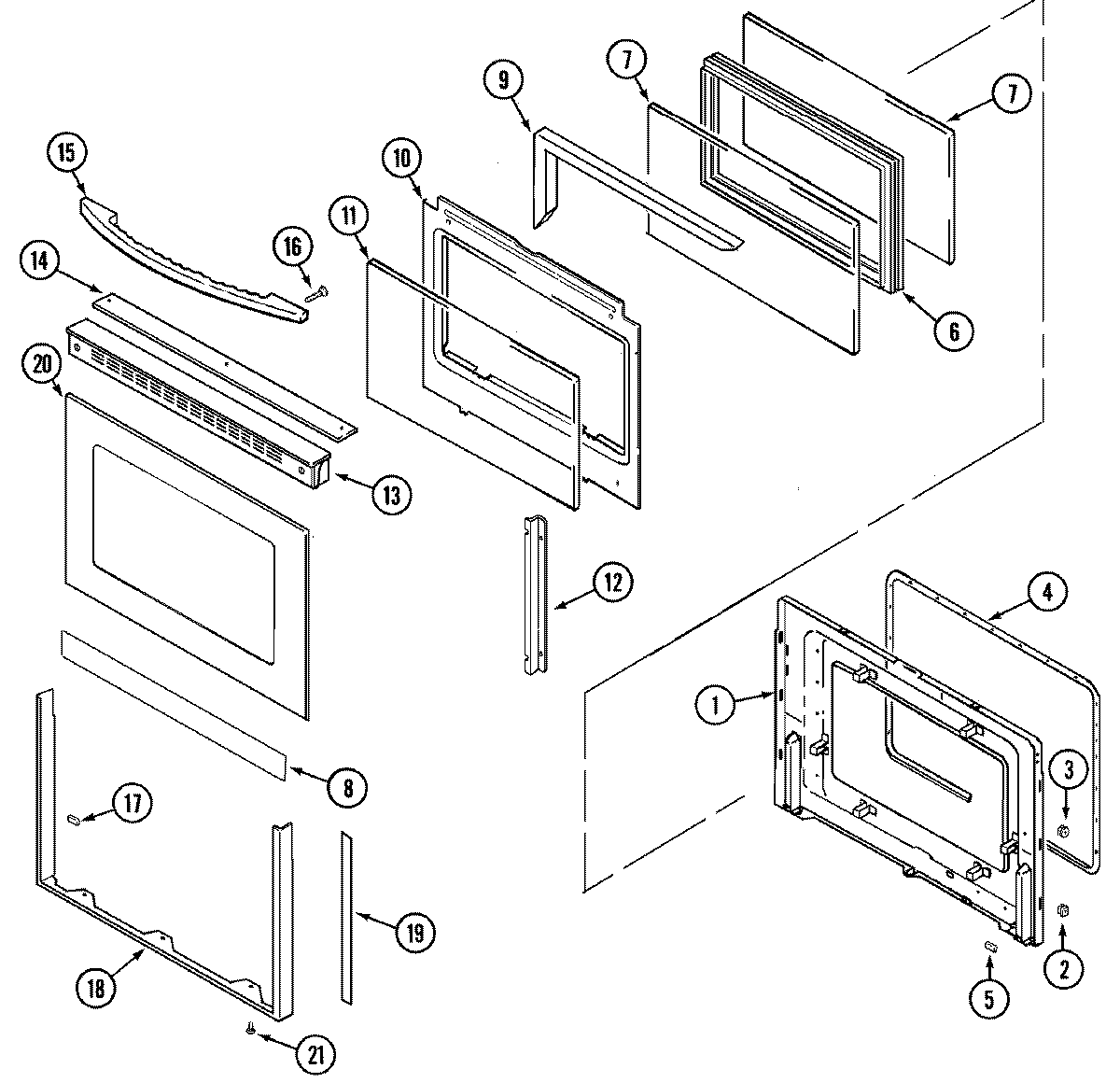

MER6550BAW 03 – DOOR (LOWER)

MER6550BAW 03 – DOOR (LOWER)

Written by

in

MER6550BAW 03 – DOOR (LOWER)

Products

PositionProduct
1MAY 74003642
2MAY 74003643
2NUT, SNAP (ROUND-BLK)
3NUT, SNAP (ROUND-WHT)
4GASKT-DOOR OVEN
5WP74005546 Whirlpool RU Spacer
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8TAPE, FOIL 29“ X 2“
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13MAY 74006633
14MAY 7728P094-60
15WP74006381 Whirlpool Door Handle
16WP74006515 Whirlpool Washer Screw
18MAY 74004325
18WP98008544 Whirlpool Screw Assembly
19WP74004224 Whirlpool Tape
20MAY 74006636
21SCREW
