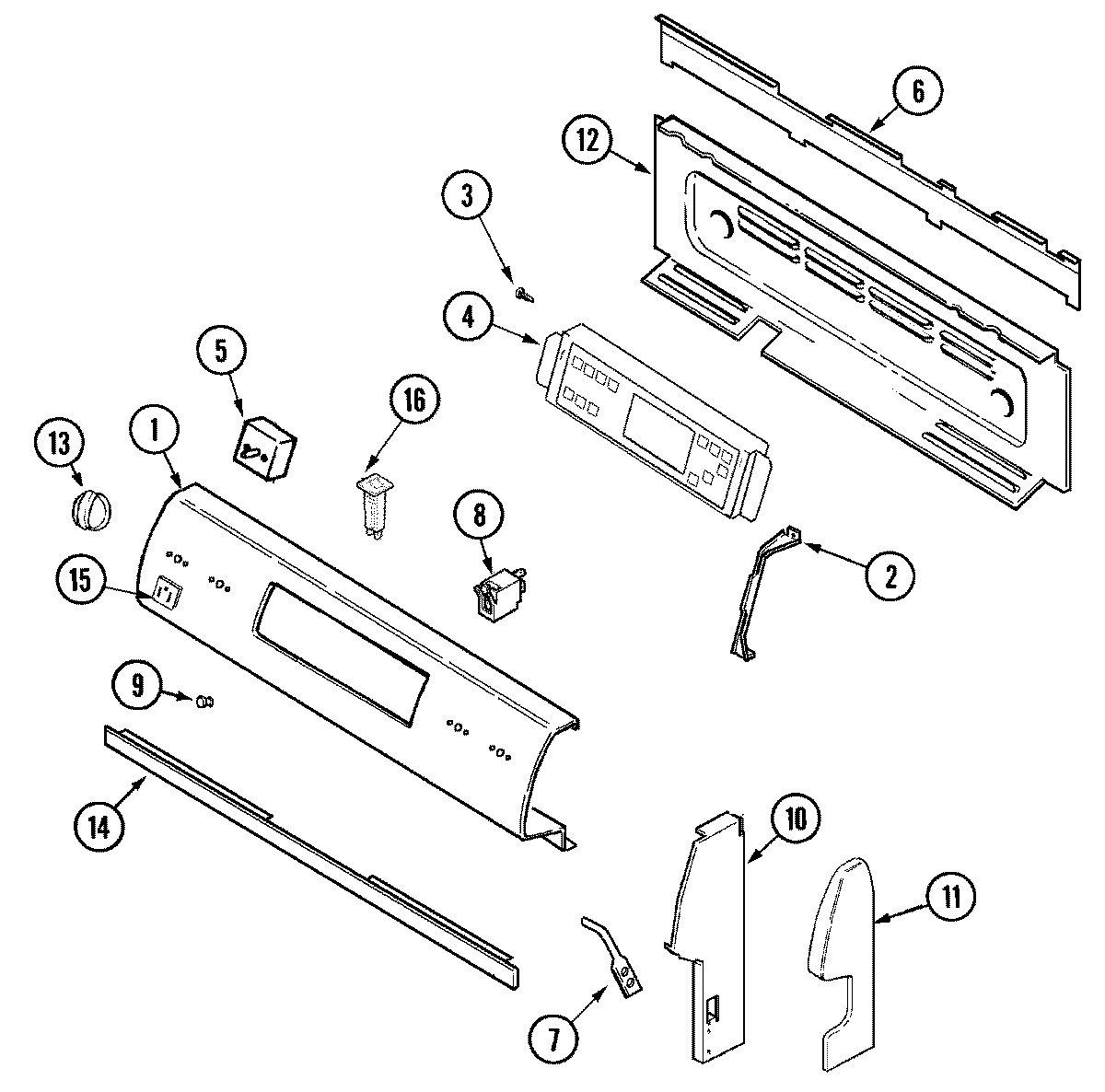

MER6550BCQ 02 – CONTROL PANEL

Products

Position	Product
1	MAY 74006623
2	MAY 74005388
2	MAY 7101P348-60
4	MAY 74006214
4	SCREW
5	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
5	WP7403P239-60 Whirlpool Oven Switch
5	SCREW
6	MAY 74006376
7	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
7	MAY 74003371
8	WP74004153 Whirlpool Indicator Light
9	WP7730P011-60 Whirlpool Indicator Lens
10	MAY 74005393
10	MAY 74005392
11	MAY 74004982
11	MAY 74005237
11	WP74009541 Whirlpool Screw Assembly
11	MAY 74005236
12	MAY 74004550
13	MAY 74005143
14	SCREW (8BX3/8-NI)
14	MAY 74003374
15	MAY 74005144
16	MAY 71003070
17	MAY 74004687
17	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17	MAY 74005516
17	MAY 74005492
17	MAY 74007369
17	MAY 74005515
17	MAY 74005493
17	MAY 74004537
18	MAY 74005475
18	MAY 71002055
19	MAY 74005884
19	MAY 74005885
19	MAY 16010107
