MER6550BCQ 04 – DOOR (UPPER) – Aparts

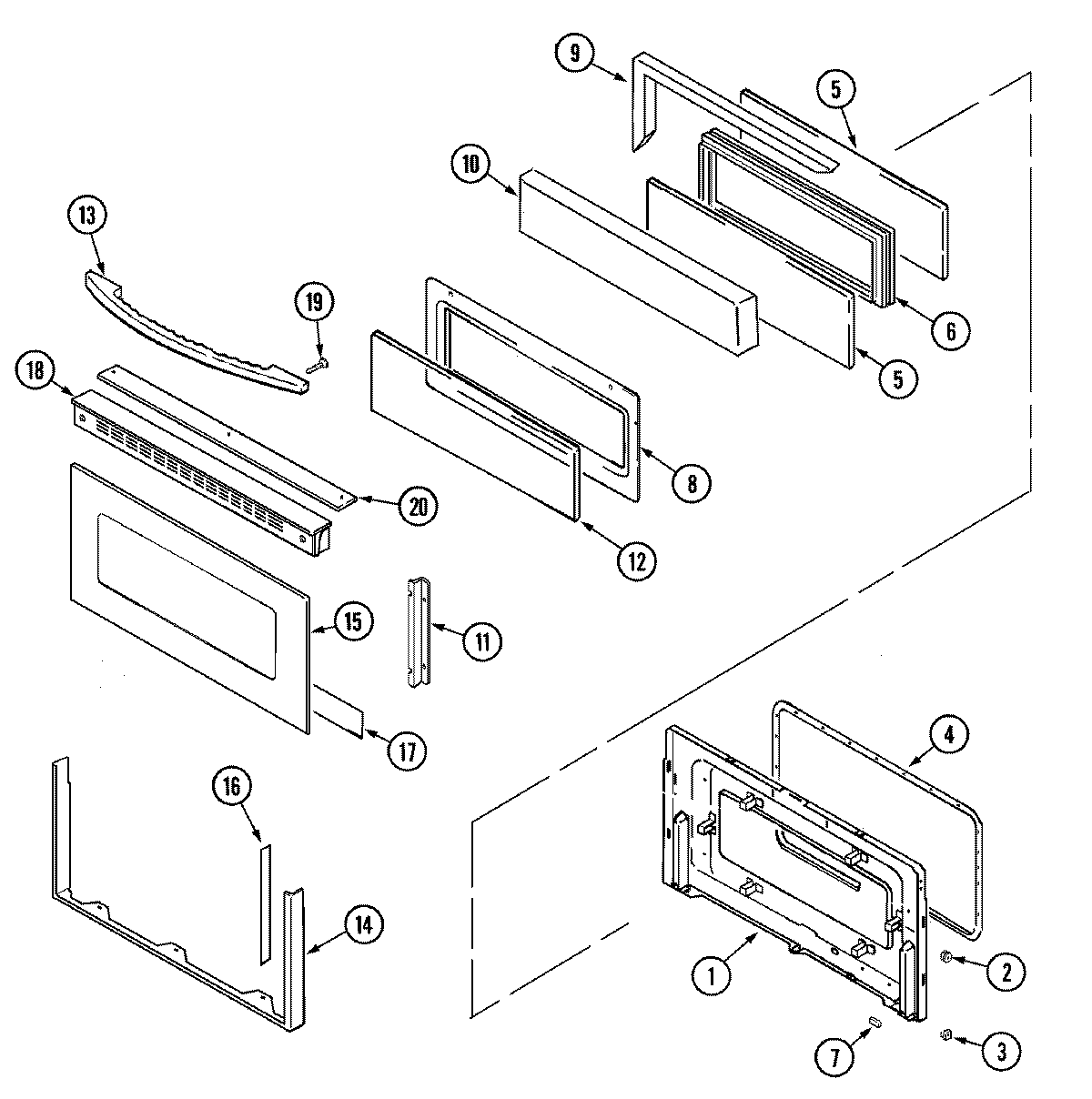

MER6550BCQ 04 – DOOR (UPPER)

Products

Position	Product
1	MAY 74004564
2	NUT, SNAP (ROUND-WHT)
3	NUT, SNAP (ROUND-BLK)
4	WP7201P091-60 Whirlpool Door Gasket
5	MAY 74004566
6	MAY 74004567
7	WP74005546 Whirlpool RU Spacer
8	MAY 74004568
9	MAY 74004569
10	INSULATION, DOOR (3 X 8.7)
11	MAY 74004592
13	MAY 74006377
14	MAY 74005242
15	MAY 74006632
16	MAY 74003660
17	MAY 74004593
18	MAY 74006634
19	WP74006515 Whirlpool Washer Screw
19	SCREW
20	MAY 74004978
20	WP74009541 Whirlpool Screw Assembly
