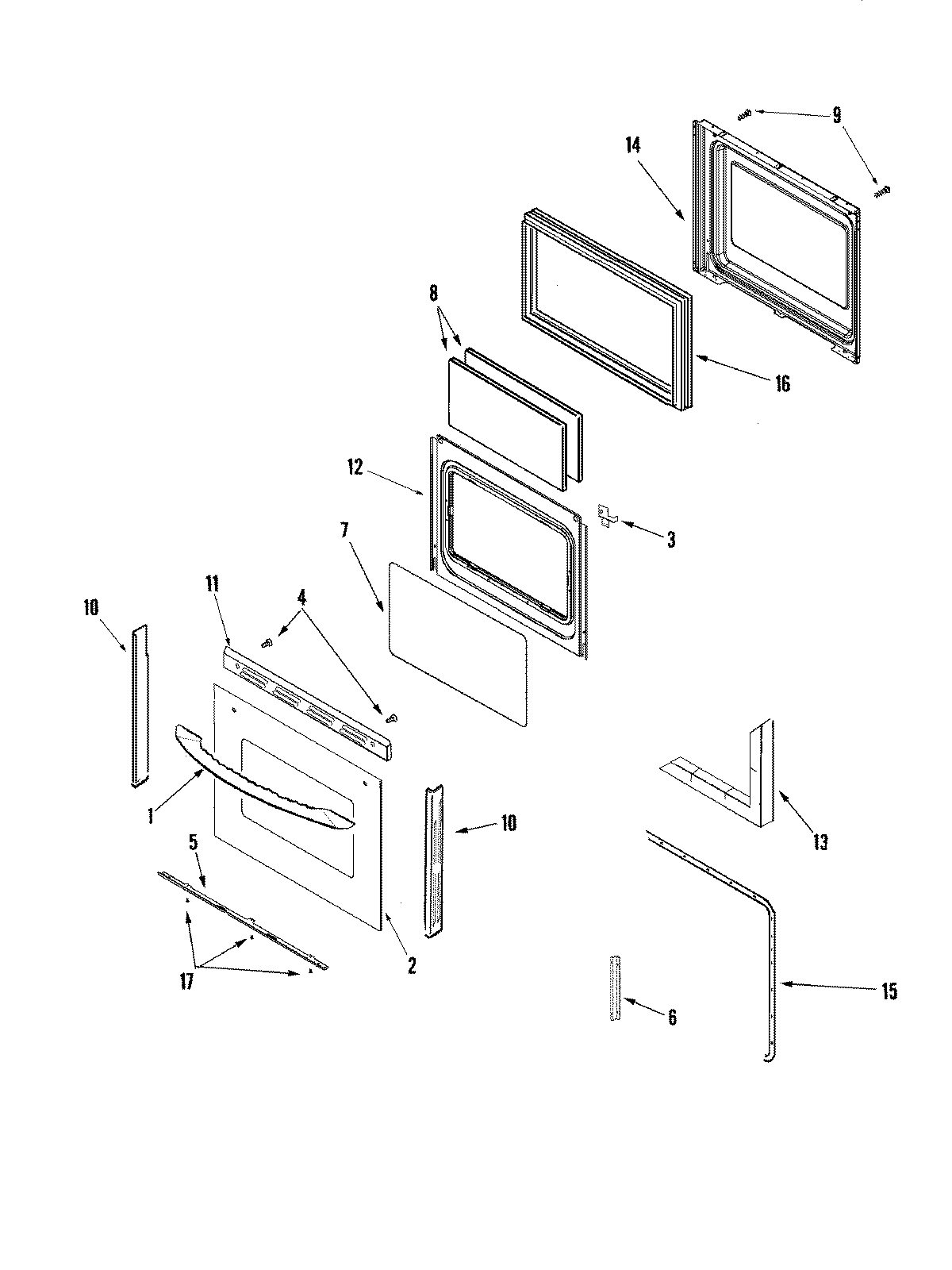

MER6555AAB 03 – DOOR (LOWER)

MER6555AAB 03 – DOOR (LOWER)

Written by

in

MER6555AAB 03 – DOOR (LOWER)

Products

PositionProduct
1WP74011767 Whirlpool Door Handle
2MAY 12002395
33801F831-45 Whirlpool Bracket Assembly
3WP74005546 Whirlpool RU Spacer
3SCREW (10ABX1/4P TR ZN)
33801F832-45 Whirlpool Bracket
4WP74006515 Whirlpool Washer Screw
4WP74011675 Whirlpool Door Handle
5SUPPORT, GLASS (BLK)
6MAY 74003650
7GLASS, DOOR
7NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
874003645 Whirlpool Range Oven Door Inner Glass
10WP3608F117-70 Whirlpool Door Trim
10WP74009025 Whirlpool Double Sided Tape
10WP3608F116-70 Whirlpool Door Trim
11WP98008545 Whirlpool Screw
11TAPE, FOIL 29“ X 2“
11MAY 74009689
12MAY 7101P356-60
12MAY 74009502
123601F373-51 Whirlpool Baffle
13MAY 74004569
14NUT, SNAP (ROUND-BLK)
14NUT, SNAP (ROUND-WHT)
14LINING, DOOR
14MAY 74003642
15GASKT-DOOR OVEN
163801F886-51 Whirlpool Mounting Bracket
16SCREW, 8 X 1/2
16SCREW
16FRAME, GLASS
