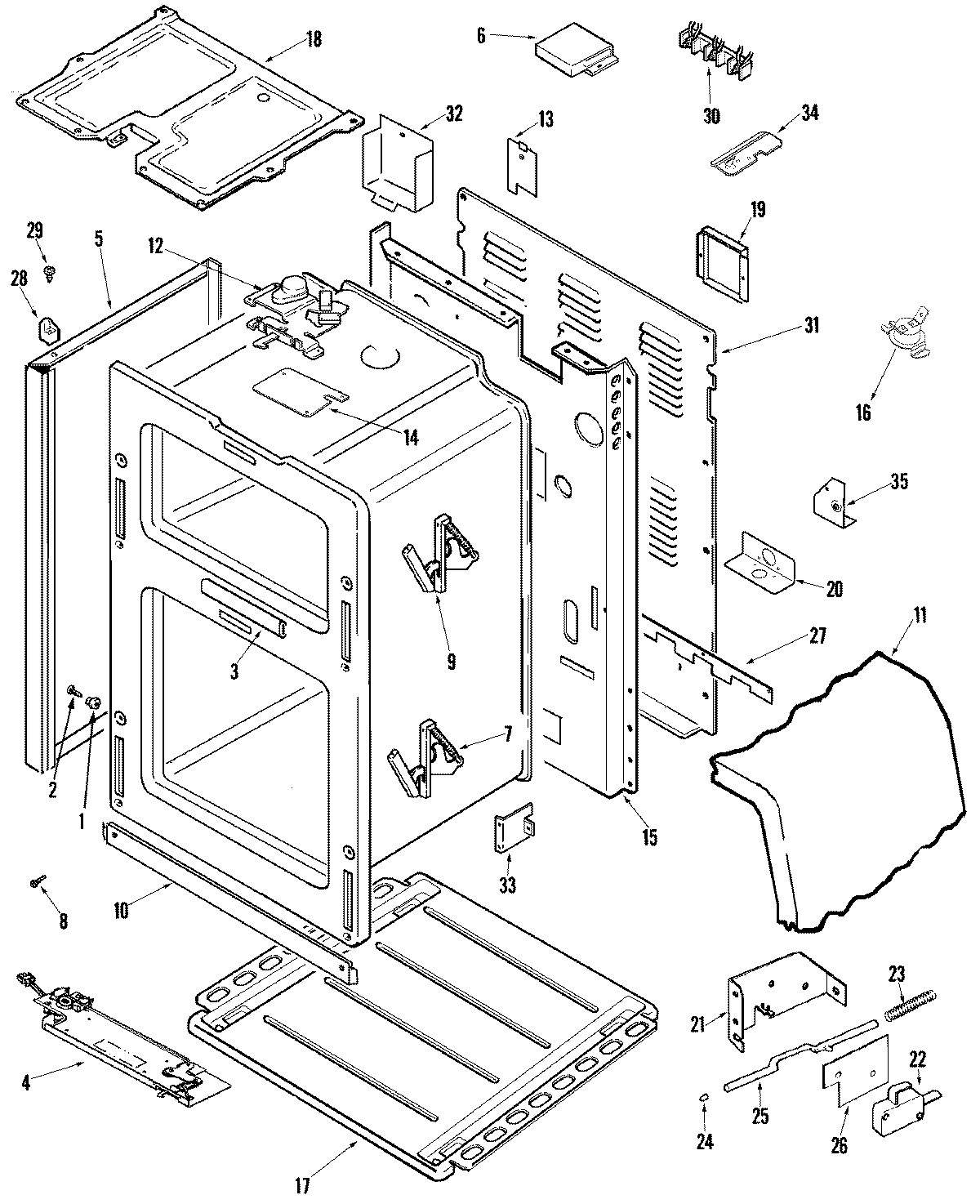

MER6555AAQ 01 – BODY

MER6555AAQ 01 – BODY

Written by

in

MER6555AAQ 01 – BODY

Products

PositionProduct
1MAY 8004P024-60
2MAY 74007476
374004518 Whirlpool Frame Front Seal
474007429 Whirlpool Door Latch Assembly Primary Lock
5MAY 74004965
6MAY 74003479
774011142 Whirlpool Stove Range Oven Door Hinge and Spring
9MAY 74007830
9SCREW (10-24X5/16-NI)
10MAY 74007480
10WP74009541 Whirlpool Screw Assembly
11MAY 74009979
11MAY 74007899
11MAY 74007336
11MAY 74007338
11MAY 74009968
1274003975 Whirlpool Screw P1 (8ABX3/8-BLK)
12MAY 74005495
13MAY 74007642
14MAY 74005496
15MAY 74009961
16MAY 74009969
17MAY 74009962
18WP74003976 Whirlpool Screw
18MAY 74007027
19MAY 4005F427-51
20W10190166 Whirlpool Service Bracket
21BRACKET, SWITCH ACTUATOR
21WPY706189 Whirlpool Stove Screw
22MAY 7101P330-60
24MAY 74001631
25ROD, DOOR LIGHT SWITCH
26MAY 74001872
27MAY 74005653
28SPACER, MAIN TOP (LT)
28SPACER, MAIN TOP (RT)
29MAY 7101P313-60
30MAY 74004532
30MAY 7401P038-60
31MAY 74004576
32MAY 74004577
33MAY 74005499
33MAY 74005500
34SCREW
34MAY 74001598
35MAY 74007446
35MAY 74007447
363823F015-51 Whirlpool Spacer
