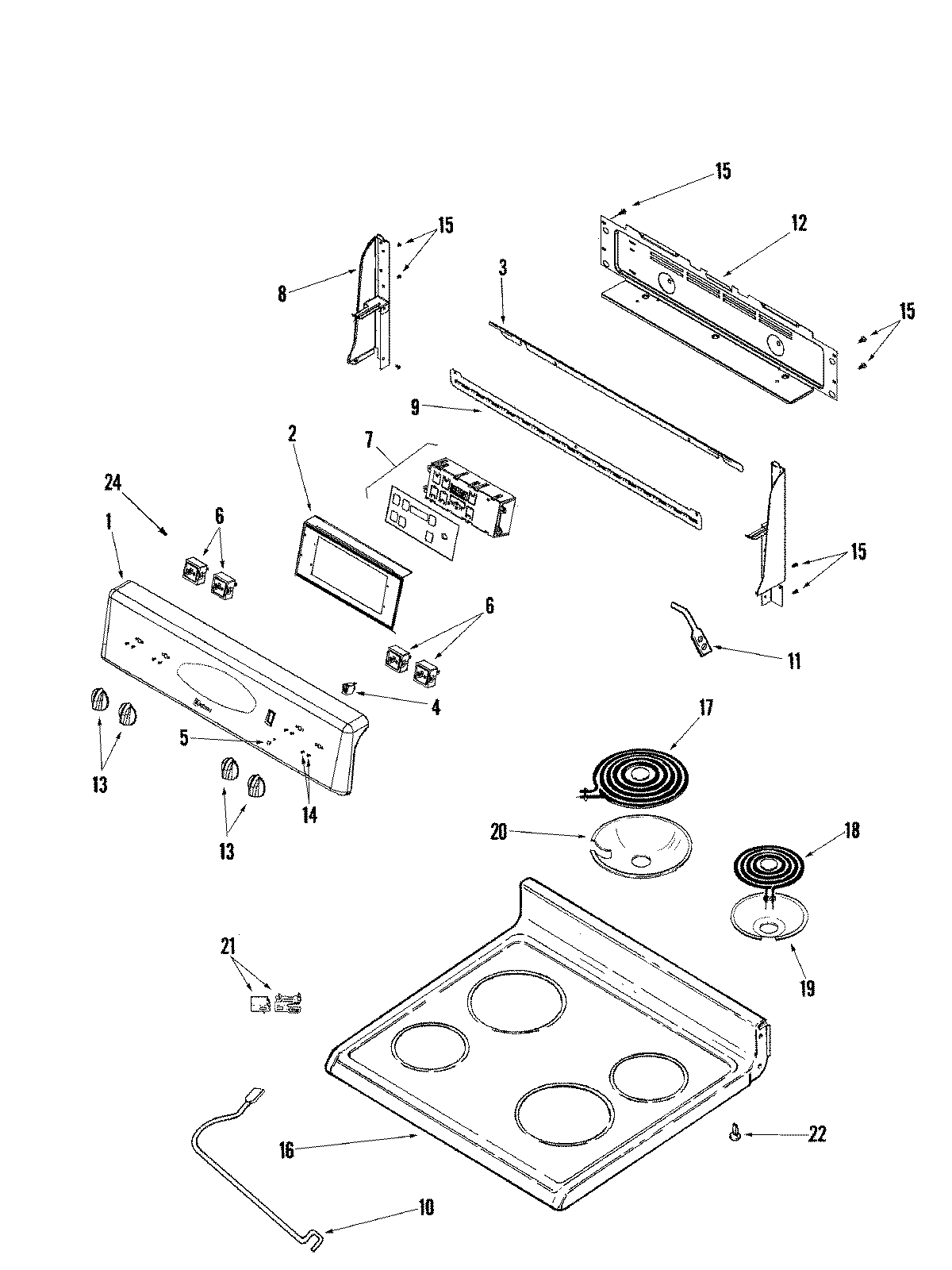

MER6555AAW 02 – CONTROL PANEL/TOP ASSEMBLY

MER6555AAW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER6555AAW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009973
2WP74003976 Whirlpool Screw
2BRACKET, CLOCK
3MAY 74009978
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7W10769079-includeCORE Whirlpool W10769079 Refrigerator Electronic Control Board + Core
7MAY 74009993
8MAY 74009669
8MAY 74009672
8WP98008544 Whirlpool Screw Assembly
9MAY 74009701
10MAY 74001256
10MAY 74004084
11MAY 74003371
1174003975 Whirlpool Screw P1 (8ABX3/8-BLK)
12MAY 74010804
12SCREW (8BX3/8-NI)
13WP74008947 Whirlpool Knob White
15SCREW
16MAY 74009515
16MAY 74009990
17WPW10345410 Whirlpool Surface Element
18MAY 74009977
18WPW10259868 Whirlpool Surface Heating Element
19W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
2112001676 Whirlpool Range Surface Burner Receptacle Kit
2274008761 Whirlpool Spacer Snap-In
