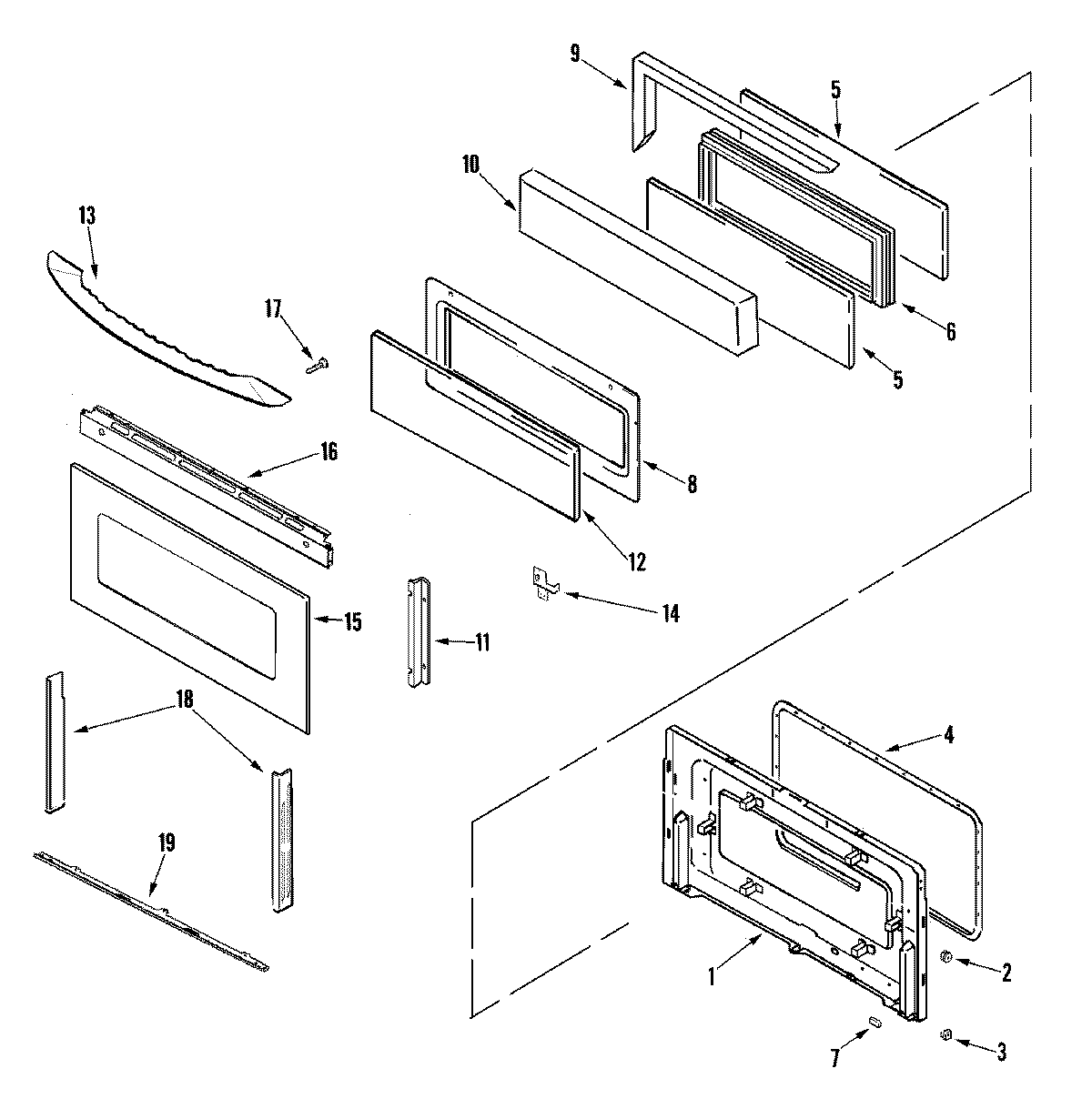

MER6555AAW 04 – DOOR (UPPER)

Products

Position	Product
1	MAY 74004564
2	NUT, SNAP (ROUND-WHT)
3	NUT, SNAP (ROUND-BLK)
4	WP7201P091-60 Whirlpool Door Gasket
5	MAY 74004566
6	MAY 74004567
8	MAY 74009976
9	MAY 74004569
10	INSULATION, DOOR (3 X 8.7)
11	MAY 74004592
12	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13	WP74011768 Whirlpool Door Handle
14	WP74005546 Whirlpool RU Spacer
14	SCREW (10ABX1/4P TR ZN)
14	3801F831-45 Whirlpool Bracket Assembly
14	3801F832-45 Whirlpool Bracket
15	MAY 12002455
16	WP3608F141-71 Whirlpool Door Trim
16	TAPE, FOIL 29`` X 2``
17	WP74006515 Whirlpool Washer Screw
18	WP74009014 Whirlpool Double Tape
18	MAY 74009747
18	WP98008544 Whirlpool Screw Assembly
18	MAY 74009748
19	WP3807F708-71 Whirlpool Support
19	SCREW
