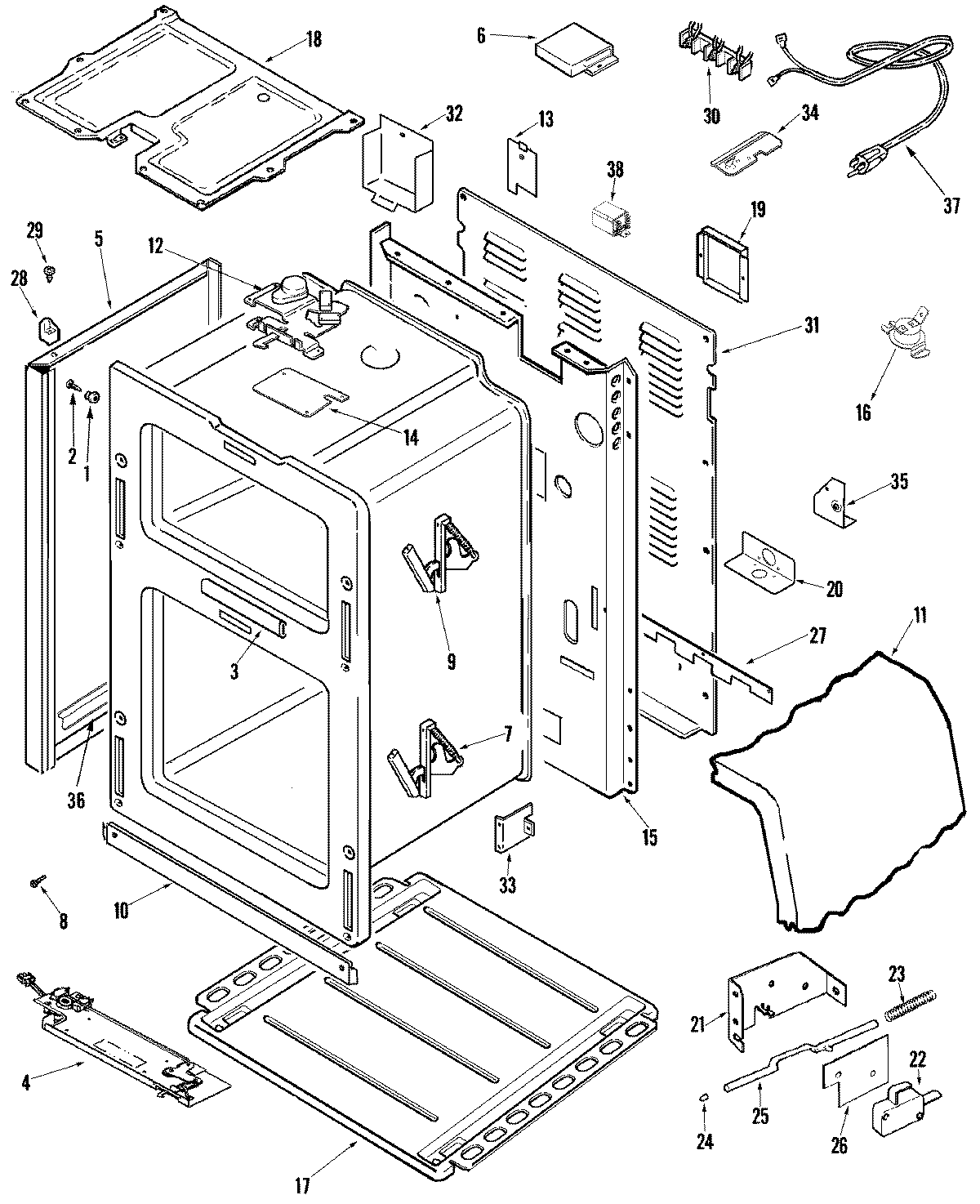

MER6555ACW 01 – BODY
Written by
in
MER6555ACW 01 – BODY
Products
Position
Product
1
MAY 8004P024-60
2
MAY 74007476
3
74004518 Whirlpool Frame Front Seal
4
74007429 Whirlpool Door Latch Assembly Primary Lock
5
MAY 74003236
6
MAY 74003479
7
74011142 Whirlpool Stove Range Oven Door Hinge and Spring
9
MAY 74007830
9
SCREW (10-24X5/16-NI)
10
WP98008544 Whirlpool Screw Assembly
10
MAY 74007479
11
MAY 74009968
11
MAY 74009979
11
MAY 74007899
11
MAY 74007338
11
MAY 74007336
12
74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
12
MAY 74005495
13
MAY 74007642
14
MAY 74005496
15
MAY 74009961
16
MAY 74009969
17
MAY 74009962
18
MAY 74007027
18
WP74003976 Whirlpool Screw
19
MAY 4005F427-51
20
W10190166 Whirlpool Service Bracket
21
BRACKET, SWITCH ACTUATOR
21
WPY706189 Whirlpool Stove Screw
22
MAY 7101P330-60
24
MAY 74001631
25
ROD, DOOR LIGHT SWITCH
26
MAY 74001872
27
MAY 74005653
28
SPACER, MAIN TOP (RT)
28
SPACER, MAIN TOP (LT)
29
MAY 7101P313-60
30
MAY 7401P038-60
30
MAY 74004532
31
MAY 74004576
32
MAY 74004577
33
MAY 74005499
33
MAY 74005500
34
MAY 74001598
34
SCREW
35
MAY 74007447
35
MAY 74007446
36
3823F015-51 Whirlpool Spacer
37
MAY 7402P050-60
38
RELAY, AUXILIARY (DPDT)
←
