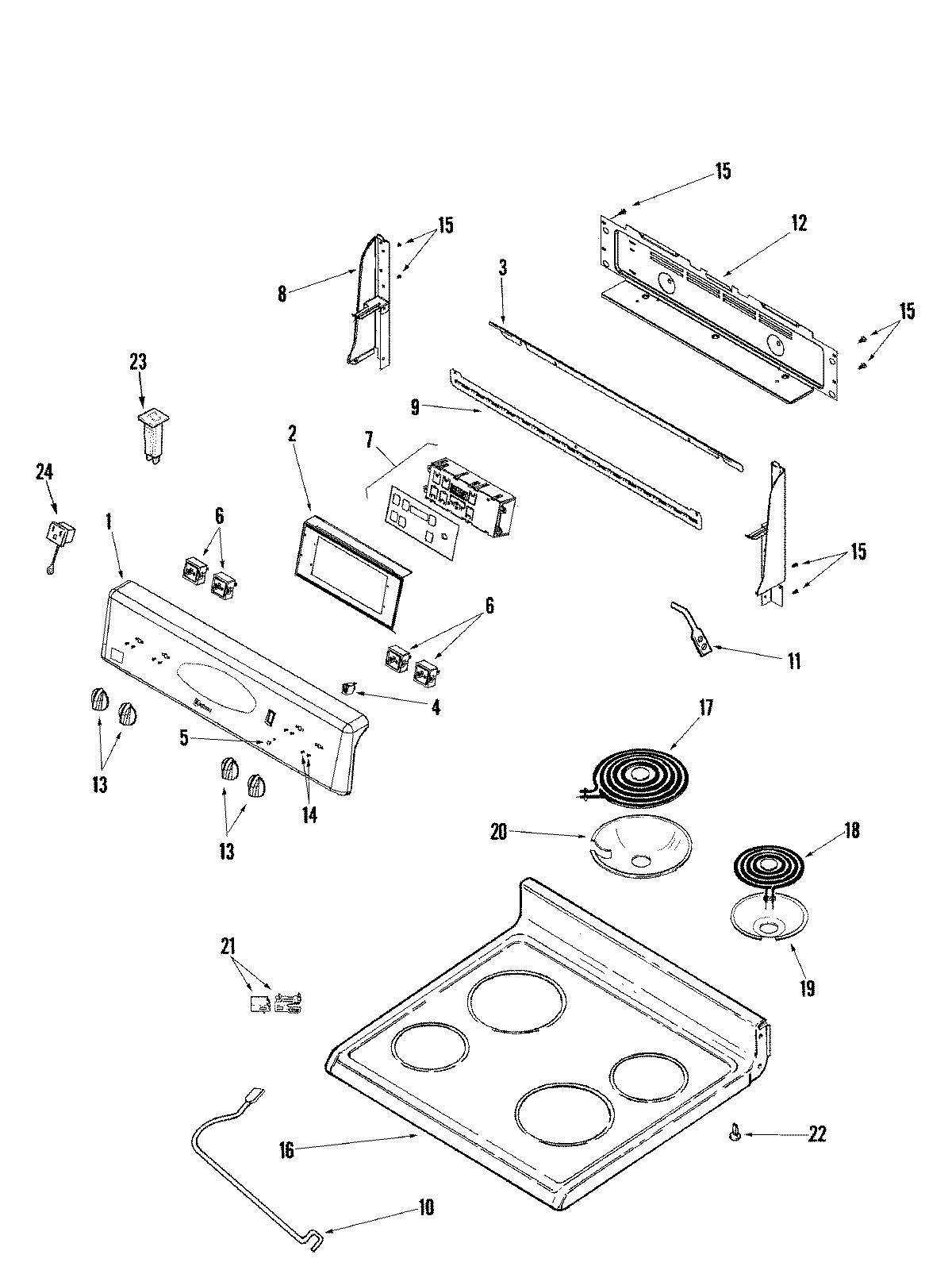

MER6555ACW 02 – CONTROL PANEL/TOP ASSEMBLY

MER6555ACW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER6555ACW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009973
2BRACKET, CLOCK
2WP74003976 Whirlpool Screw
3MAY 74009978
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
7W10769079-includeCORE Whirlpool W10769079 Refrigerator Electronic Control Board + Core
7MAY 74009993
8WP98008544 Whirlpool Screw Assembly
8MAY 74009669
8MAY 74009672
9MAY 74009701
10MAY 74004084
10MAY 74001256
1174003975 Whirlpool Screw P1 (8ABX3/8-BLK)
11MAY 74003371
12MAY 74010804
12SCREW (8BX3/8-NI)
13WP74008947 Whirlpool Knob White
15SCREW
16MAY 74009515
16MAY 74009990
17WPW10345410 Whirlpool Surface Element
18MAY 74009977
18WPW10259868 Whirlpool Surface Heating Element
19WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
20MAY Y04100393
2112001676 Whirlpool Range Surface Burner Receptacle Kit
2274008761 Whirlpool Spacer Snap-In
23MAY 71003069
24MAY 74009322
