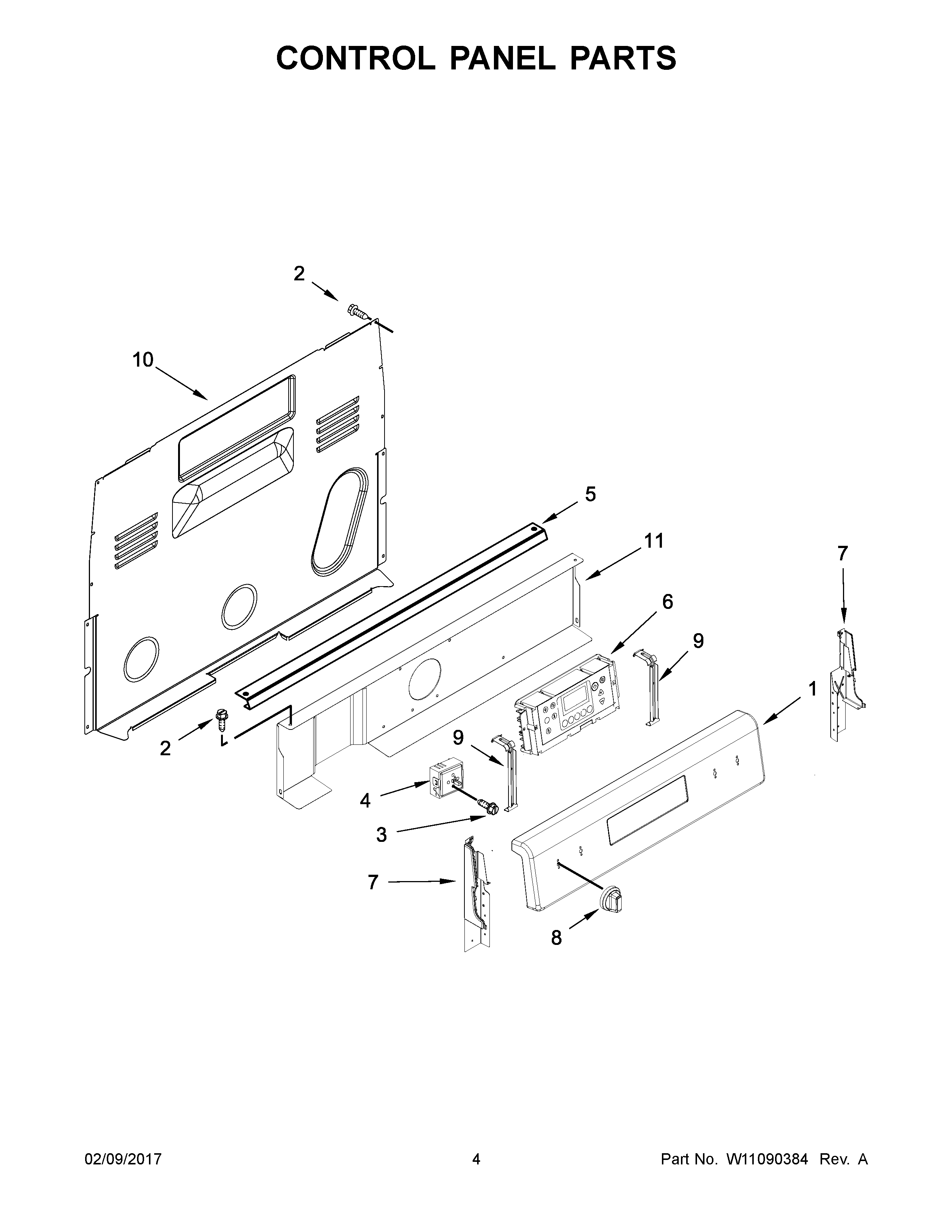

MER6600FB0 03 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1B	MAY W10885607
1A	MAY W10885608
1	MAY W10885609
2	SCREW
3	SCREW
4	SWITCH, INFINITE (DUAL) (LEFT FRONT)
4A	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4B	SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
5	BRACKET, CONSOLE MOUNTING
6A	MAY W10904686
6	MAY W10904688
7C	ENDCAP (WHITE (RIGHT))
7B	ENDCAP (BLACK (RIGHT))
7A	ENDCAP (WHITE (LEFT))
7	ENDCAP (BLACK (LEFT))
8A	MAY W10892250
8	MAY W10892251
8B	MAY W10858250
9	BRACKET, CONTROL
10	COVER, UPPER REAR
11	SHIELD, HEAT
