MER6600FB0 05 – DOOR PARTS

MER6600FB0 05 – DOOR PARTS

Written by

in

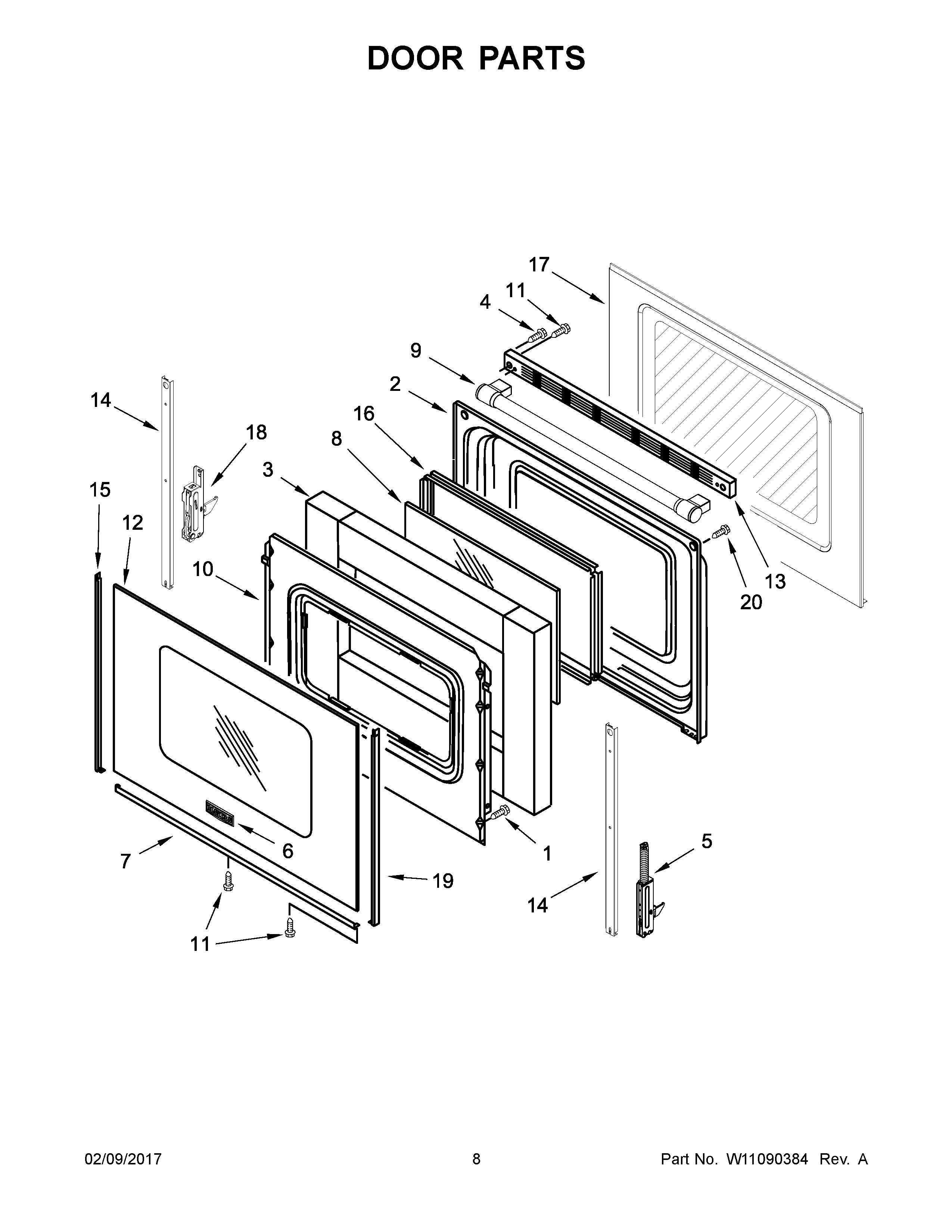

MER6600FB0 05 – DOOR PARTS

Products

Position	Product
1	SCREW
2	LINER, DOOR
3	INSULATION, DOOR STRIP
4	SCREW
5	HINGE, DOOR (PASSIVE)
6	BADGE
7	TRIM, LOWER (BLACK)
7A	TRIM, LOWER (WHITE)
8	GLASS, INNER
9B	HANDLE, OVEN DOOR (STAINLESS)
9A	HANDLE, OVEN DOOR (WHITE)
9	HANDLE, OVEN DOOR (BLACK)
10	RETAINER, INSULATION
11	SCREW
12	GLASS, OUTER DOOR (BLACK)
12A	GLASS, OUTER DOOR (WHITE)
13A	MAY W10875232
13	MAY W10875233
13B	MAY W11047800
14	STRAP, DOOR
15A	TRIM, SIDE (WHITE (LEFT))
15	TRIM, SIDE (BLACK (LEFT))
16	FRAME, GLASS
17	MAY W10861544
18	HINGE, ACTIVE (WITH SPRING)
19A	TRIM, SIDE (WHITE (RIGHT))
19	TRIM, SIDE (BLACK (RIGHT))
20	SCREW
