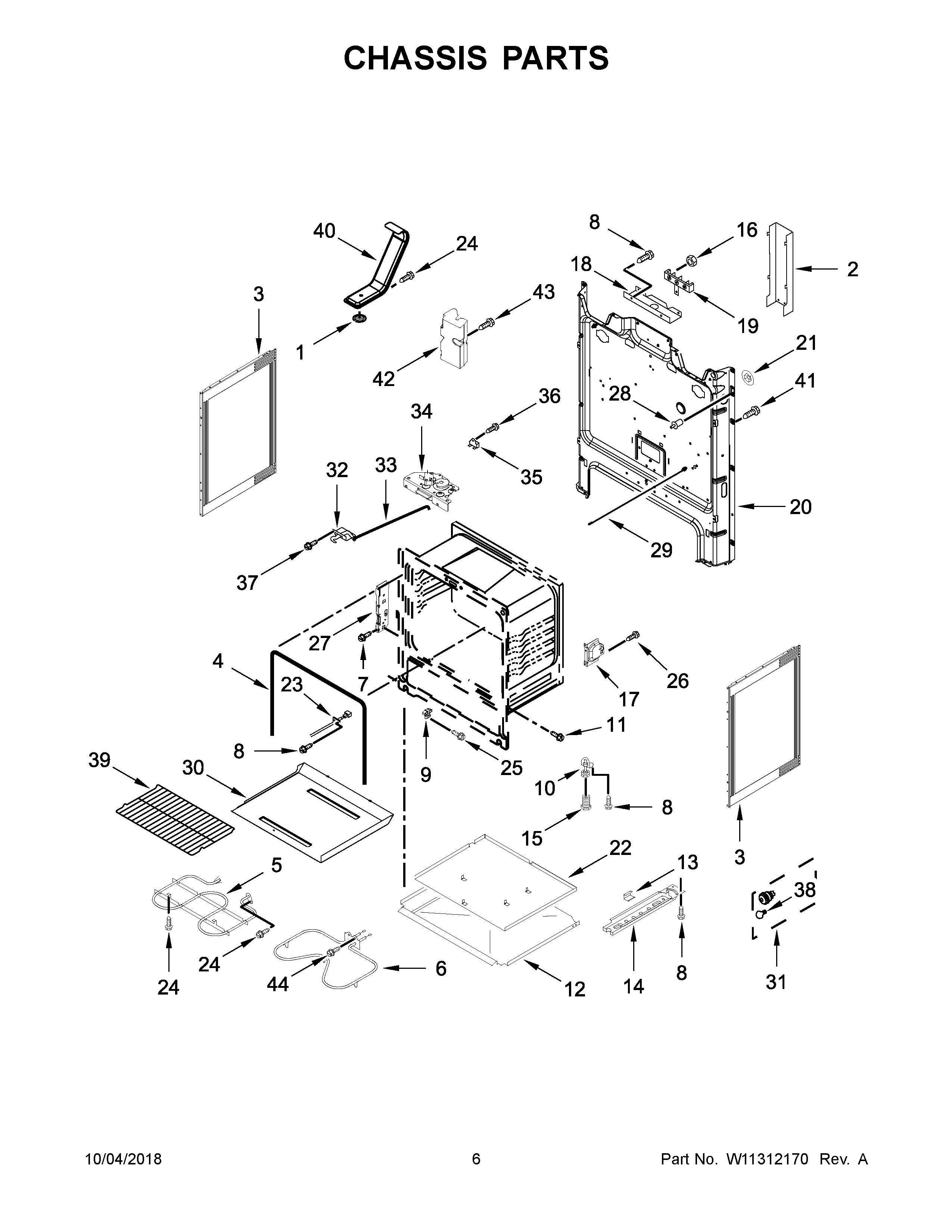

MER6600FB2 04 – CHASSIS PARTS

Products

Position	Product
NI	CLIP, WIRE
NI	CARD, INSULATOR
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, WRAP
NI	INSULATION, FLUE
NI	INSULATION, BACK
1	SCREEN, VENT
2	COVER, TERMINAL BLOCK
3A	PANEL, SIDE (WHITE)
3	PANEL, SIDE (BLACK)
4	SEAL, DOOR
5	ELEMENT, BROIL
6	ELEMENT, BAKE
7	MAY W10031780
8	SCREW
9	GLIDE, DRAWER FRONT
10	ASSEMBLY, FRONT FOOT
11	SCREW
12	TRAY, INSULATION
13	CLIP, PANEL
14A	ASSEMBLY, BASE RAIL (RIGHT)
14	ASSEMBLY, BASE RAIL (LEFT)
15	FOOT, LEVELING
16	NUT
17	CLIP, OVEN SUPPORT
18	BRACKET, SERVICE
19	BLOCK, TERMINAL
20	BACK, MAIN
21	MAY 3400968
22	SHIELD, HEAT
23	SENSOR, OVEN
24	SCREW
25	MAY 3400080
26	SCREW
27	RECEIVER, HINGE
28	SWITCH, DOOR
29	ROD, DOOR SWITCH
30	TRAY, HIDDEN BAKE
31	MAY W11175594
32	ASSEMBLY, DOOR LATCH (FRONT)
33	ROD, LATCH
34	ASSEMBLY, DOOR LATCH (REAR)
35	FUSE, THERMAL
36	SCREW
37	SCREW
38	BULB, HALOGEN 40 WATTS
39	RACK, OVEN
40	TUBE, VENT
41	SCREW
42	COUNTERWEIGHT
43	SCREW
44	SCREW
