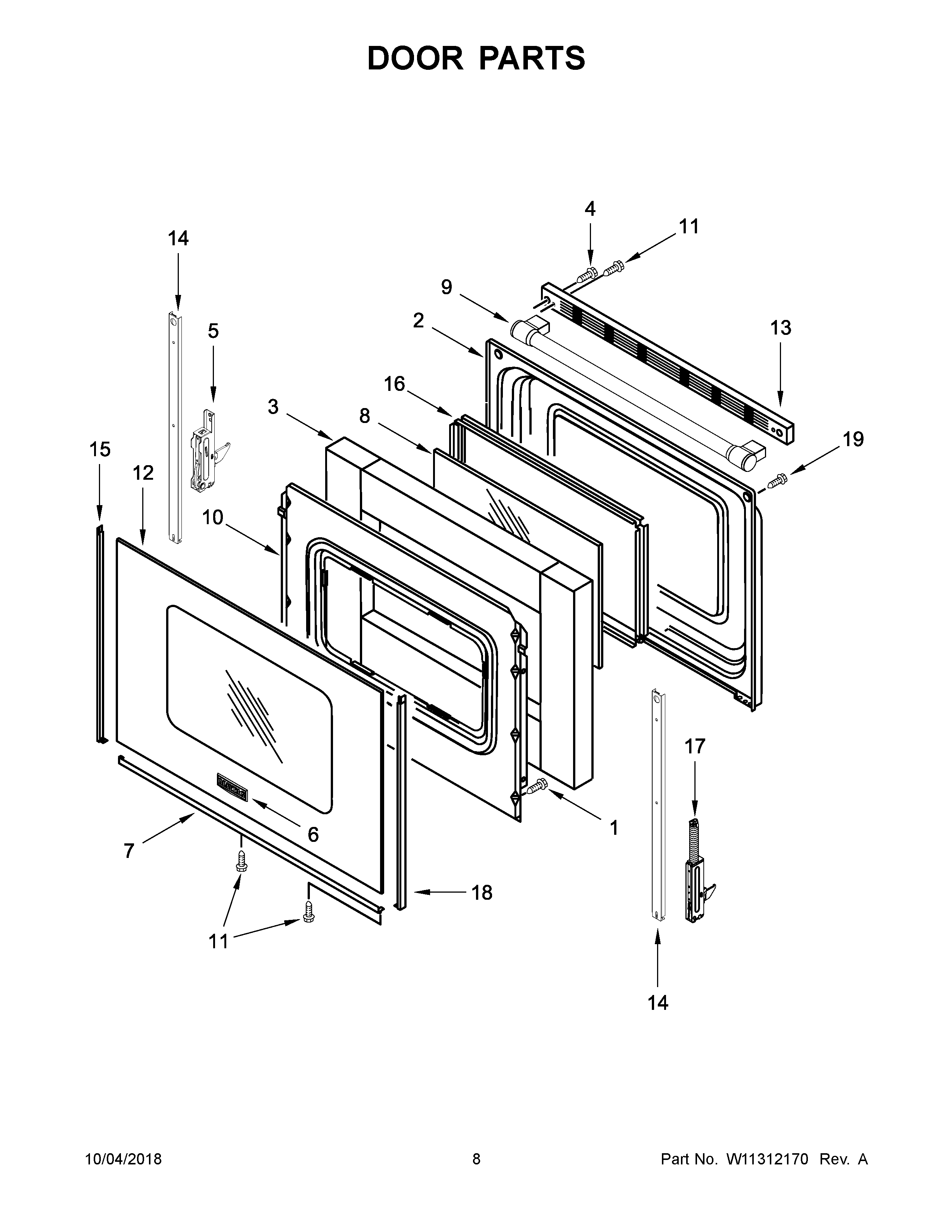

MER6600FB2 05 – DOOR PARTS

MER6600FB2 05 – DOOR PARTS

Written by

in

MER6600FB2 05 – DOOR PARTS

Products

Position	Product
1	SCREW
2	LINER, DOOR
3	INSULATION, DOOR STRIP
4	SCREW
5	HINGE, DOOR (PASSIVE)
6	BADGE
7A	TRIM, LOWER (WHITE)
7	TRIM, LOWER (BLACK)
8	GLASS, INNER
9A	HANDLE, OVEN DOOR (WHITE)
9	HANDLE, OVEN DOOR (BLACK)
10	RETAINER, INSULATION
11	SCREW
12	GLASS, OUTER DOOR (BLACK)
12A	GLASS, OUTER DOOR (WHITE)
13	MAY W10875233
13A	MAY W10875232
14	STRAP, DOOR
15	TRIM, SIDE (BLACK (LEFT))
15A	TRIM, SIDE (WHITE (LEFT))
16	FRAME, GLASS
17	HINGE, ACTIVE
18	TRIM, SIDE (BLACK (RIGHT))
18A	TRIM, SIDE (WHITE (RIGHT))
19	SCREW
