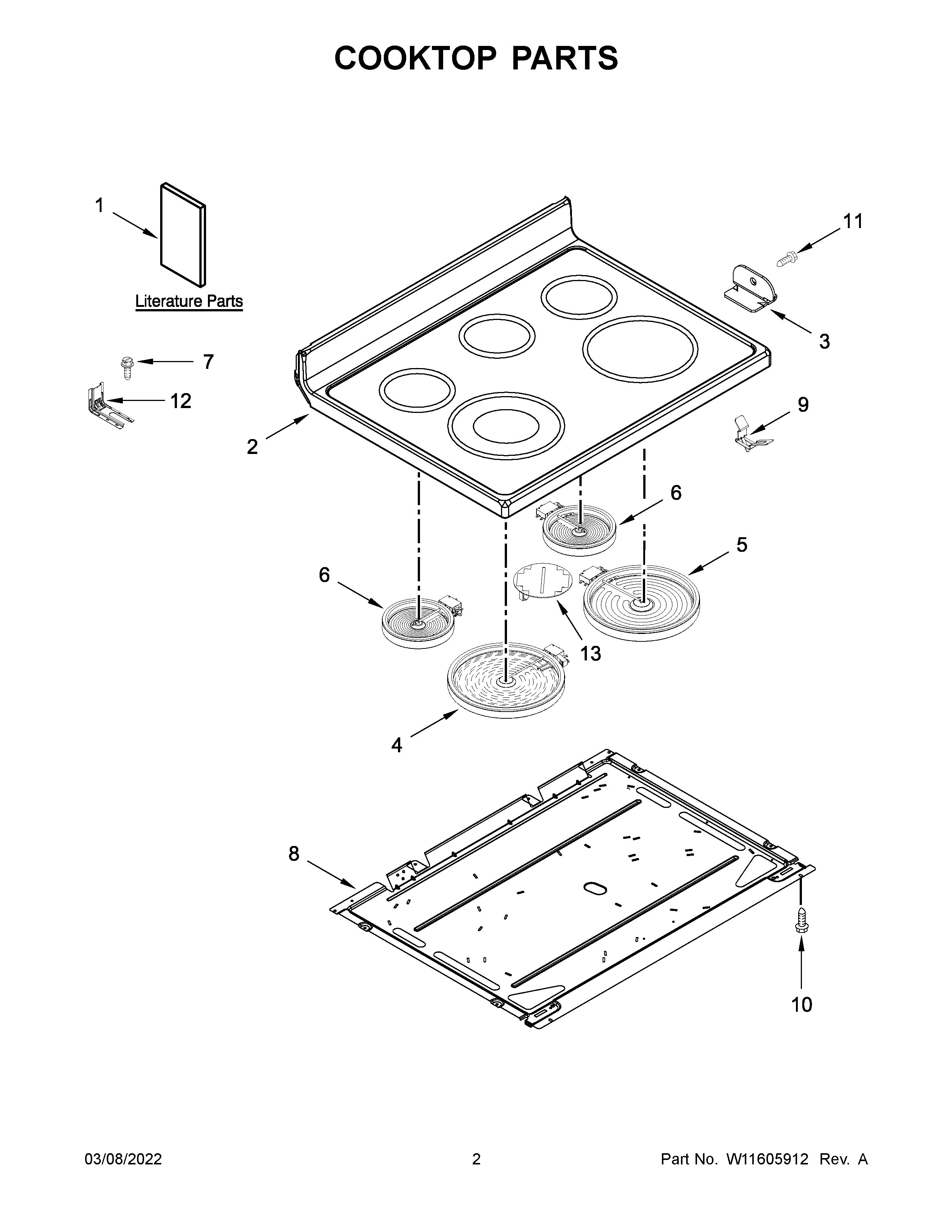

MER6600FB5 02 – COOKTOP PARTS

MER6600FB5 02 – COOKTOP PARTS

Written by

in

MER6600FB5 02 – COOKTOP PARTS

Products

PositionProduct
NIW11452625 Whirlpool Wire Harness
NIW11172528 Whirlpool Harness Wire
NIW11134592 Whirlpool Wire Harness
NIW11675846 Whirlpool Wire Harness
NIW11596058 Whirlpool Wire Harness
NIWPW10281322 Whirlpool Connector
NIW10183541 Whirlpool Clip Assembly
NICABINET (NOT A SERVICEABLE PART)
1AQUICK START GUIDE
1BTECH SHEET
1USER INSTRUCTIONS
2AW11091928 Whirlpool Cooktop
2W11091927 Whirlpool Cooktop
3W10607641 Whirlpool Clip
3AW10607642 Whirlpool Clip
4W11517959 Whirlpool Electric Range Radiant Surface Element
5W11047722 Whirlpool Radiant Surface Element
6ELMNT-SURF
7SCREW, ANTI-TIP KIT
8PAN
9WPW10225448 Whirlpool Spring Assembly
10WP3196175 Whirlpool Screw
11SCREW
12W11447673 Whirlpool Range Tip Anchor
13W11041453 Whirlpool Surface Element
