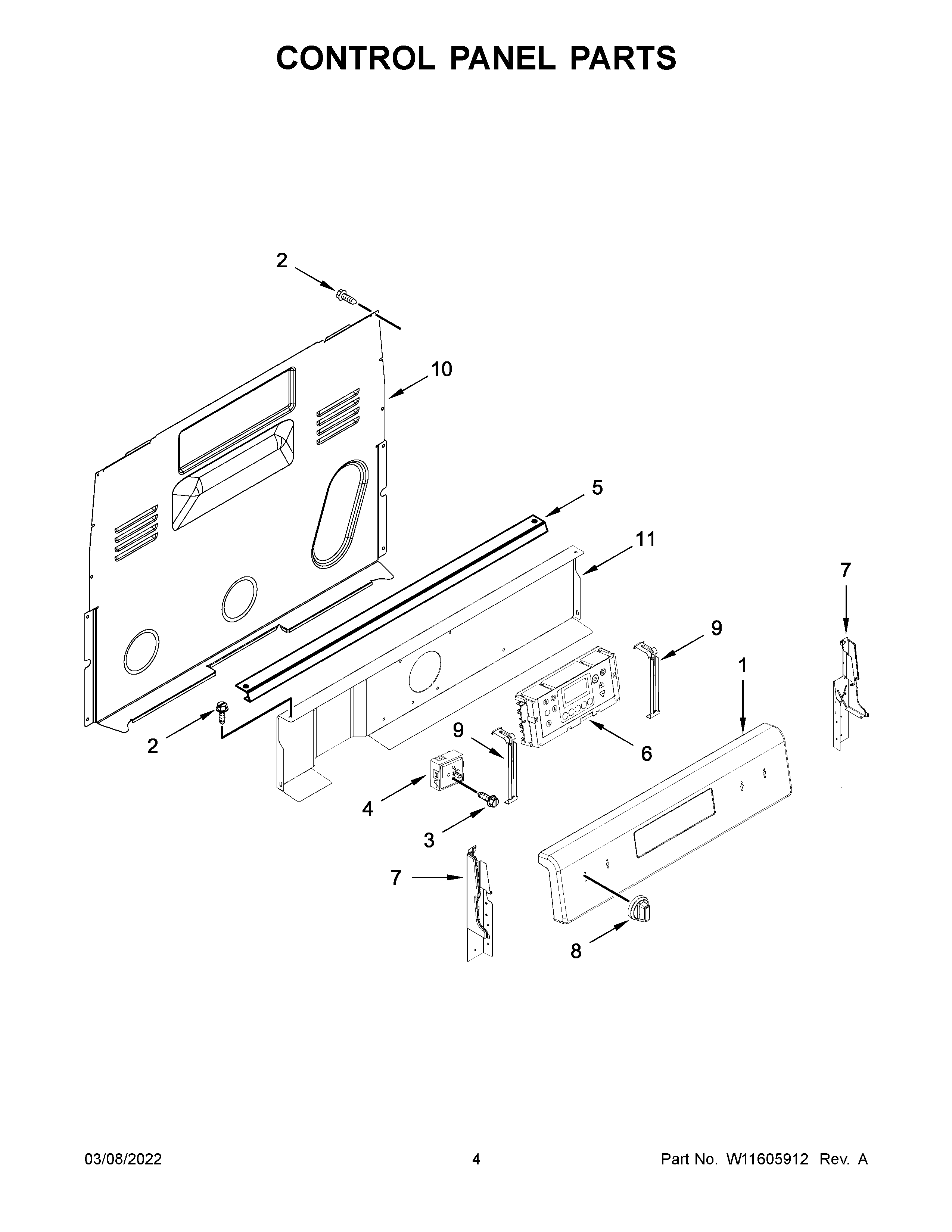

MER6600FB5 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	W11092069 Whirlpool Control Panel
1	W11092070 Whirlpool Control Panel
2	SCREW
3	WP3400882 Whirlpool Screw
4A	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
4B	WP3149400 Whirlpool Oven Infinite Switch
5	W10525121 Whirlpool Control Bracket
6	W11602268-includeCORE Whirlpool W11602268 Electronic Control Board
6A	W11602269 Whirlpool Electronic Control Board + Core
7A	W11219665 Whirlpool Panel Endcap
7C	W11219370 Whirlpool Endcap Panel
7B	W11219365 Whirlpool Panel Endcap
7	W11219664 Whirlpool Endcap Panel
8	W11092475 Whirlpool Knob
8A	W11092479 Whirlpool Knob
9	W11230932 Whirlpool Bracket Mounting
10	WP8272473 Whirlpool Rear Cover
11	W10134247 Whirlpool Heat Shield
