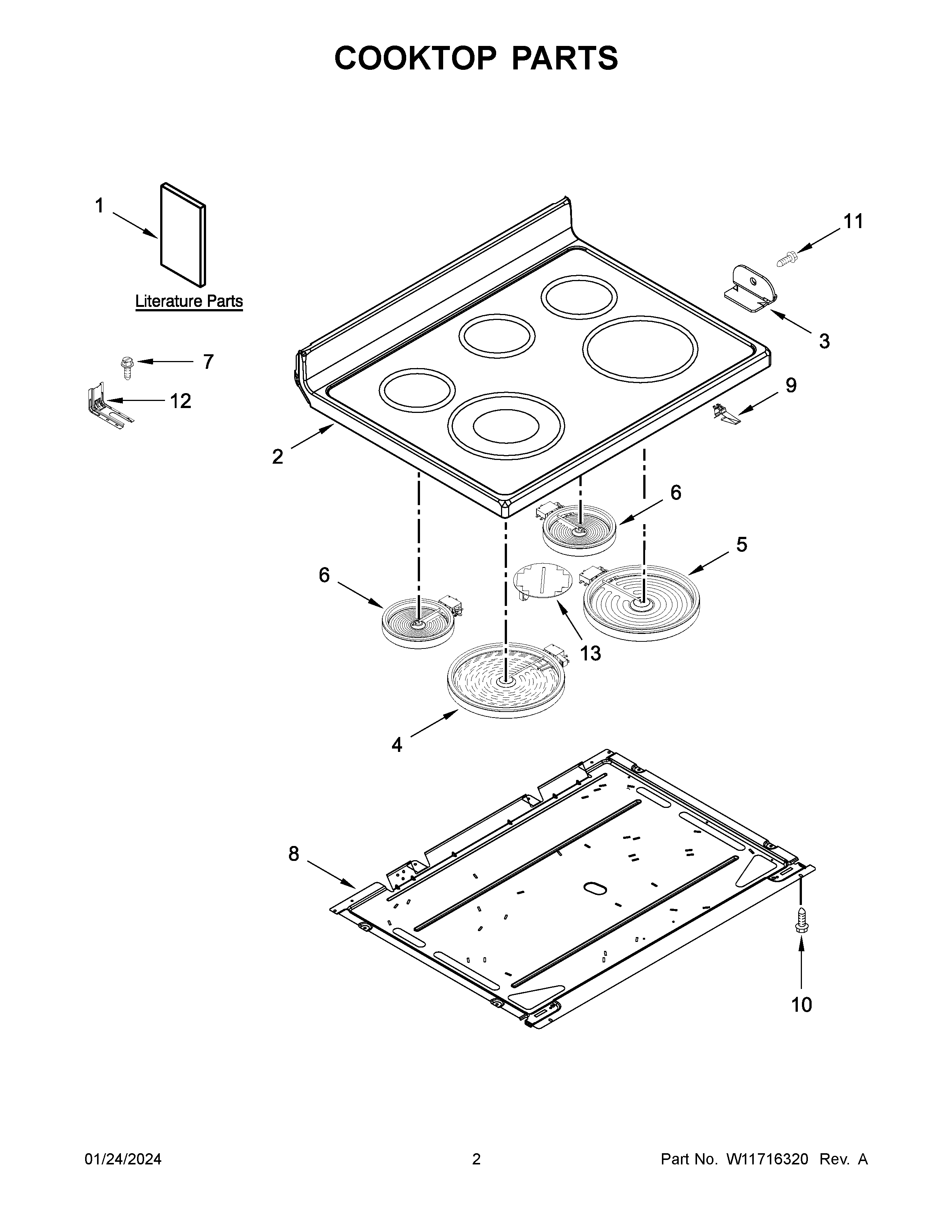

MER6600FB6 02 – COOKTOP PARTS

Products

Position	Product
NI	W11452625 Whirlpool Wire Harness
NI	W11172528 Whirlpool Harness Wire
NI	W10183541 Whirlpool Clip Assembly
NI	W11675846 Whirlpool Wire Harness
NI	W11596058 Whirlpool Wire Harness
NI	WPW10281322 Whirlpool Connector
NI	HARNESS, WARM ZONE
NI	FOLLOWING PARTS NOT ILLUSTRATED
1A	QUICK START GUIDE
1B	TECH SHEET
1	USER INSTRUCTIONS
2	W11091927 Whirlpool Cooktop
2A	W11091928 Whirlpool Cooktop
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	W11517959 Whirlpool Electric Range Radiant Surface Element
5	W11047722 Whirlpool Radiant Surface Element
6	ELMNT-SURF
7	SCREW, ANTI-TIP KIT
8	PAN
9	W11663556 Whirlpool Spring Assembly
10	WP3196175 Whirlpool Screw
11	SCREW
12	W11447673 Whirlpool Range Tip Anchor
13	ELEMENT, WARM ZONE (CENTER)
