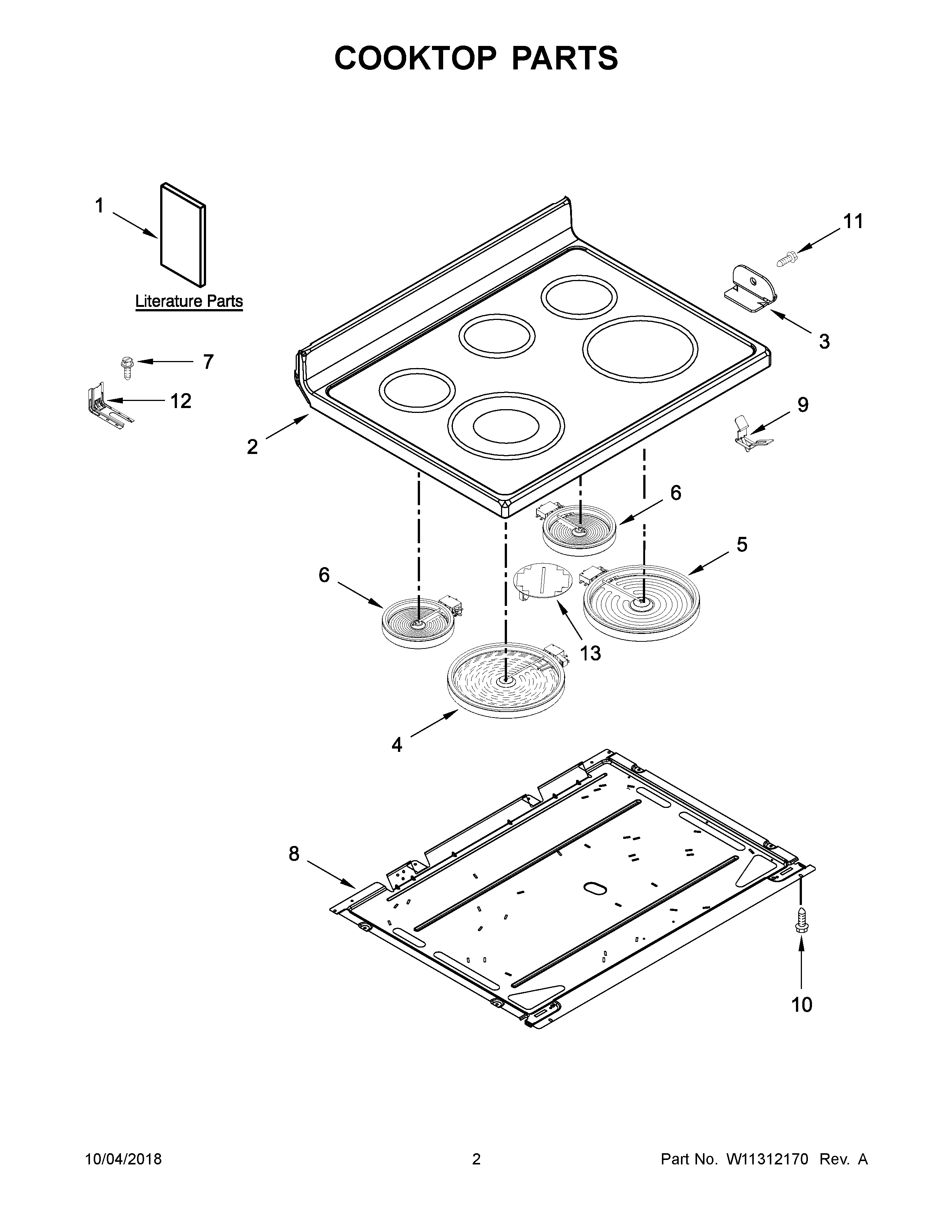

MER6600FW2 02 – COOKTOP PARTSadmin2025-04-26T09:14:04+00:00MER6600FW2 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | KIT, BARE WIRE ADAPTER BLOCK |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | HARNESS, HIDDEN BAKE |
| NI | HARNESS, WARM ZONE |
| NI | CLIP, SPRING STEEL |
| NI | HARNESS, COOKTOP (LEFT) |
| NI | HARNESS, COOKTOP (RIGHT) |
| NI | MAY W11134676 |
| 1B | SHEET, TECH |
| 1A | INSTRUCTIONS, INSTALLATION |
| 1C | WIRING, DIAGRAM |
| 1 | MAY W11037227 |
| 2 | MAY W11022824 |
| 2A | MAY W11022825 |
| 3A | BRACKET, COOKTOP (RIGHT) |
| 3 | BRACKET, COOKTOP (LEFT) |
| 4 | ELEMENT (3000/1400W) (LEFT FRONT) |
| 5 | ELEMENT (2500W) (RIGHT FRONT) |
| 6 | ELEMENT (1200W) (LEFT REAR, RIGHT REAR) |
| 7 | SCREW, ANTI-TIP KIT |
| 8 | PAN, RADIANT ELEMENT |
| 9 | SPRING, ELEMENT |
| 10 | SCREW |
| 11 | SCREW |
| 12 | BRACKET, ANTI-TIP |
| 13 | ELEMENT, WARM ZONE (CENTER) |
