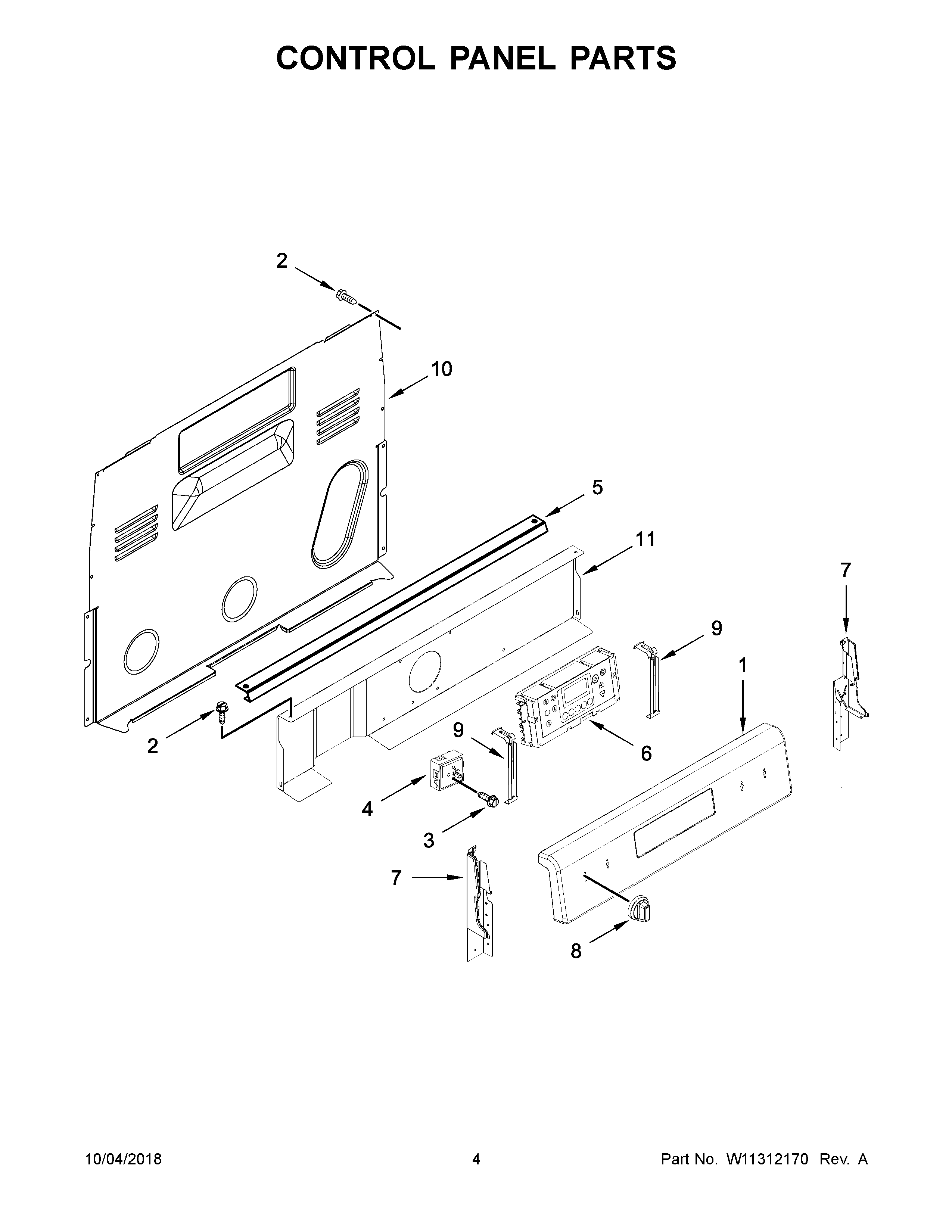

MER6600FW2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AMAY W10885608
1MAY W10885609
2SCREW
3SCREW
4ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4BSWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
5BRACKET, CONSOLE MOUNTING
6BOARD, CONTROL (BLACK)
6ABOARD, CONTROL (WHITE)
7AENDCAP (BLACK (RIGHT))
7CENDCAP (WHITE (RIGHT))
7BENDCAP (WHITE (LEFT))
7ENDCAP (BLACK (LEFT))
8MAY W10892251
8AMAY W10892250
9BRACKET, CONTROL
10COVER, UPPER REAR
11SHIELD, HEAT
