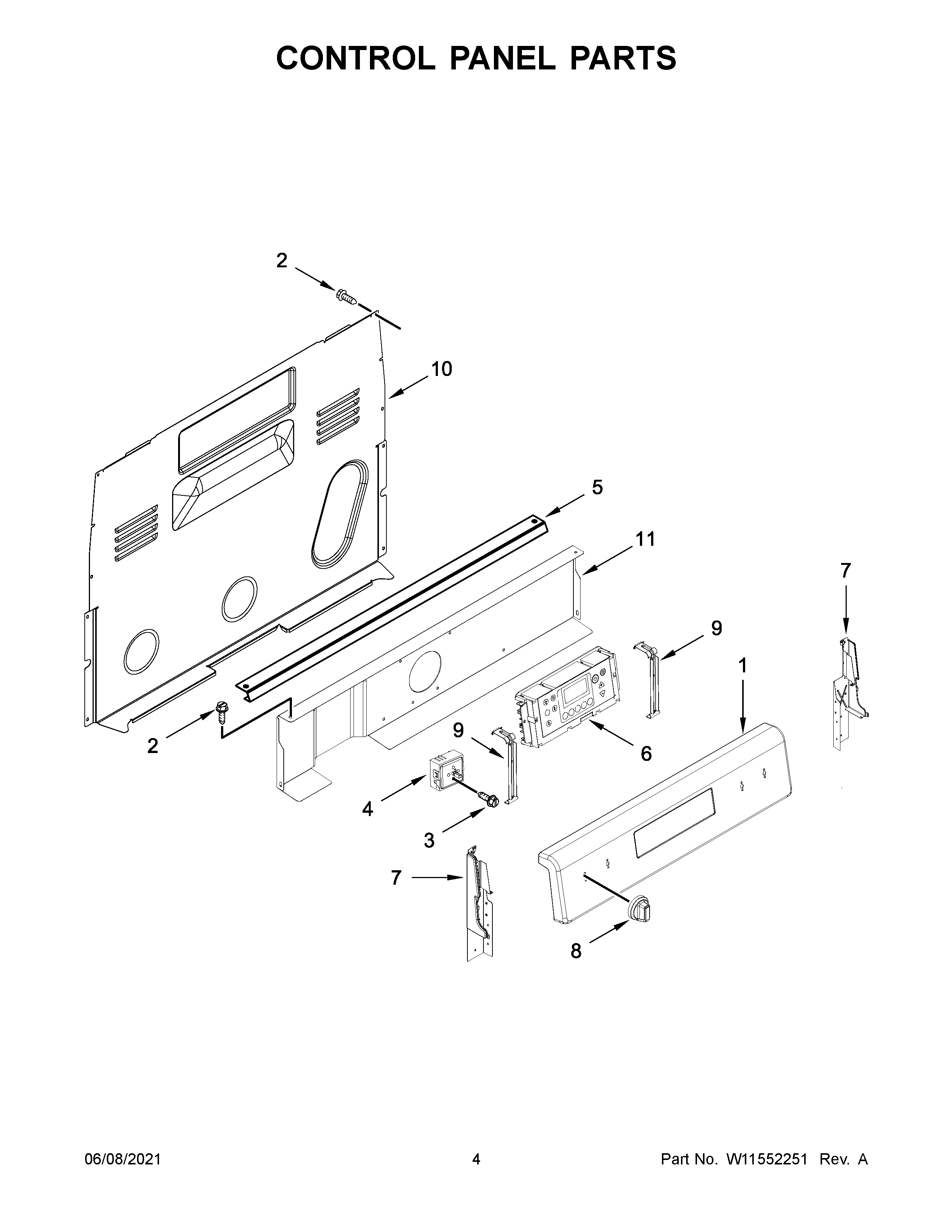

MER6600FW3 03 – CONTROL PANEL PARTS

MER6600FW3 03 – CONTROL PANEL PARTS

Written by

in

MER6600FW3 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11092069 Whirlpool Control Panel
2SCREW
3WP3400882 Whirlpool Screw
4AWP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
4BWP3149400 Whirlpool Oven Infinite Switch
5W10525121 Whirlpool Control Bracket
6W11536808-includeCORE Whirlpool W11536808 Washer Electronic Control Board + Core
7AW11219370 Whirlpool Endcap Panel
7W11219365 Whirlpool Panel Endcap
8W11092479 Whirlpool Knob
9W11230932 Whirlpool Bracket Mounting
10WP8272473 Whirlpool Rear Cover
11W10134247 Whirlpool Heat Shield
