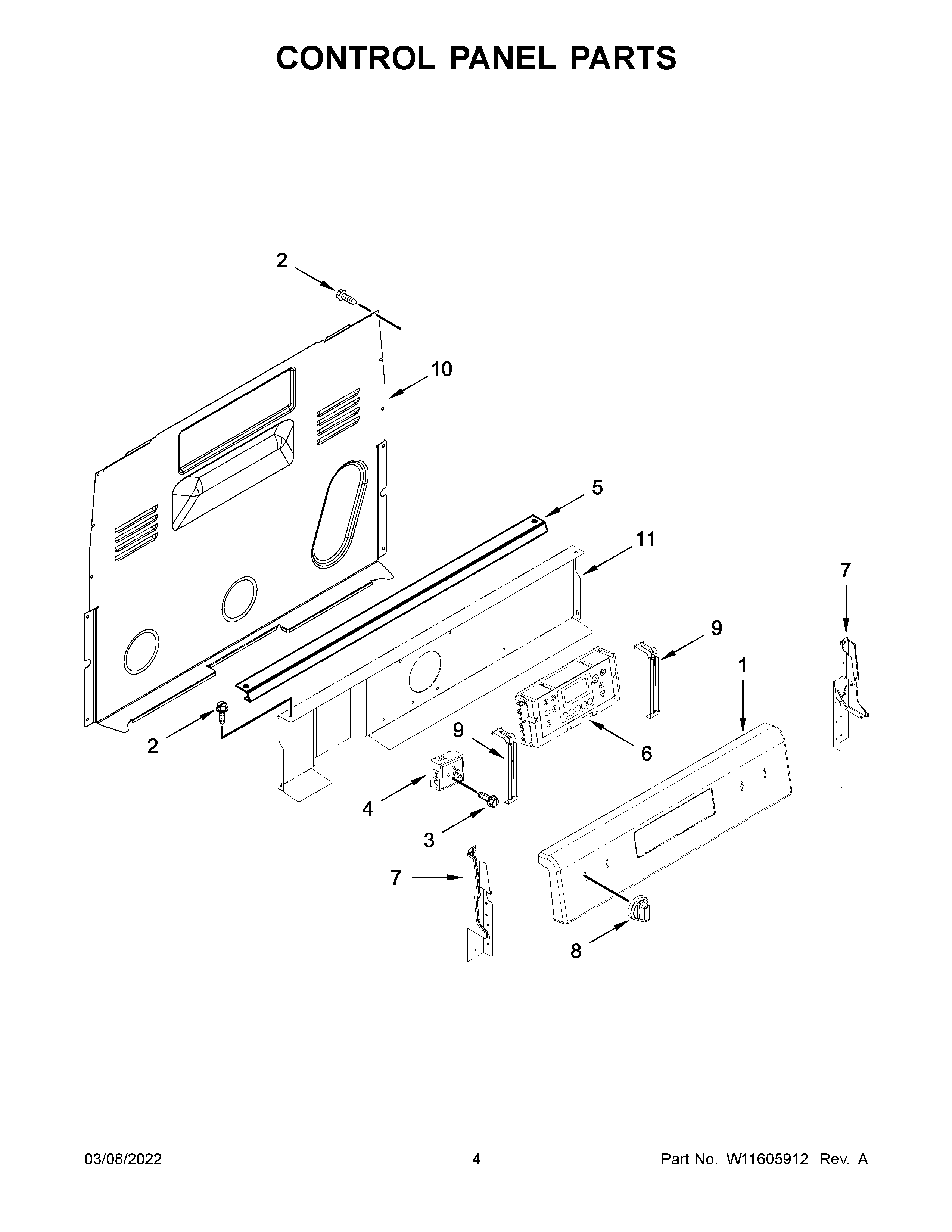

MER6600FW5 03 – CONTROL PANEL PARTS

MER6600FW5 03 – CONTROL PANEL PARTS

Written by

in

MER6600FW5 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11092069 Whirlpool Control Panel
1W11092070 Whirlpool Control Panel
2SCREW
3WP3400882 Whirlpool Screw
4AWP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
4BWP3149400 Whirlpool Oven Infinite Switch
5W10525121 Whirlpool Control Bracket
6W11602268-includeCORE Whirlpool W11602268 Electronic Control Board
6AW11602269 Whirlpool Electronic Control Board + Core
7AW11219665 Whirlpool Panel Endcap
7CW11219370 Whirlpool Endcap Panel
7BW11219365 Whirlpool Panel Endcap
7W11219664 Whirlpool Endcap Panel
8W11092475 Whirlpool Knob
8AW11092479 Whirlpool Knob
9W11230932 Whirlpool Bracket Mounting
10WP8272473 Whirlpool Rear Cover
11W10134247 Whirlpool Heat Shield
