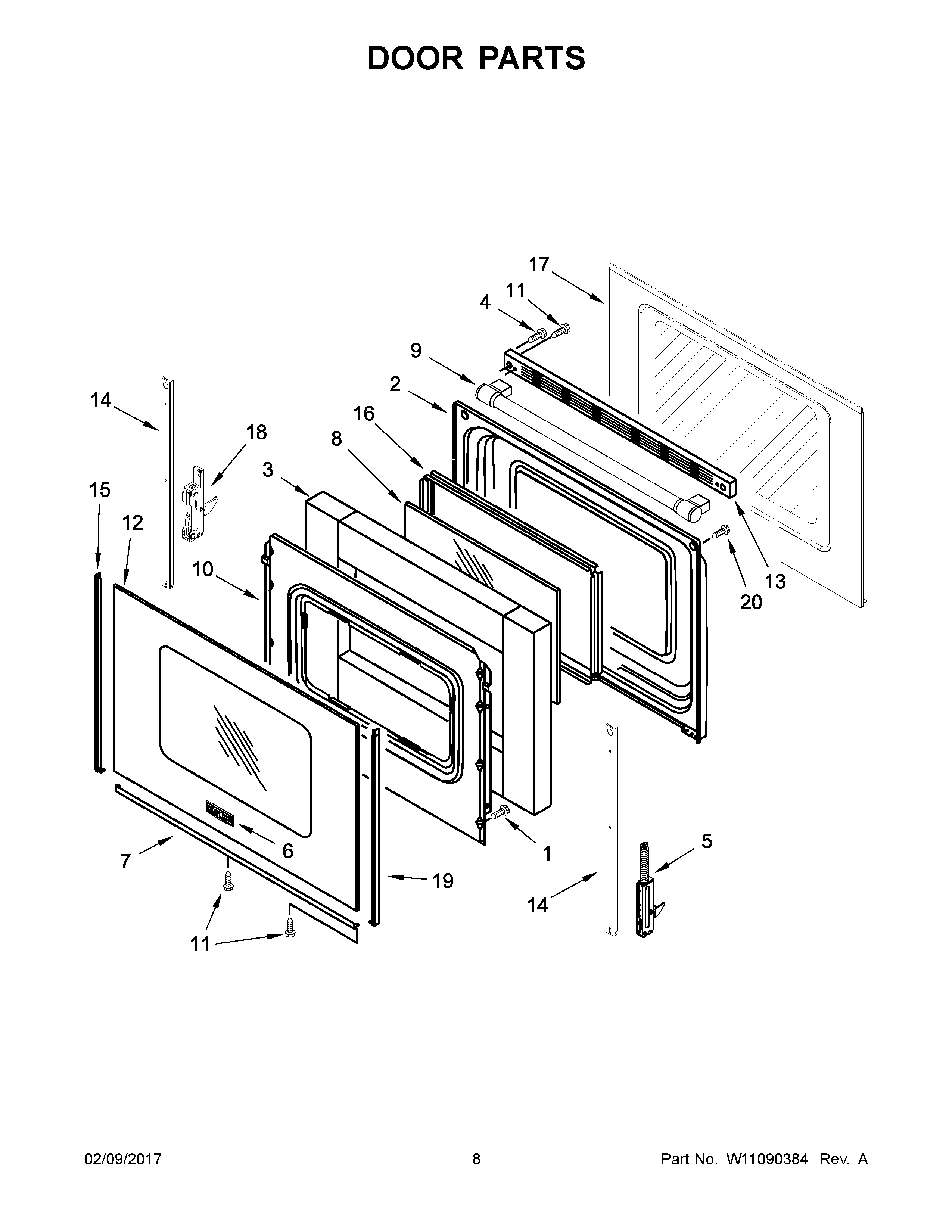

MER6600FZ0 05 – DOOR PARTS

Products

PositionProduct
1SCREW
2LINER, DOOR
3INSULATION, DOOR STRIP
4SCREW
5HINGE, DOOR (PASSIVE)
6BADGE
7TRIM, LOWER (BLACK)
7ATRIM, LOWER (WHITE)
8GLASS, INNER
9BHANDLE, OVEN DOOR (STAINLESS)
9AHANDLE, OVEN DOOR (WHITE)
9HANDLE, OVEN DOOR (BLACK)
10RETAINER, INSULATION
11SCREW
12GLASS, OUTER DOOR (BLACK)
12AGLASS, OUTER DOOR (WHITE)
13AMAY W10875232
13MAY W10875233
13BMAY W11047800
14STRAP, DOOR
15ATRIM, SIDE (WHITE (LEFT))
15TRIM, SIDE (BLACK (LEFT))
16FRAME, GLASS
17MAY W10861544
18HINGE, ACTIVE (WITH SPRING)
19ATRIM, SIDE (WHITE (RIGHT))
19TRIM, SIDE (BLACK (RIGHT))
20SCREW
