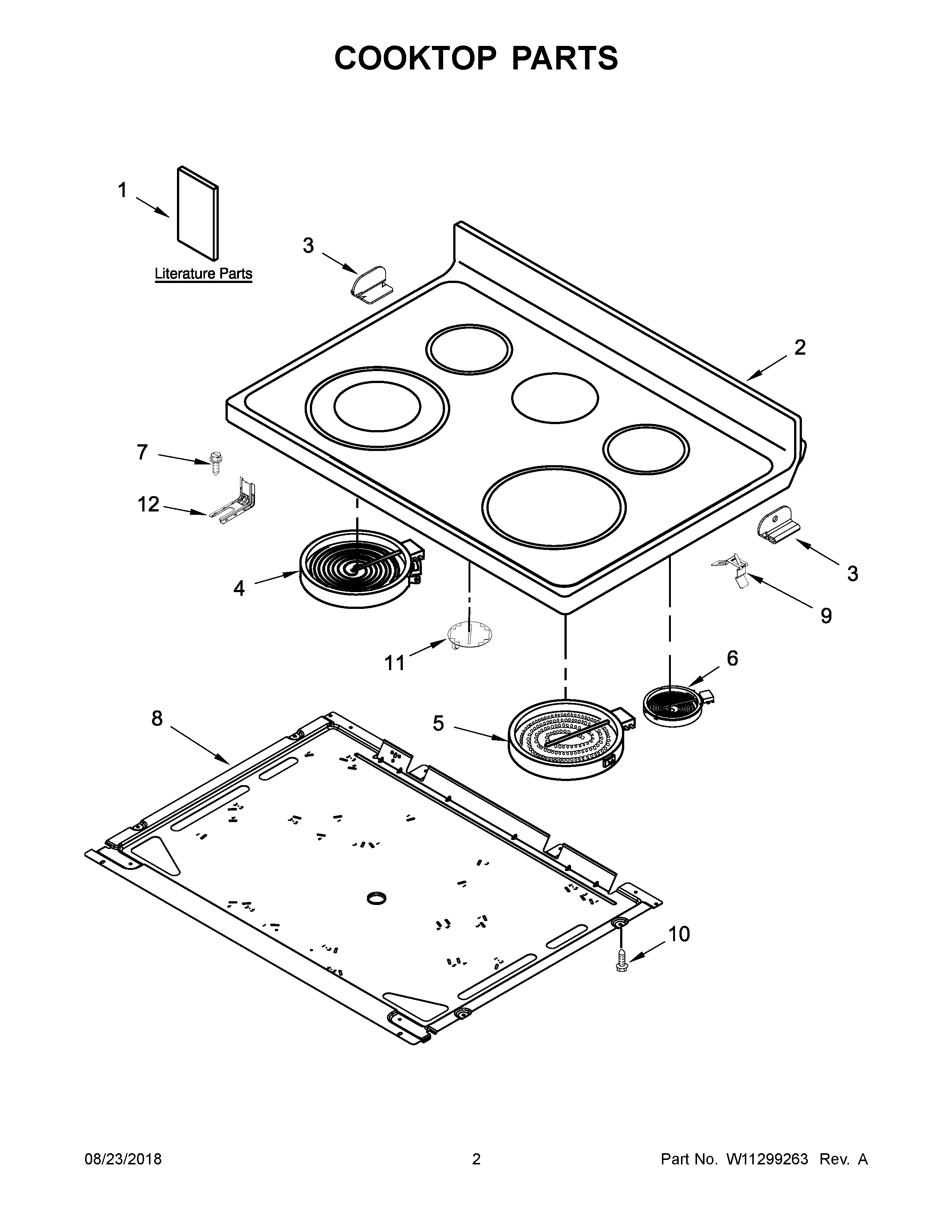

MER6600FZ2 02 – COOKTOP PARTS

Products

PositionProduct
NIKIT, BARE WIRE ADAPTER BLOCK
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, HIDDEN BAKE
NIHARNESS, WARM ZONE
NIHARNESS, COOKTOP (LEFT)
NIHARNESS, COOKTOP (RIGHT)
NIMAY W11134676
1BSHEET, TECH
1AINSTRUCTIONS, INSTALLATION
1CWIRING, DIAGRAM
1MAY W11037227
2MAY W11022824
3ABRACKET, COOKTOP (RIGHT)
3BRACKET, COOKTOP (LEFT)
4ELEMENT (3000/1400W) (LEFT FRONT)
5ELEMENT (2500W) (RIGHT FRONT)
6ELEMENT (1200W) (LEFT REAR, RIGHT REAR)
7SCREW, ANTI-TIP KIT
8PAN, RADIANT ELEMENT
9SPRING, ELEMENT
10SCREW
11ELEMENT, WARM ZONE (CENTER)
12BRACKET, ANTI-TIP
