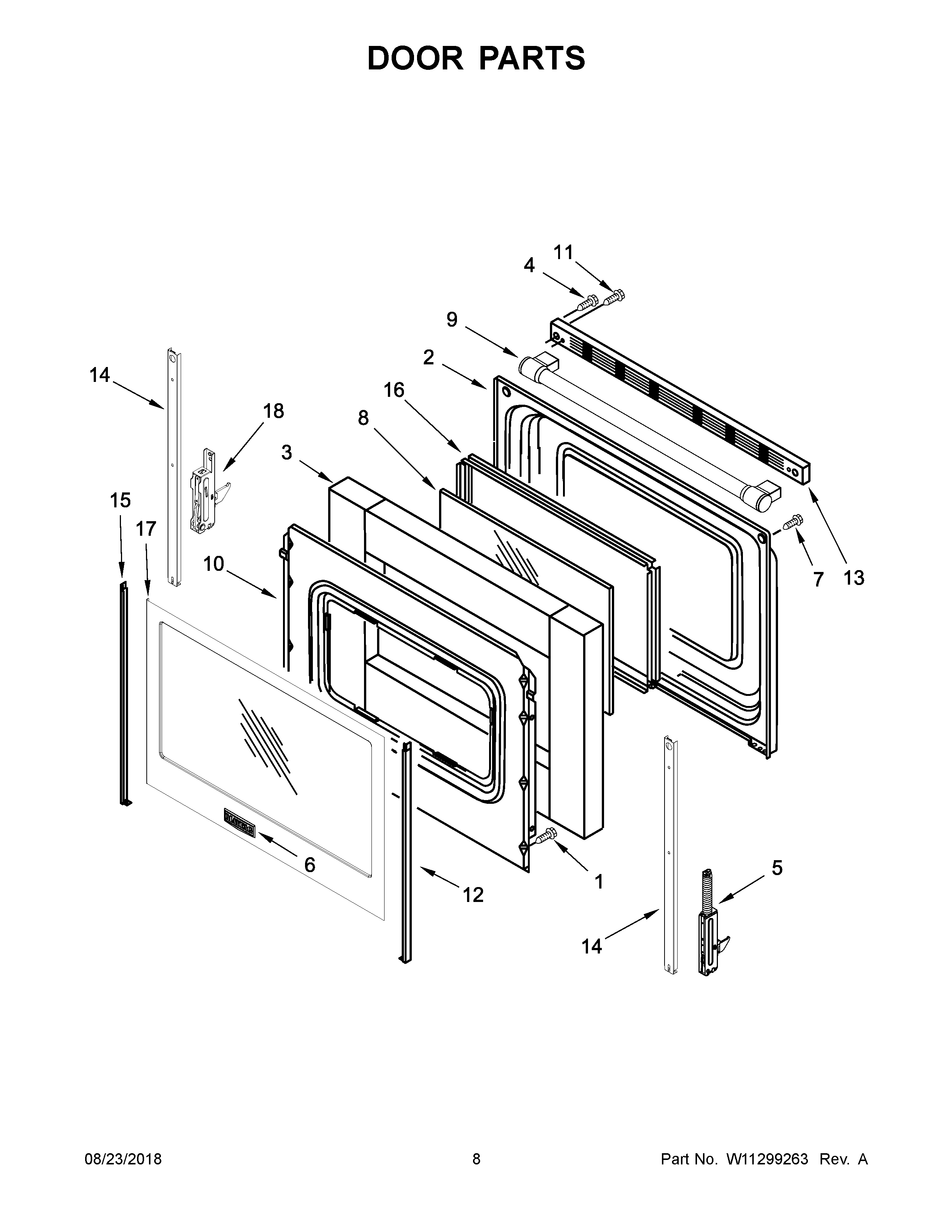

MER6600FZ2 05 – DOOR PARTSadmin2025-04-26T09:12:30+00:00MER6600FZ2 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | SCREW |
| 2 | LINER, DOOR |
| 3 | INSULATION, DOOR STRIP |
| 4 | SCREW |
| 5 | HINGE, DOOR (PASSIVE) |
| 6 | BADGE |
| 7 | SCREW |
| 8 | GLASS, INNER |
| 9 | HANDLE, OVEN DOOR (STAINLESS) |
| 10 | RETAINER, INSULATION |
| 11 | SCREW |
| 12 | TRIM, SIDE (BLACK (RIGHT)) |
| 13 | MAY W11047800 |
| 14 | STRAP, DOOR |
| 15 | TRIM, SIDE (BLACK (LEFT)) |
| 16 | FRAME, GLASS |
| 17 | GLASS ASSEMBLY, OUTER DOOR (STAINLESS) |
| 18 | HINGE, ACTIVE (WITH SPRING) |
