MER6600FZ6 02 – COOKTOP PARTS
Written by
in

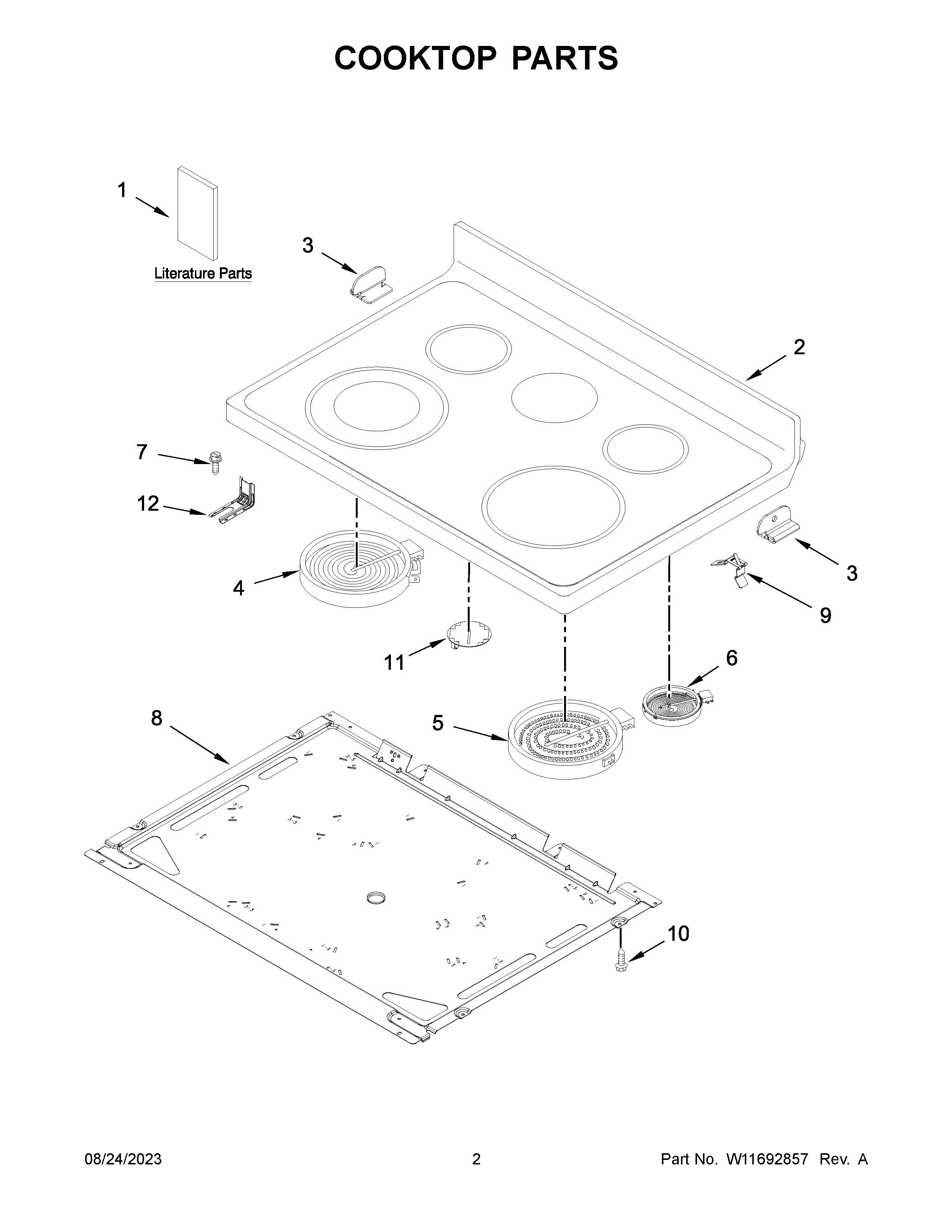

MER6600FZ6 02 – COOKTOP PARTS
Products
Position
Product
NI
W11452625 Whirlpool Wire Harness
NI
W11172528 Whirlpool Harness Wire
NI
W11675846 Whirlpool Wire Harness
NI
W11596058 Whirlpool Wire Harness
NI
WPW10281322 Whirlpool Connector
NI
HARNESS, WARM ZONE
NI
FOLLOWING PARTS NOT ILLUSTRATED
1B
TECH SHEET
1
USER INSTRUCTIONS
1A
QUICK START GUIDE
2
W11091927 Whirlpool Cooktop
3
W10607641 Whirlpool Clip
3A
W10607642 Whirlpool Clip
4
W11517959 Whirlpool Electric Range Radiant Surface Element
5
W11047722 Whirlpool Radiant Surface Element
6
ELMNT-SURF
7
SCREW, ANTI-TIP KIT
8
PAN
9
W11663556 Whirlpool Spring Assembly
10
WP3196175 Whirlpool Screw
11
ELEMENT, WARM ZONE (CENTER)
12
W11447673 Whirlpool Range Tip Anchor
←
