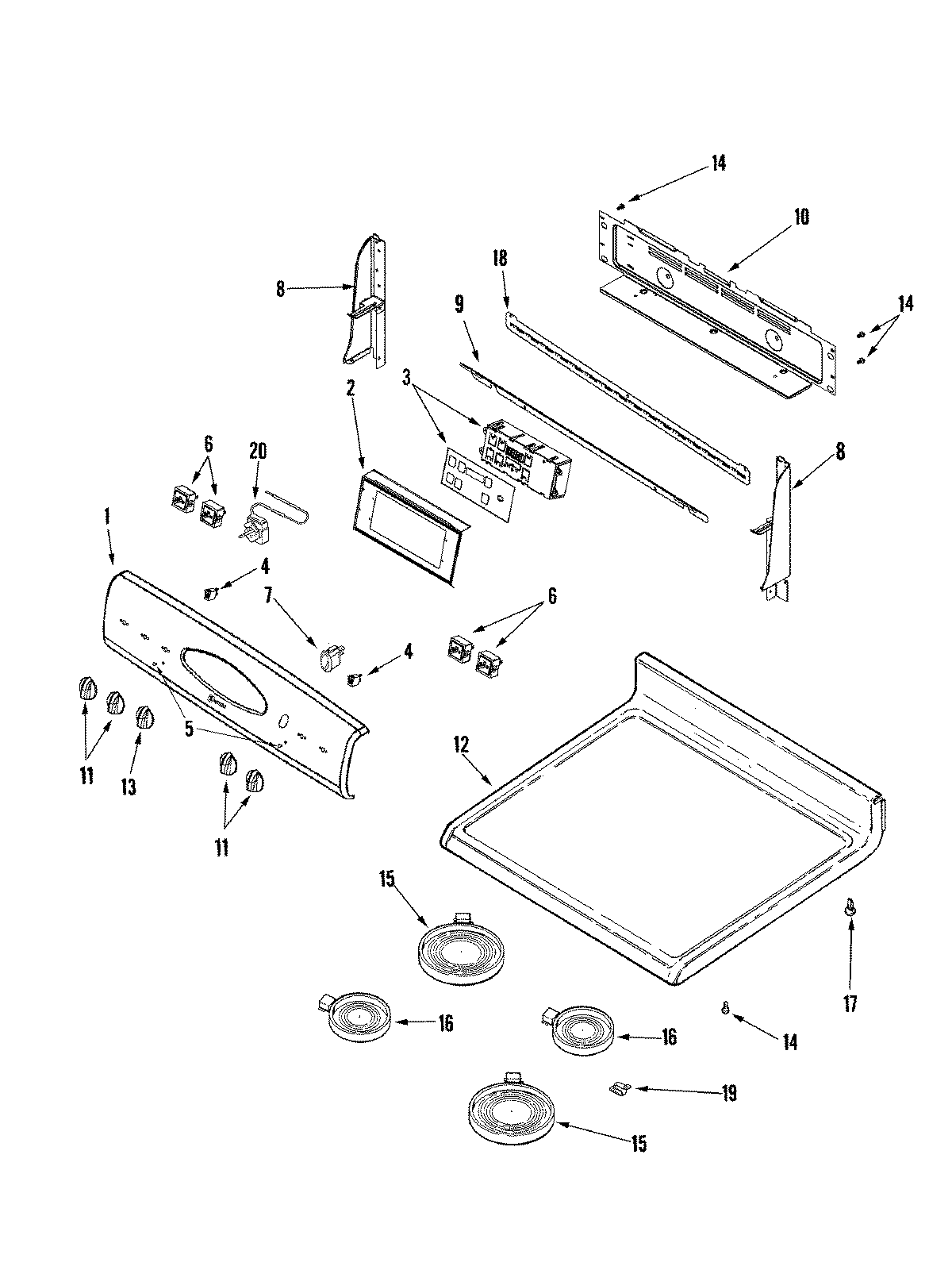

MER6741BAB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74011360
2	BRACKET, CLOCK
3	MAY 74011394
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	MAY 7101P280-60
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP7403P239-60 Whirlpool Oven Switch
7	7403P985-60 Whirlpool Rocker Switch (Black)
8	WP74003976 Whirlpool Screw
8	MAY 74010202
8	MAY 74010201
8	WP98008545 Whirlpool Screw
9	MAY 74009978
10	COVER, REAR WIRE
10	SCREW (8BX3/8-NI)
11	MAY 74008945
12	MAY 74011060
13	74008948 Whirlpool Oven Black Knob
14	SCREW
15	W10823715 Whirlpool Radiant Surface Element
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	W11189172 Whirlpool Glide Drawer
18	WP90767 Whirlpool Screw
18	MAY 74009701
19	8004P093-60 Whirlpool Support C
20	7404P139-60 Whirlpool Thermostat
