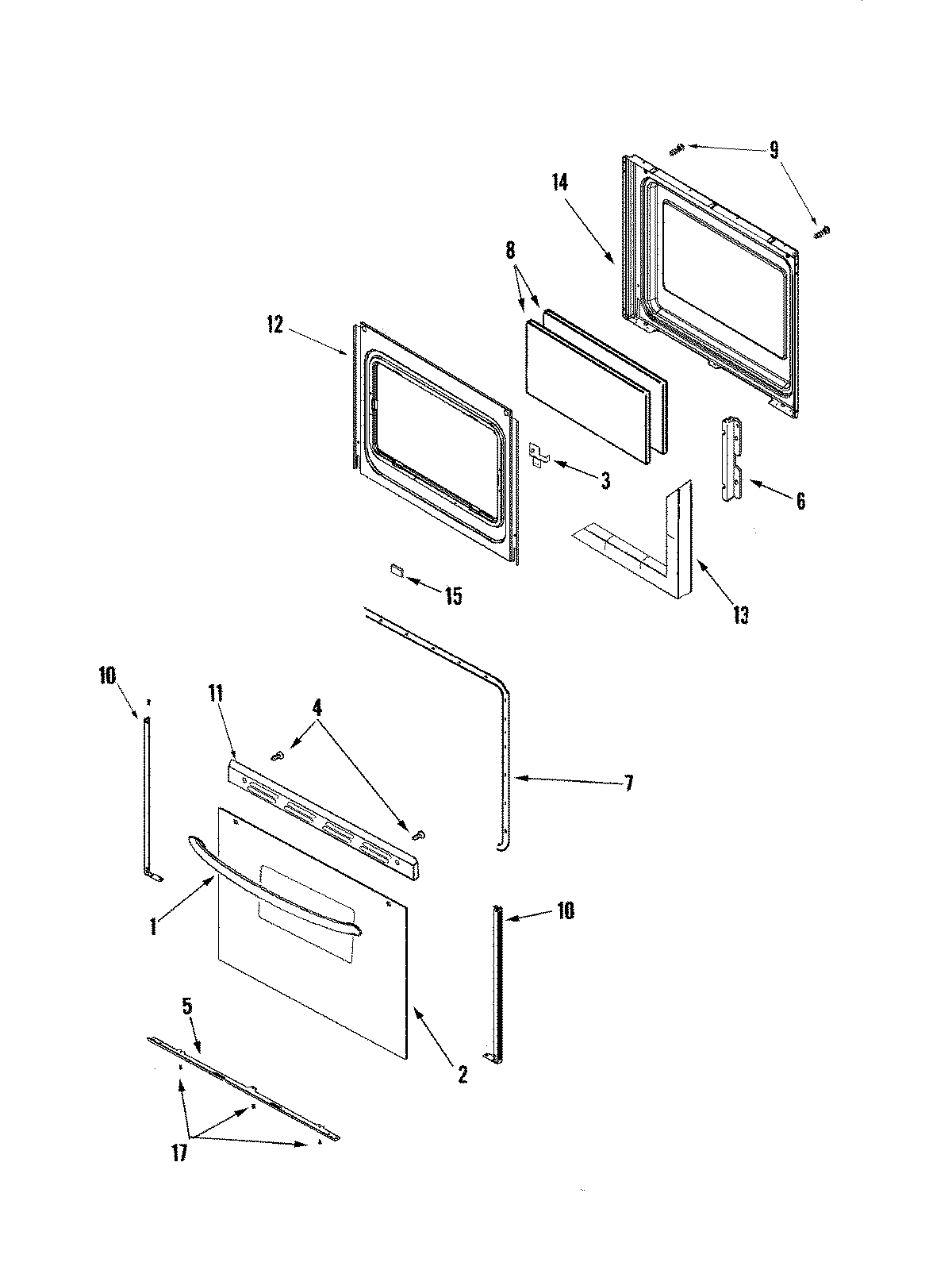

MER6741BAB 03 – DOOR (LOWER)

MER6741BAB 03 – DOOR (LOWER)

Written by

in

MER6741BAB 03 – DOOR (LOWER)

Products

PositionProduct
174011777 Whirlpool Range Oven Door Handle
2MAY 74009711
2TAPE, FOIL 29“ X 2“
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BLK)
6MAY 74001844
7GASKT-DOOR OVEN
8GLASS, INNER
9SCREW
10WP3608F116-70 Whirlpool Door Trim
10WP98008545 Whirlpool Screw
10WP3608F117-70 Whirlpool Door Trim
10WP74009025 Whirlpool Double Sided Tape
11MAY 74009689
11SPACER, RUBBER (BLK-SQUARE)
12MAY 7101P356-60
12BAFFLE, OVEN DOOR
13MAY 74001842
14NUT, SNAP (ROUND-BLK)
14LINING, OVEN DOOR
15WP74005546 Whirlpool RU Spacer
