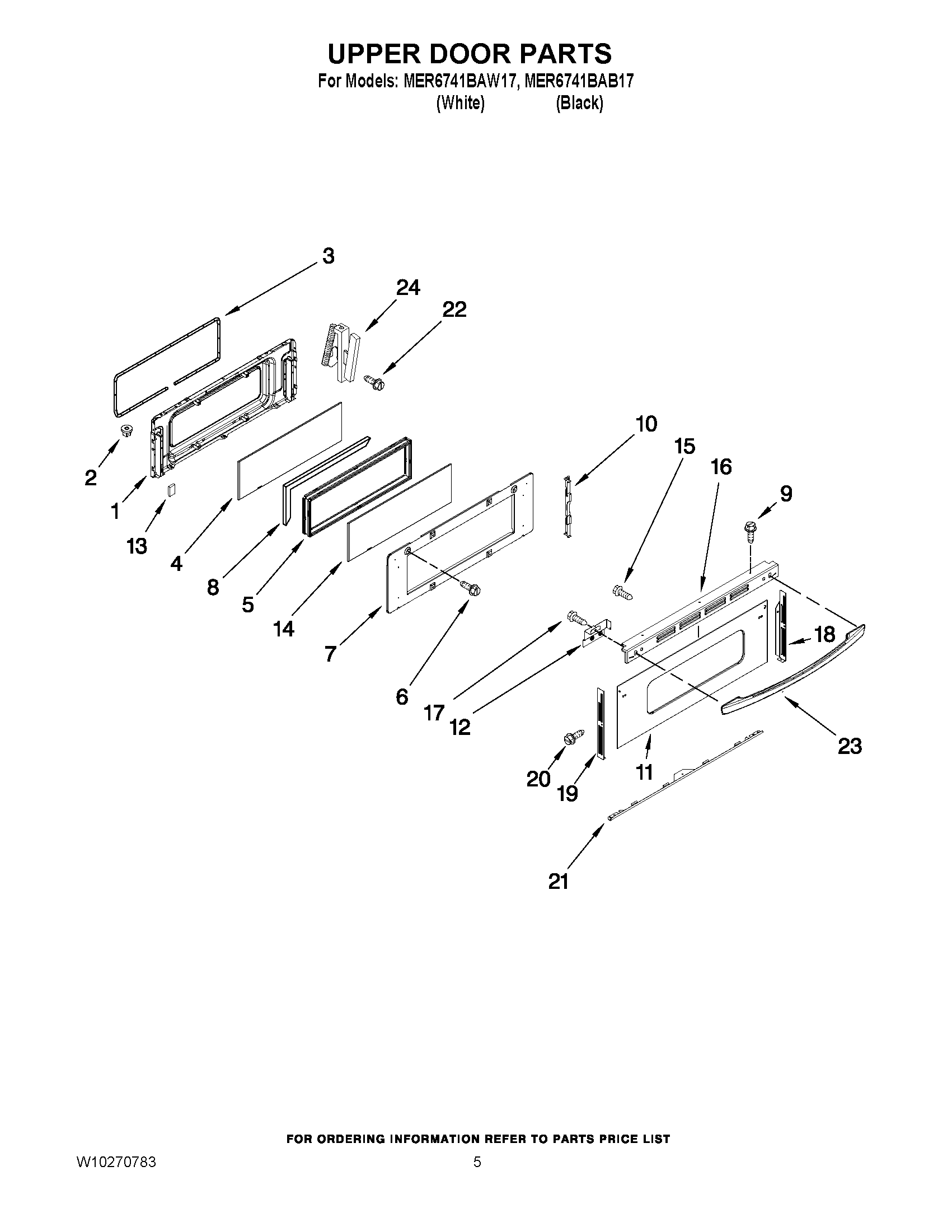

MER6741BAB17 04 – UPPER DOOR PARTS
Written by
in
MER6741BAB17 04 – UPPER DOOR PARTS
Products
Position
Product
1
MAY 2402W248-19
2
MAY 7103P141-60
2
NUT, SNAP (ROUND-WHT)
3
MAY 7212P087-60
5
MAY 7907P034-60
6
MAY 7101P388-60
7
Baffle, Door
8
MAY 7002P488-60
10
RETAINER, GLASS
11
KIT, DOOR GLASS (INCL. FOIL TAPE)
11
KIT, DOOR GLASS (INCL. FOIL TAPE)
12
MAY 3801F831-45
12
MAY 3801F832-45
13
MAY 8010P130-60
14
MAY 7902P521-60
15
MAY 7101P376-60
16
MAY 3608F141-71
16
MAY 3608F141-70
17
MAY 7101P681-60
18
MAY 3608F118-70
18
MAY 3608F118-71
19
MAY 3608F119-70
19
MAY 3608F119-71
20
Screw (2) (Black)
21
MAY 3807F708-71
21
MAY 3807F708-70
22
SCREW (10-24X5/16-NI)
23
MAY 7701P524-60
23
MAY 7701P522-60
24
MAY 7106P148-60
←
