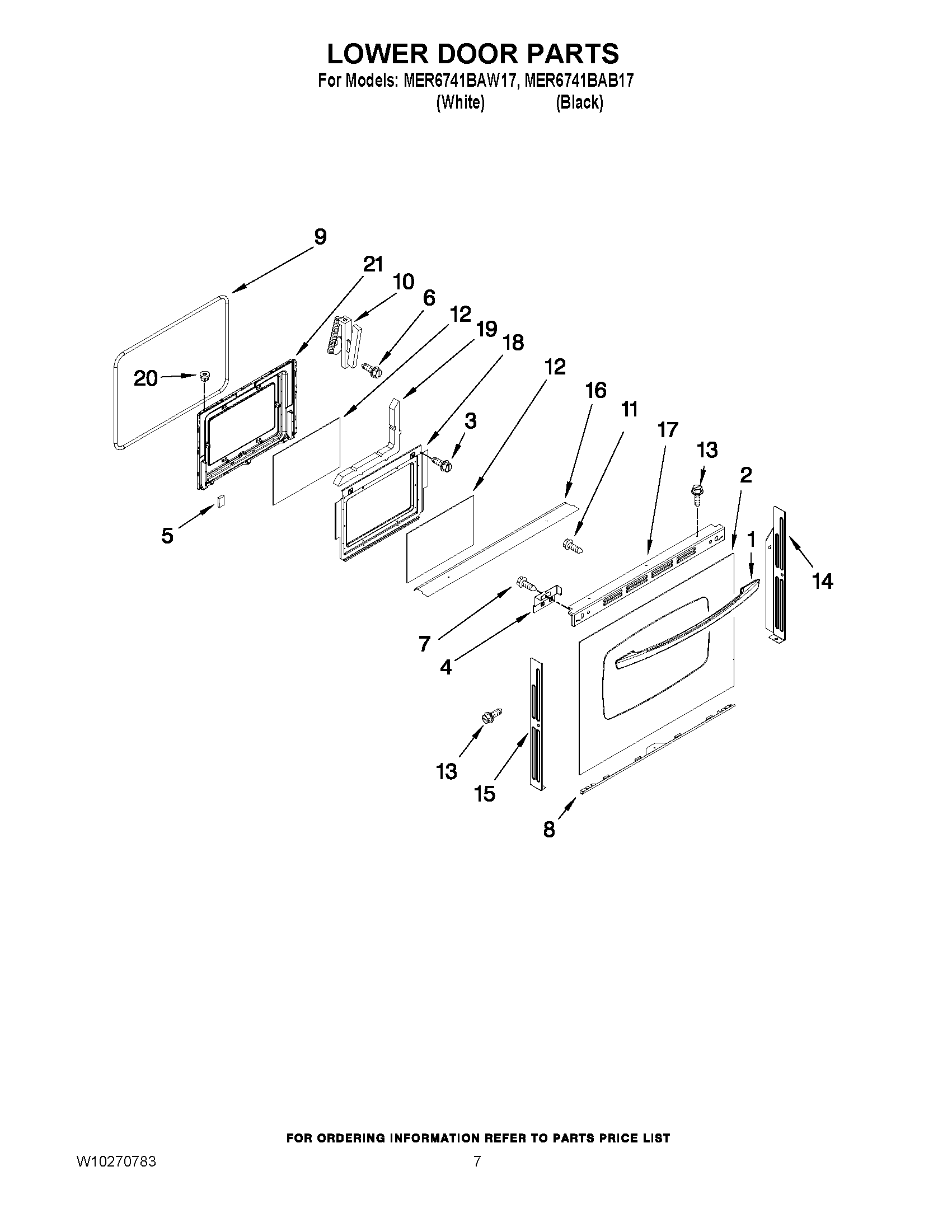

MER6741BAB17 05 – LOWER DOOR PARTS – Aparts

MER6741BAB17 05 – LOWER DOOR PARTS

Products

Position	Product
1	MAY 7701P524-60
1	MAY 7701P522-60
2	KIT, DOOR GLASS (INCL. FOIL TAPE)
2	KIT, DOOR GLASS (INCL. FOIL TAPE)
3	MAY 7101P388-60
4	MAY 3801F832-45
4	MAY 3801F831-45
5	MAY 8010P130-60
6	SCREW (10ABX1/4P TR ZN)
7	MAY 7101P681-60
8	MAY 3807F708-70
8	MAY 3807F708-71
9	MAY W10162384
10	MAY 7106P141-60
11	MAY 7101P376-60
12	MAY 7902P472-60
13	Screw (2) (Black)
14	MAY 3608F116-71
14	MAY 3608F116-70
15	MAY 3608F117-71
15	MAY 3608F117-70
16	MAY 3604F440-51
17	MAY 3608F141-70
17	MAY 3608F141-71
18	BAFFLE, DOOR
19	MAY 7002P221-60
20	MAY 7103P141-60
20	NUT, SNAP (ROUND-WHT)
21	MAY 2402W271-19
