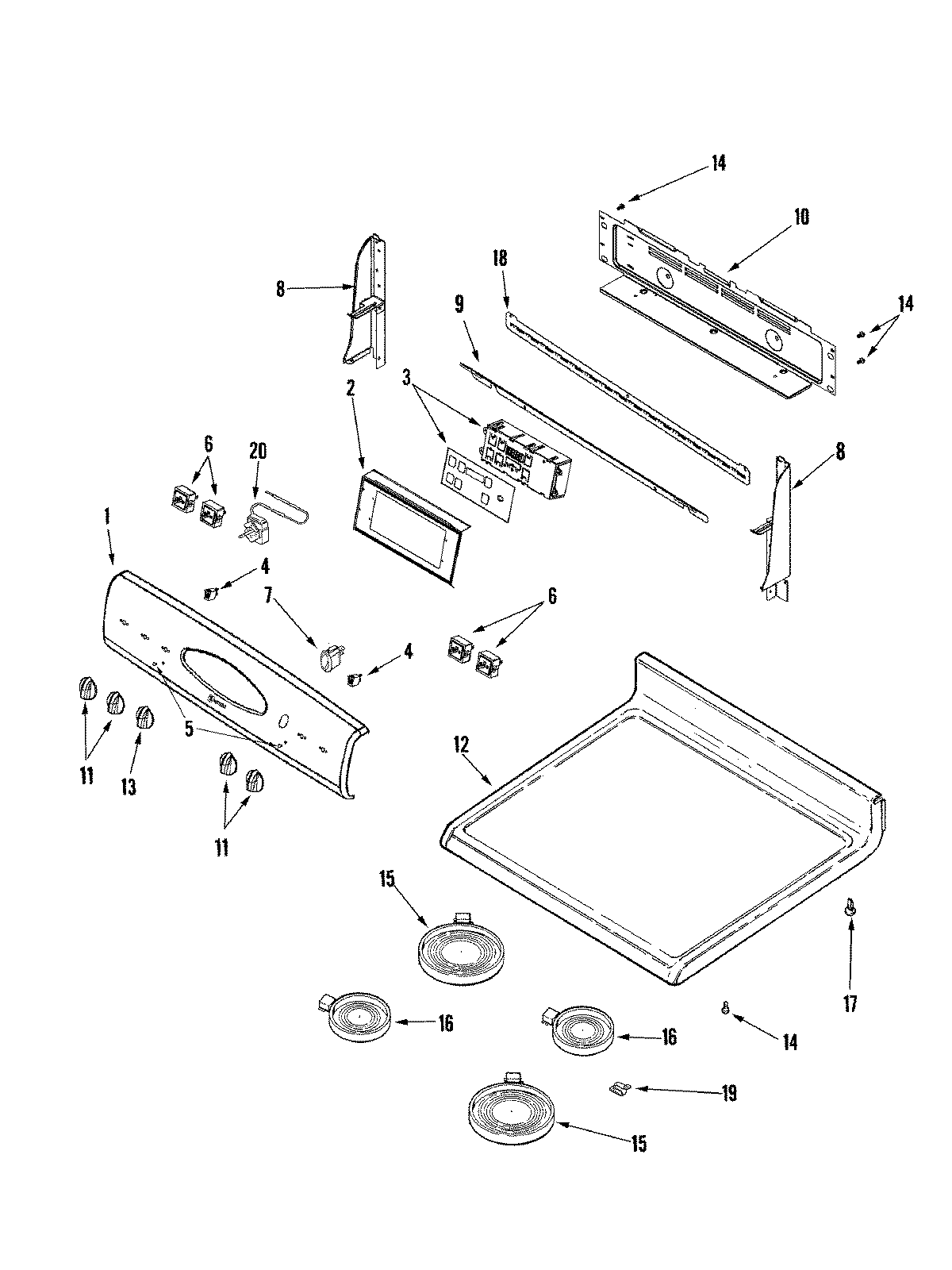

MER6741BAS 02 – CONTROL PANEL/TOP ASSEMBLY

MER6741BAS 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER6741BAS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011360
2BRACKET, CLOCK
3MAY 74011394
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6MAY 7101P280-60
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
77403P985-60 Whirlpool Rocker Switch (Black)
8WP74003976 Whirlpool Screw
8MAY 74010202
8MAY 74010201
8WP98008545 Whirlpool Screw
9MAY 74009978
10COVER, REAR WIRE
10SCREW (8BX3/8-NI)
11MAY 74008945
12MAY 74011060
1374008948 Whirlpool Oven Black Knob
14SCREW
15W10823715 Whirlpool Radiant Surface Element
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18WP90767 Whirlpool Screw
18MAY 74009701
198004P093-60 Whirlpool Support C
207404P139-60 Whirlpool Thermostat
