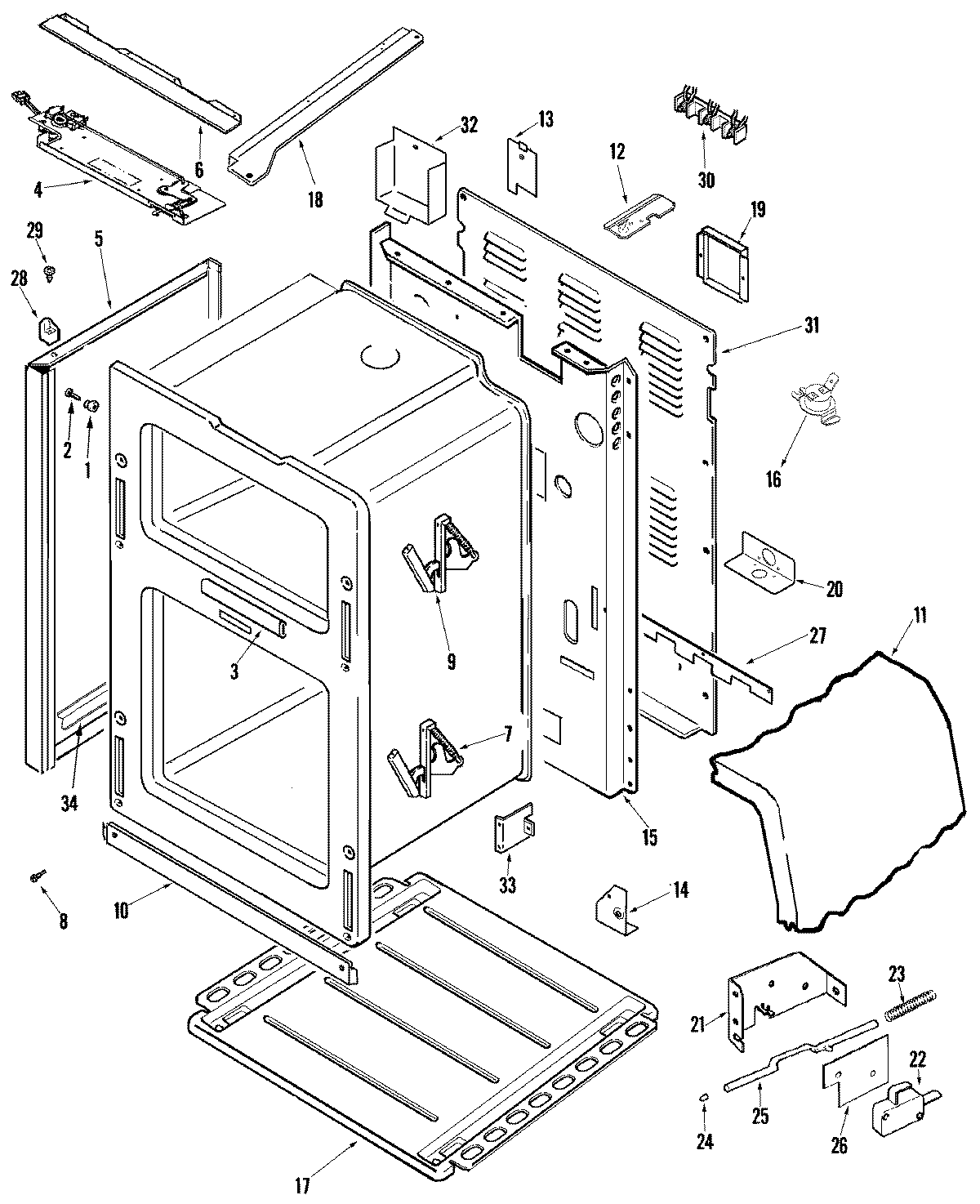

MER6741BAW 01 – BODY

Products

Position	Product
1	MAY 8004P024-60
2	W11693756 Whirlpool Screw Assembly
3	74004518 Whirlpool Frame Front Seal
4	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
4	74007429 Whirlpool Door Latch Assembly Primary Lock
5	MAY 74003236
6	MAY 74003384
7	74011142 Whirlpool Stove Range Oven Door Hinge and Spring
8	SCREW (10-24X5/16-NI)
9	MAY 74007830
9	MAY 7106P148-60
10	WP98008544 Whirlpool Screw Assembly
10	MAY 74007479
11	MAY 74004520
11	MAY 74003385
11	MAY 74007336
11	MAY 74007338
11	MAY 74007899
11	MAY 74009968
11	MAY 74009979
12	MAY 74001598
13	MAY 74007642
14	MAY 74007446
14	MAY 74007447
15	MAY 74009961
16	MAY 74009969
17	MAY 74009962
18	MAY 74007671
18	MAY 74007672
19	MAY 74010256
20	W10190166 Whirlpool Service Bracket
21	WPY706189 Whirlpool Stove Screw
21	BRACKET, SWITCH ACTUATOR
22	MAY 7101P330-60
22	MAY W10201670
24	MAY 74001631
25	ROD, DOOR LIGHT SWITCH
26	MAY 74001872
27	MAY 74005653
27	WP74003976 Whirlpool Screw
28	SPACER, MAIN TOP (RT)
28	SPACER, MAIN TOP (LT)
29	MAY 7101P313-60
30	WPW10245259 Whirlpool Terminal Block
30	MAY 74004532
31	MAY 74004576
32	SCREW
32	MAY 74004577
33	MAY 74005500
33	MAY 74005499
34	3823F015-51 Whirlpool Spacer
