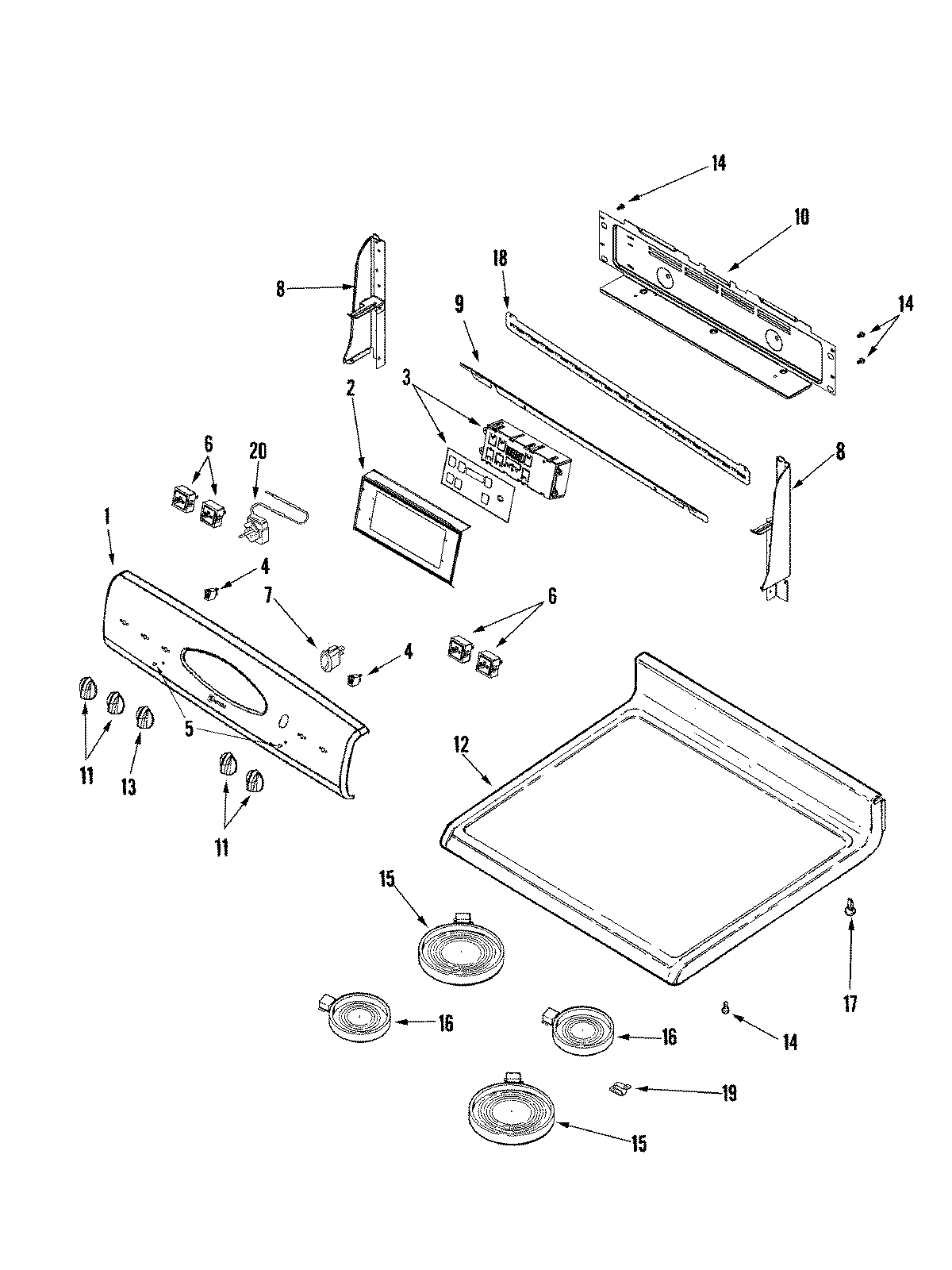

MER6741BAW 02 – CONTROL PANEL/TOP ASSEMBLY

MER6741BAW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER6741BAW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011361
2BRACKET, CLOCK
3MAY 74011393
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6MAY 7101P280-60
7WP74010226 Whirlpool RO Switch
8MAY 74010713
8WP98008544 Whirlpool Screw Assembly
8WP74003976 Whirlpool Screw
8MAY 74010212
9MAY 74009978
10COVER, REAR WIRE
10SCREW (8BX3/8-NI)
11WP74008947 Whirlpool Knob White
12MAY 74011061
1374008950 Whirlpool Knob White/Chrome
14SCREW
15W10823715 Whirlpool Radiant Surface Element
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18MAY 74009701
18WP90767 Whirlpool Screw
198004P093-60 Whirlpool Support C
207404P139-60 Whirlpool Thermostat
