MER6741BAW 05 – OVEN

MER6741BAW 05 – OVEN

Written by

in

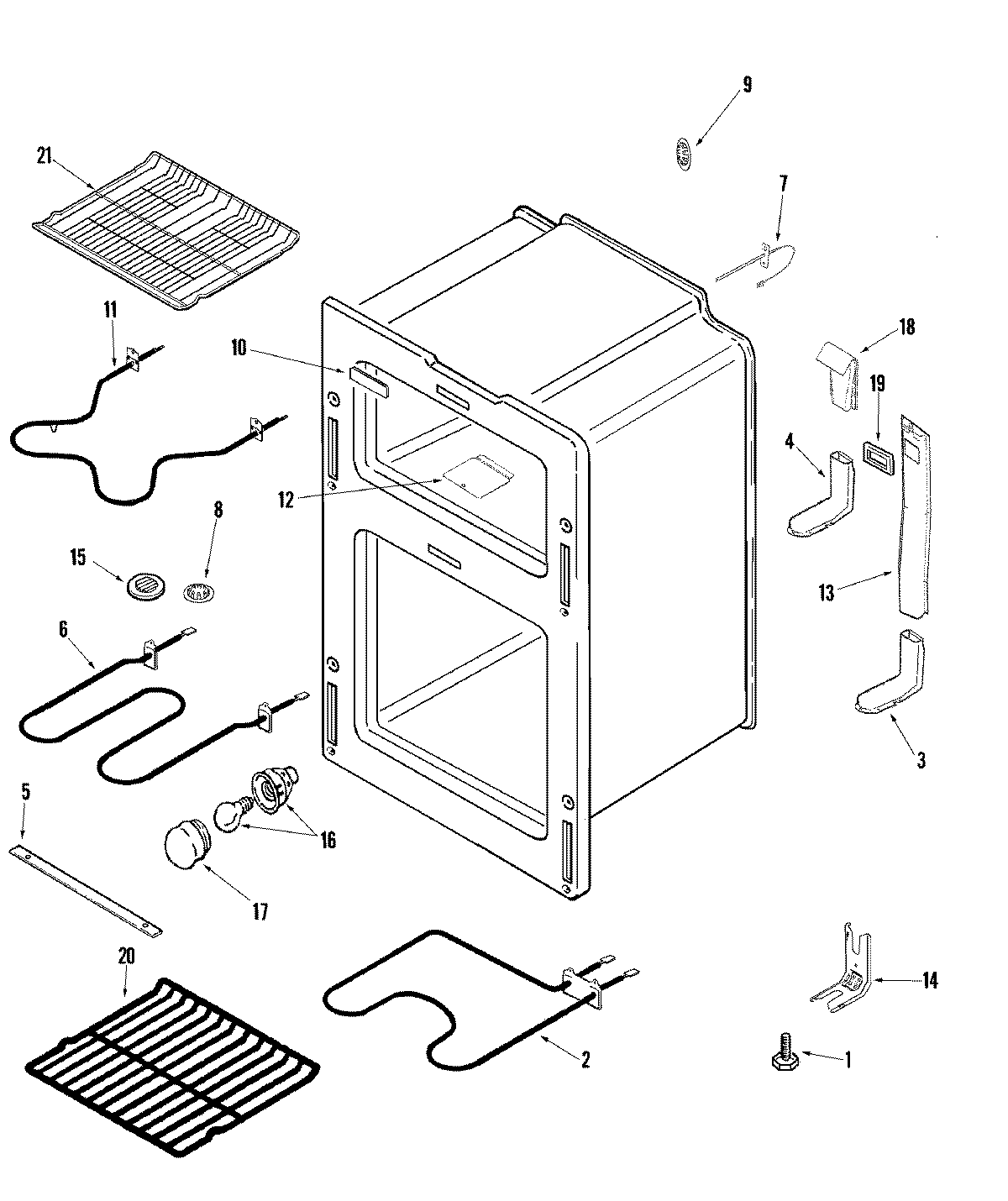

MER6741BAW 05 – OVEN

Products

PositionProduct
1W11665456 Whirlpool Range Level Foot
2MAY 74007932
2WP7406P428-60 Whirlpool Oven Bake Element
3MAY 74003394
4MAY 74004522
5WP400021-1 Whirlpool Screw
5SUPPORT, BROIL ELEMENT
6WPW10310249 Whirlpool Broil Element
712001656 Whirlpool Range Oven Temperature Sensor
8MAY 74004517
9MAY 74009191
10PLUG, LOCK SLOT
1174004105 Whirlpool Range Upper Oven Bake Element
12MAY 74011368
13MAY 74004535
14WP3801F656-51 Whirlpool Range Anti-Tip Bracket
14WP7101P485-60 Whirlpool Anchor Tip
15SCREEN, SMOKE ELIMINATOR
16WP74011278 Whirlpool Light
17MAY 74011299
18MAY 74009987
18MAY 74009988
18SCREW
19MAY 74004533
20WPW10282492 Whirlpool Oven Rack
21WPW10273816 Whirlpool Oven Rack
