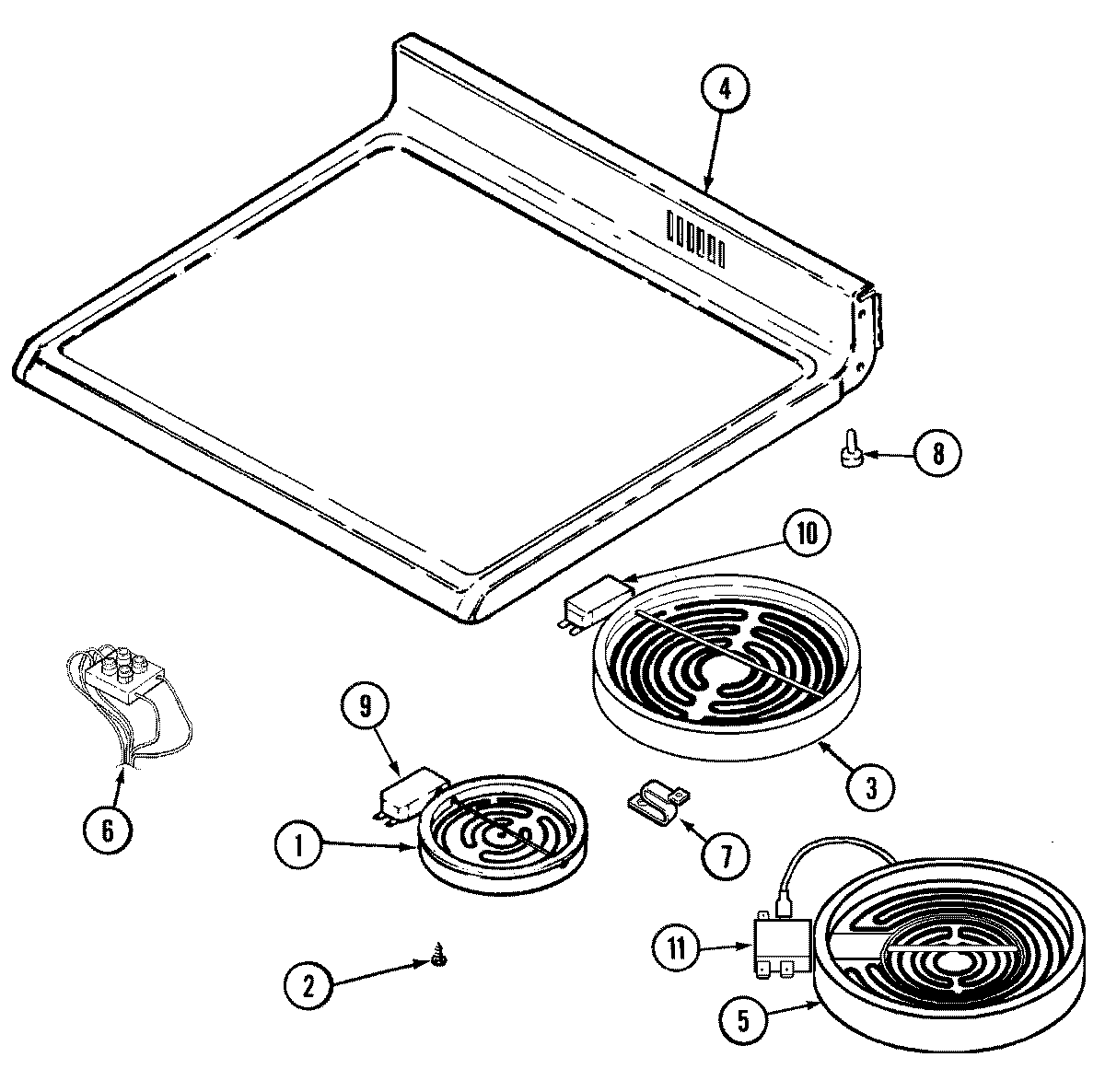

MER6750AAC 07 – TOP ASSEMBLY

MER6750AAC 07 – TOP ASSEMBLY

Written by

in

MER6750AAC 07 – TOP ASSEMBLY

Products

PositionProduct
1W10823711 Whirlpool Surface Element Left Front and Right Rear
1W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
2SCREW (6ABX.25-ZN)
3W10823697 Whirlpool Surface Element
3W10823707 Whirlpool Range Radiant Surface Element 8"
4MAY 74005423
4WA906B Whirlpool Cooktop Glass Scraper
4W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
5W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
6MAY 74005395
78004P093-60 Whirlpool Support C
8W11189172 Whirlpool Glide Drawer
10MAY 74004494
11MAY 74004880
