MER6750AAQ 06 – OVEN/BASE

MER6750AAQ 06 – OVEN/BASE

Written by

in

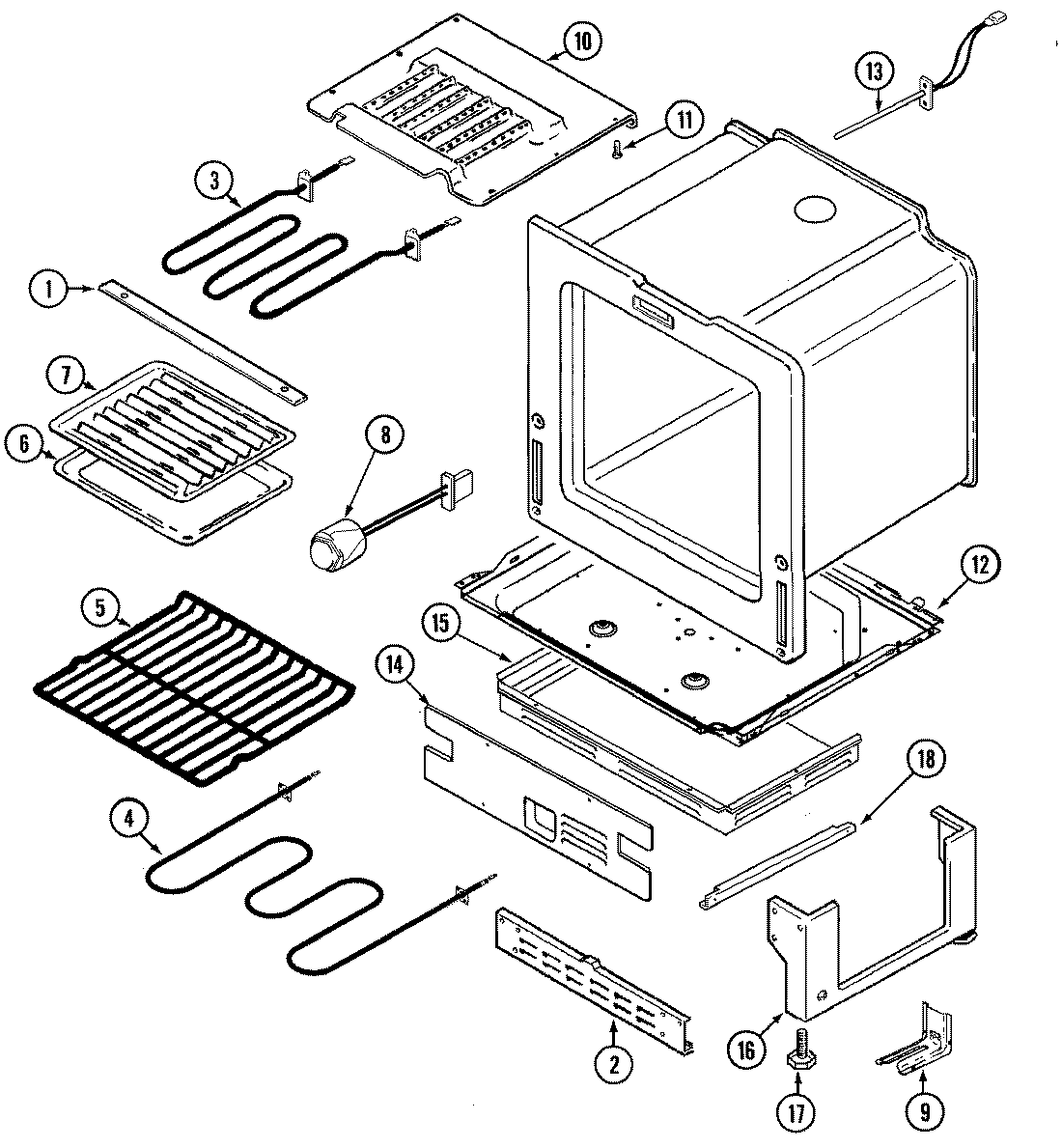

MER6750AAQ 06 – OVEN/BASE

Products

PositionProduct
1MAY 74003563
2MAY 4020F001-80
3WPY04000059 Whirlpool Bake Element
4MAY 74001163
5MAY 74001164
5MAY 74001808
6MAY Y3401F02019
7MAY Y3413F01619
8MAY 74005405
8W10886919 Whirlpool Light Bulb
9MAY 74005404
10MAY 3601F237-47
12MAY 74005403
13MAY 74001165
13MAY 74005402
14MAY 74001126
14SCREW
15MAY 74001120
16MAY 74003393
17W11665456 Whirlpool Range Level Foot
18RUNNER, DRAWER
