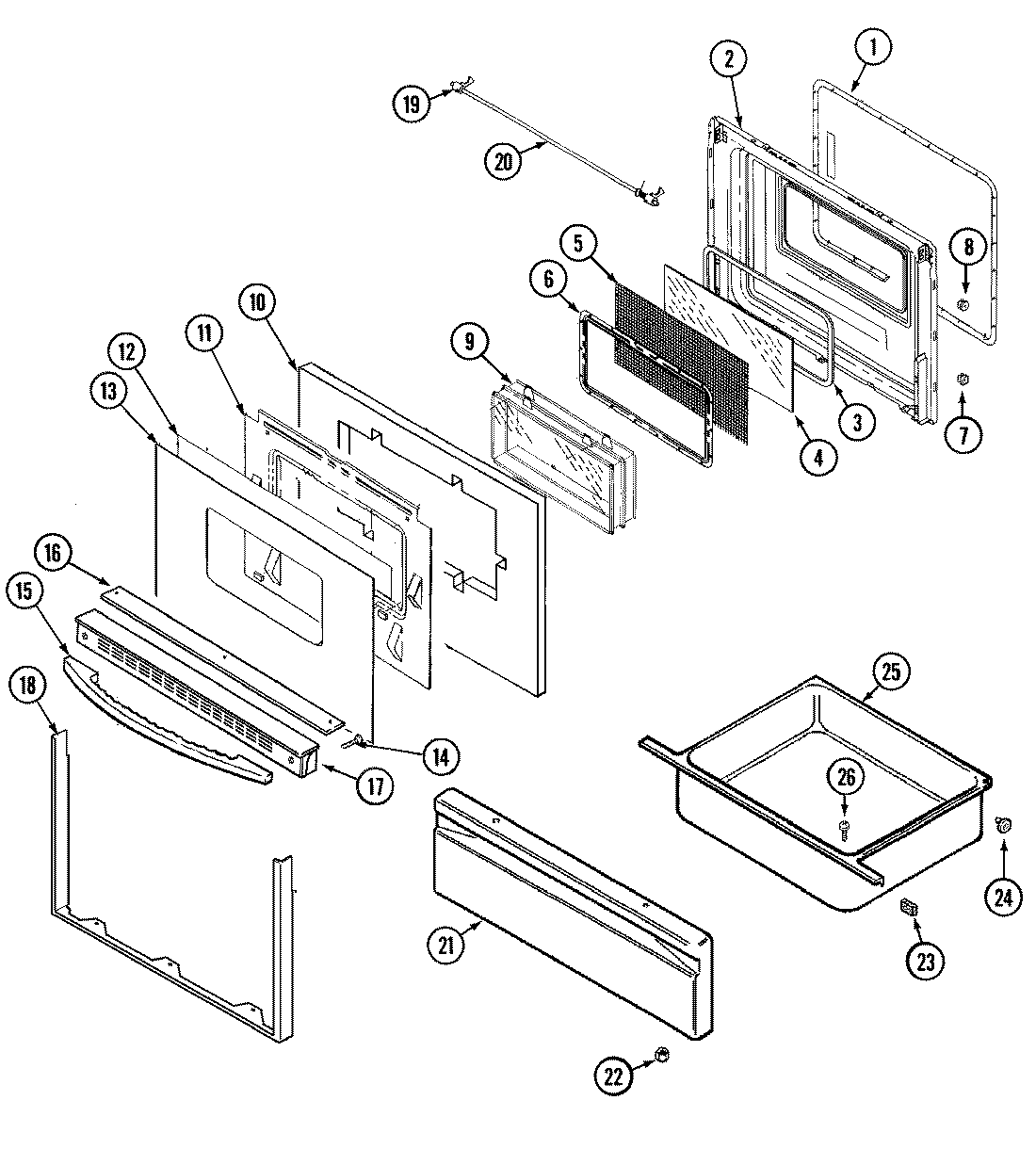

MER6750AAW 03 – DOOR/DRAWER (AAB, AAQ, AAW)

MER6750AAW 03 – DOOR/DRAWER (AAB, AAQ, AAW)

Written by

in

MER6750AAW 03 – DOOR/DRAWER (AAB, AAQ, AAW)

Products

PositionProduct
1MAY 7201P059-60
3MAY 74001106
4MAY 7902P392-60
5MAY 74001107
6SCREW (8BX3/8-NI)
6MAY 74001108
7MAY 74003643
8NUT, SNAP (ROUND-BLK)
8NUT, SNAP (ROUND-WHT)
9MAY 74001109
9MAY 74005410
10MAY 74005412
11MAY 74005408
12TAPE, FOIL (3“ WIDE)
13MAY 74005409
15WP179051 Whirlpool Screw
15MAY 74003620
16MAY 7728P094-60
17WP74003653 Whirlpool Door Trim
18WP98008544 Whirlpool Screw Assembly
18MAY 74004325
19MAY 74001168
19MAY 74001112
19MAY 74001111
19MAY 74001110
20MAY 74001113
21SCREW
21MAY 74003399
22WPW10131078 Whirlpool Nut Assembly
23MAY 8010P085-60
24WP488130 Whirlpool Air Conditioner Nut
24MAY 74004079
24WP74004078 Whirlpool Door Roller
25MAY 71003042
