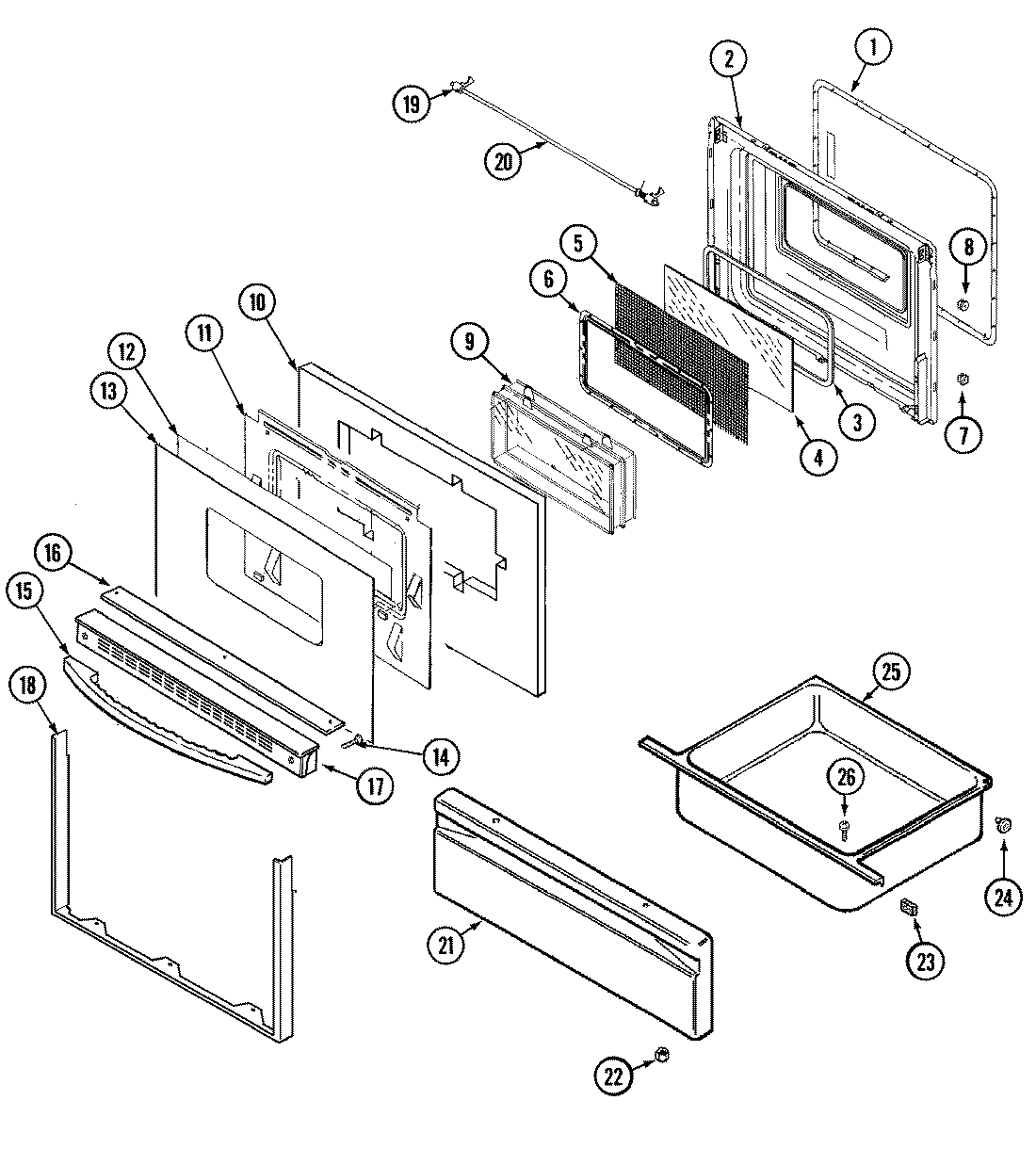

MER6750ACQ 03 – DOOR/DRAWER (ACQ, ACW)

MER6750ACQ 03 – DOOR/DRAWER (ACQ, ACW)

Written by

in

MER6750ACQ 03 – DOOR/DRAWER (ACQ, ACW)

Products

PositionProduct
1MAY 7201P059-60
2MAY 74005406
3MAY 74001106
4MAY 7902P392-60
5MAY 74001107
6MAY 74001108
6SCREW (8BX3/8-NI)
7MAY 74003643
8NUT, SNAP (ROUND-BLK)
8NUT, SNAP (ROUND-WHT)
9MAY 74001109
9MAY 74005410
10MAY 74005412
11MAY 74005408
12TAPE, FOIL (3“ WIDE)
13MAY 74005424
15MAY 74004974
15WP179051 Whirlpool Screw
16MAY 74004978
16MAY 74005245
17MAY 74005241
18MAY 74005162
18WP74009541 Whirlpool Screw Assembly
19MAY 74005547
19MAY 74001168
19MAY 74001112
19MAY 74005548
20MAY 74001113
21SCREW
21MAY 74005055
22WPW10131078 Whirlpool Nut Assembly
23WP74005546 Whirlpool RU Spacer
24WP74004078 Whirlpool Door Roller
24WP488130 Whirlpool Air Conditioner Nut
24SHAFT, STORAGE DRAWER ROLLER
25MAY 71003042
