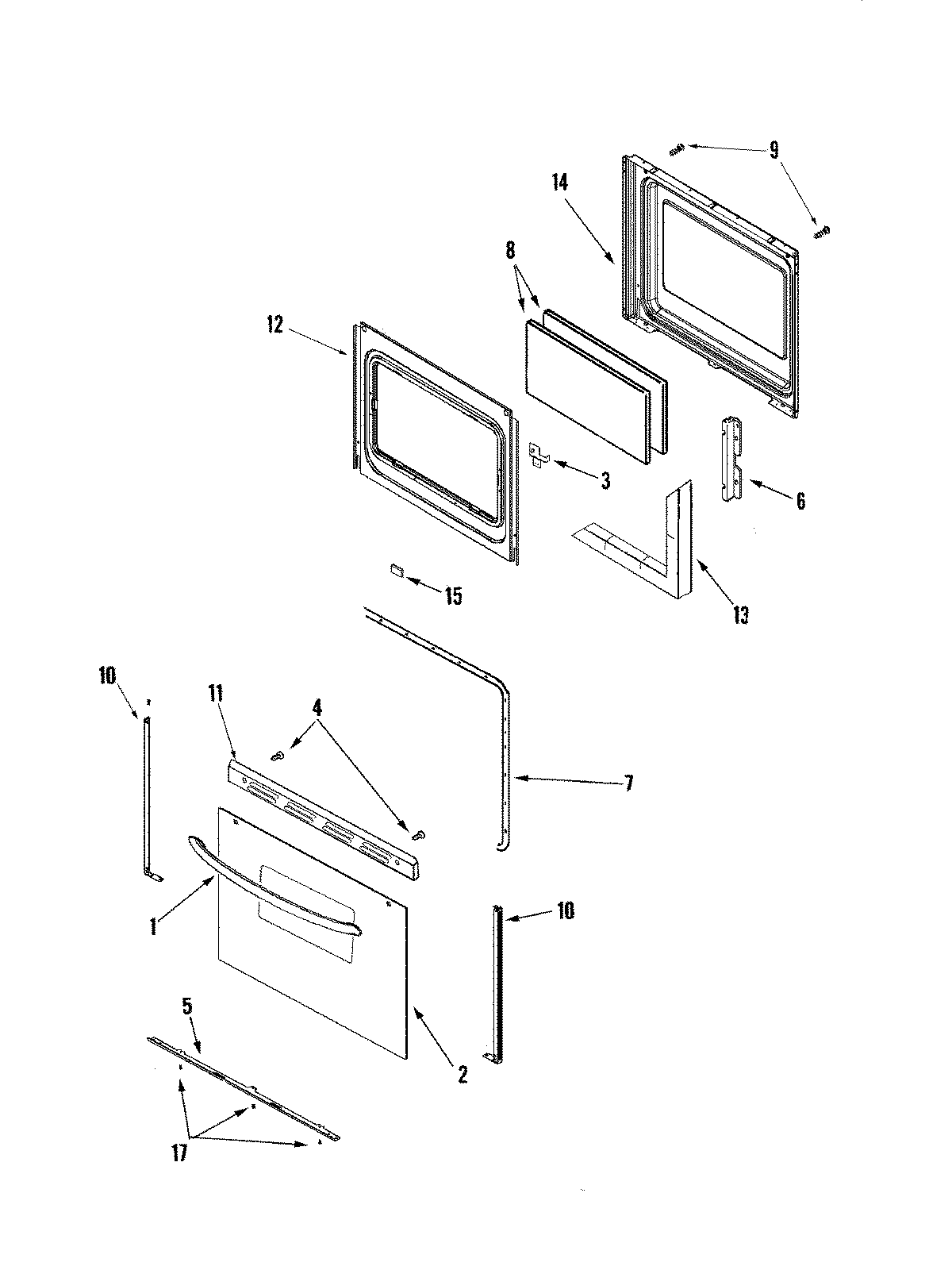

MER6751AAB 03 – DOOR (LOWER)

MER6751AAB 03 – DOOR (LOWER)

Written by

in

MER6751AAB 03 – DOOR (LOWER)

Products

PositionProduct
1WP74011767 Whirlpool Door Handle
174011777 Whirlpool Range Oven Door Handle
2MAY 12002394
2MAY 12002362
2MAY 12002393
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BLK)
6MAY 74001844
7GASKT-DOOR OVEN
8GLASS, INNER
9SCREW
10WP3608F117-70 Whirlpool Door Trim
10WP3608F116-70 Whirlpool Door Trim
10WP74009025 Whirlpool Double Sided Tape
11MAY 74009689
12BAFFLE, OVEN DOOR
12MAY 7101P356-60
13MAY 74001842
14LINING, OVEN DOOR
15WP74005546 Whirlpool RU Spacer
