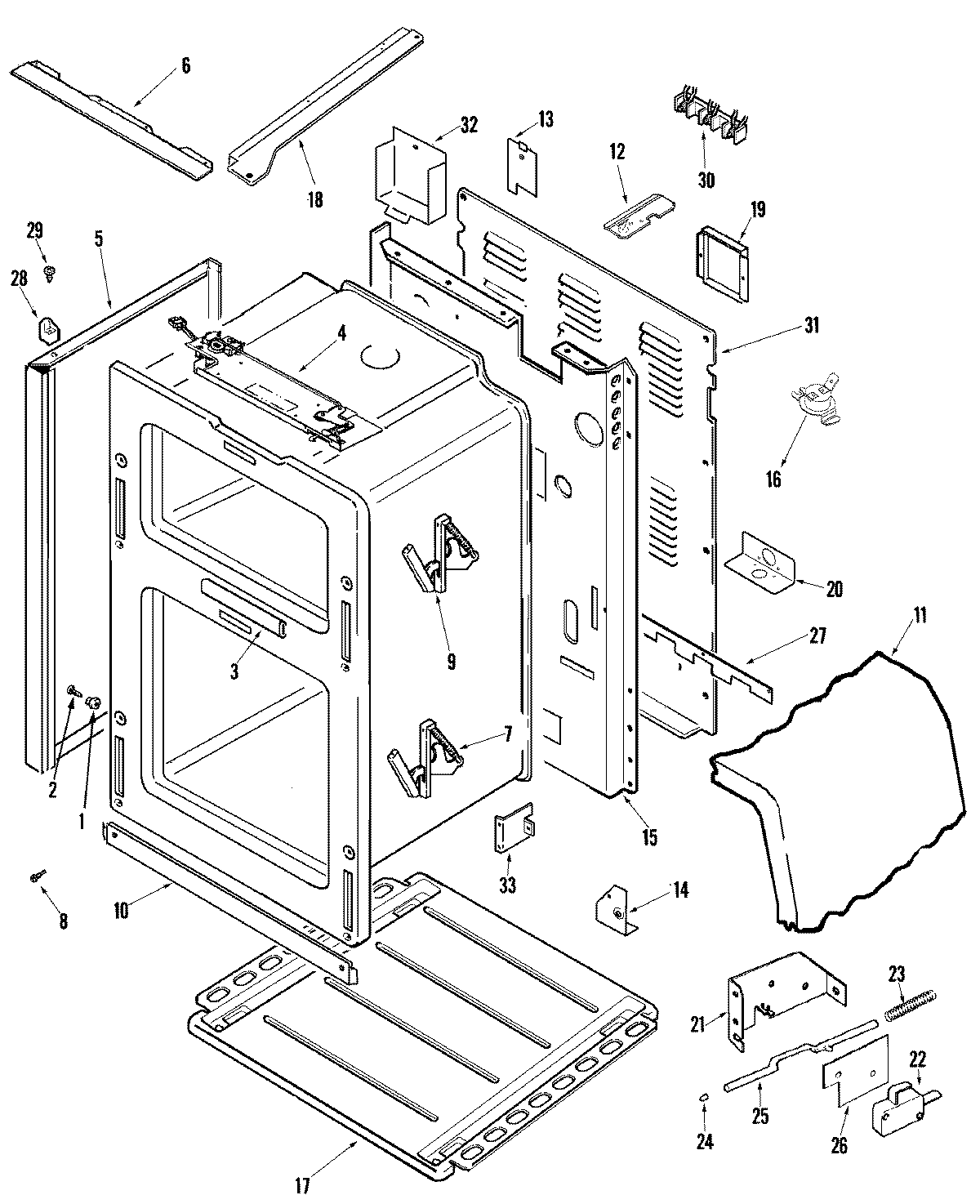

MER6751AAQ 01 – BODY

Products

Position	Product
1	MAY 8004P024-60
1	3823F015-51 Whirlpool Spacer
2	MAY 74007476
3	74004518 Whirlpool Frame Front Seal
4	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
4	74007429 Whirlpool Door Latch Assembly Primary Lock
5	MAY 74004965
6	MAY 74003384
7	74011142 Whirlpool Stove Range Oven Door Hinge and Spring
9	MAY W10202401
9	SCREW (10-24X5/16-NI)
9	MAY 74007830
10	MAY 74007480
10	WP74009541 Whirlpool Screw Assembly
11	MAY 74007338
12	MAY 74009736
13	SCREW
15	MAY 74009961
15	WP74003976 Whirlpool Screw
15	W10823715 Whirlpool Radiant Surface Element
16	MAY 74009969
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	MAY 74009962
17	W11189172 Whirlpool Glide Drawer
18	WP90767 Whirlpool Screw
18	MAY 74009701
18	MAY 74007672
18	MAY 74007671
19	8004P093-60 Whirlpool Support C
19	MAY 4005F427-51
20	W10190166 Whirlpool Service Bracket
21	BRACKET, SWITCH ACTUATOR
21	WPY706189 Whirlpool Stove Screw
22	MAY 7101P330-60
22	MAY W10201670
24	MAY 74001631
25	ROD, DOOR LIGHT SWITCH
26	MAY 74001872
27	MAY 74005653
28	SPACER, MAIN TOP (RT)
28	SPACER, MAIN TOP (LT)
29	MAY 7101P313-60
30	MAY 74004532
30	MAY 7401P038-60
31	MAY 74004576
31	SCREW
32	MAY 74004577
33	MAY 74005500
33	MAY 74005499
