MER6751AAQ 02 – CONTROL PANEL/TOP ASSEMBLY

MER6751AAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER6751AAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

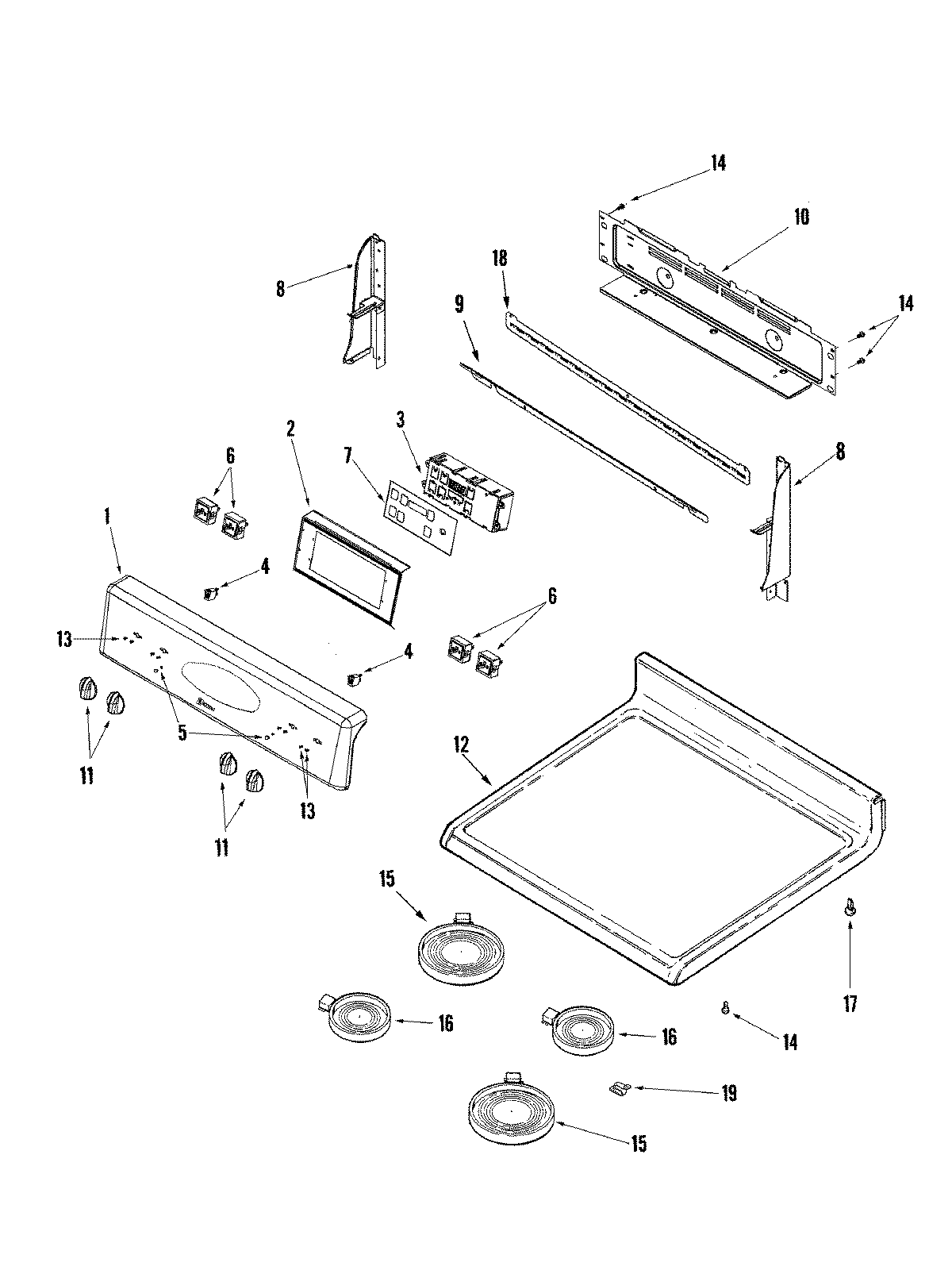

PositionProduct
1MAY 74010013
2BRACKET, CLOCK
3W10769079-includeCORE Whirlpool W10769079 Refrigerator Electronic Control Board + Core
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
7MAY 74009995
8MAY 74009668
8MAY 74009671
8WP74009541 Whirlpool Screw Assembly
8WP74003976 Whirlpool Screw
9MAY 74009978
10MAY 74010804
10SCREW (8BX3/8-NI)
1174008946 Whirlpool Oven Bisque Knob
12MAY 74009736
13SCREW
14SCREW
15W10823715 Whirlpool Radiant Surface Element
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18MAY 74009701
18WP90767 Whirlpool Screw
198004P093-60 Whirlpool Support C
