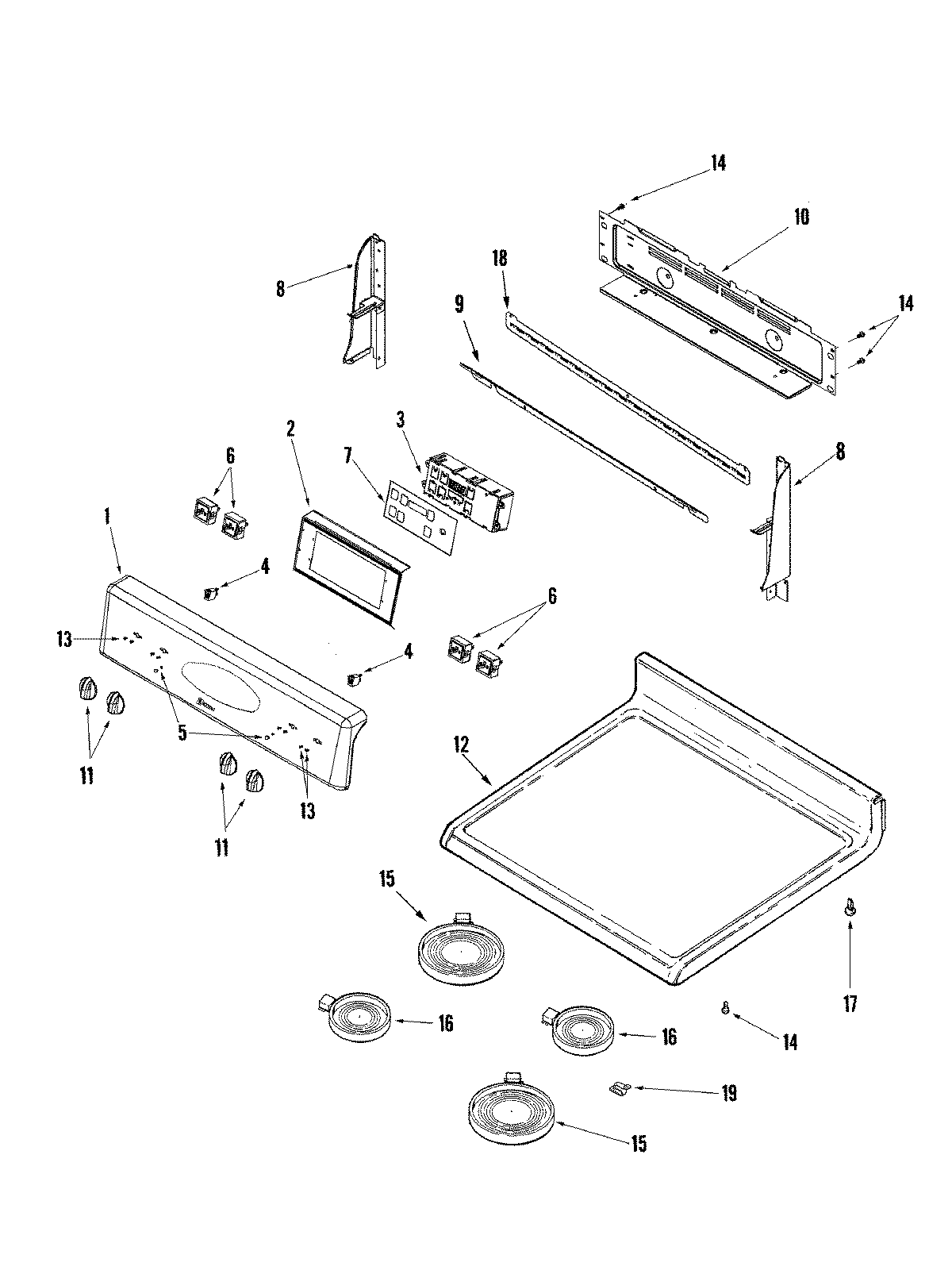

MER6751AAW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74010012
2	BRACKET, CLOCK
3	W10769079-includeCORE Whirlpool W10769079 Refrigerator Electronic Control Board + Core
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP7403P239-60 Whirlpool Oven Switch
7	MAY 74009993
8	WP98008544 Whirlpool Screw Assembly
8	MAY 74009672
8	WP74003976 Whirlpool Screw
8	MAY 74009669
9	MAY 74009978
10	MAY 74010804
10	SCREW (8BX3/8-NI)
11	WP74008947 Whirlpool Knob White
12	MAY 74009735
13	SCREW
14	SCREW
15	W10823715 Whirlpool Radiant Surface Element
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	W11189172 Whirlpool Glide Drawer
18	WP90767 Whirlpool Screw
18	MAY 74009701
19	8004P093-60 Whirlpool Support C
