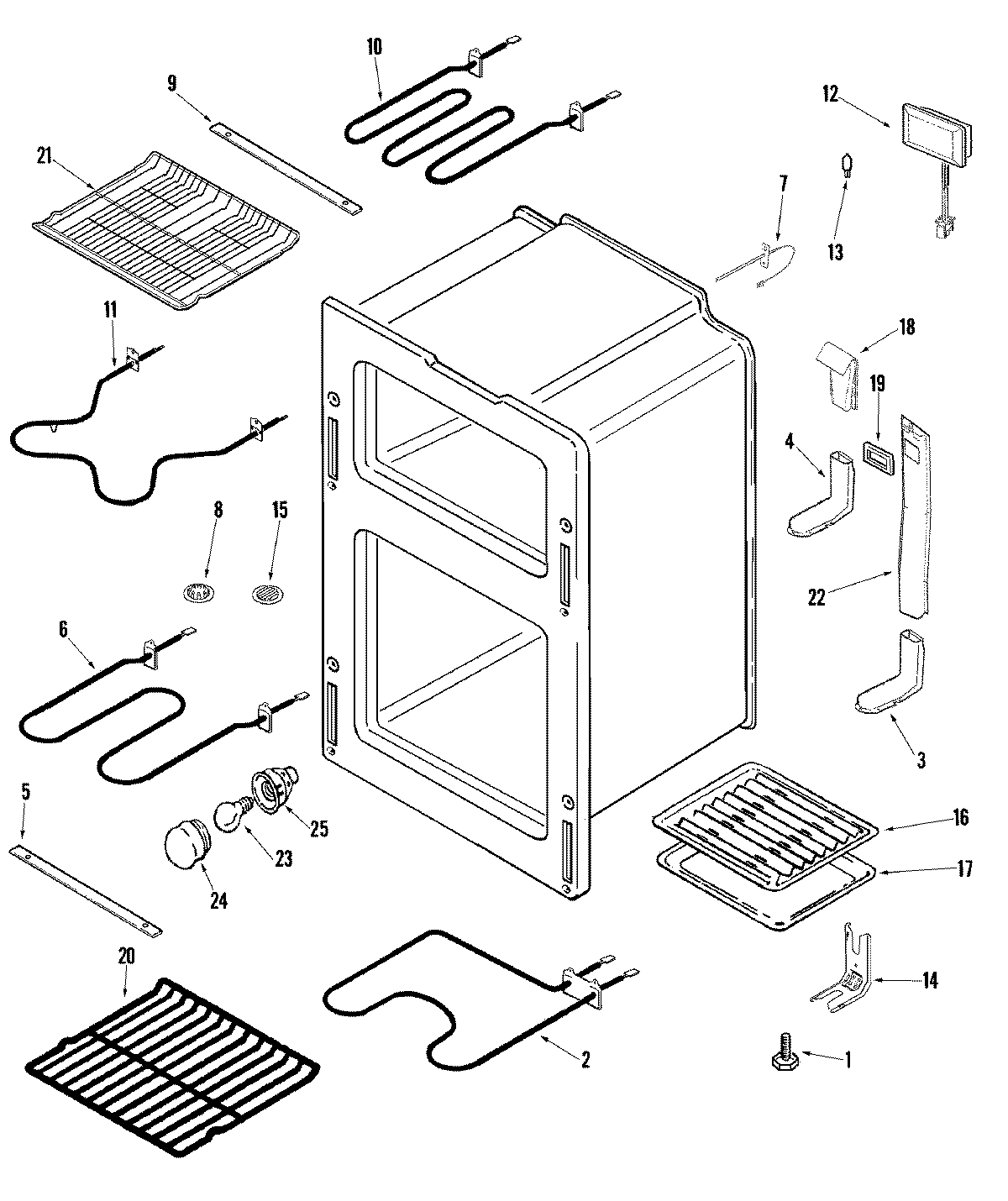

MER6751AAW 05 – OVEN

Products

Position	Product
1	W11665456 Whirlpool Range Level Foot
2	WP7406P428-60 Whirlpool Oven Bake Element
2	MAY 74007932
3	MAY 74003394
4	MAY 74004522
5	WP400021-1 Whirlpool Screw
5	SUPPORT, BROIL ELEMENT
6	WPW10310249 Whirlpool Broil Element
7	12001656 Whirlpool Range Oven Temperature Sensor
7	WP7430P044-60 Whirlpool Top
8	MAY 74004517
9	MAY 3807F176-19
10	W10201551 Whirlpool Oven Broil Element
11	74004105 Whirlpool Range Upper Oven Bake Element
12	MAY 74009970
13	WP74009925 Whirlpool Halogen Light Bulb
14	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
14	WP7101P485-60 Whirlpool Anchor Tip
15	SCREEN, SMOKE ELIMINATOR
16	MAY Y3413F01619
17	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17	MAY Y3401F02019
18	MAY 74009988
18	MAY 74009987
19	MAY 74004533
20	WPW10282492 Whirlpool Oven Rack
21	WPW10273816 Whirlpool Oven Rack
22	MAY 74004535
22	SCREW
23	MAY Y707319
24	MAY 71001867
25	WP74011278 Whirlpool Light
