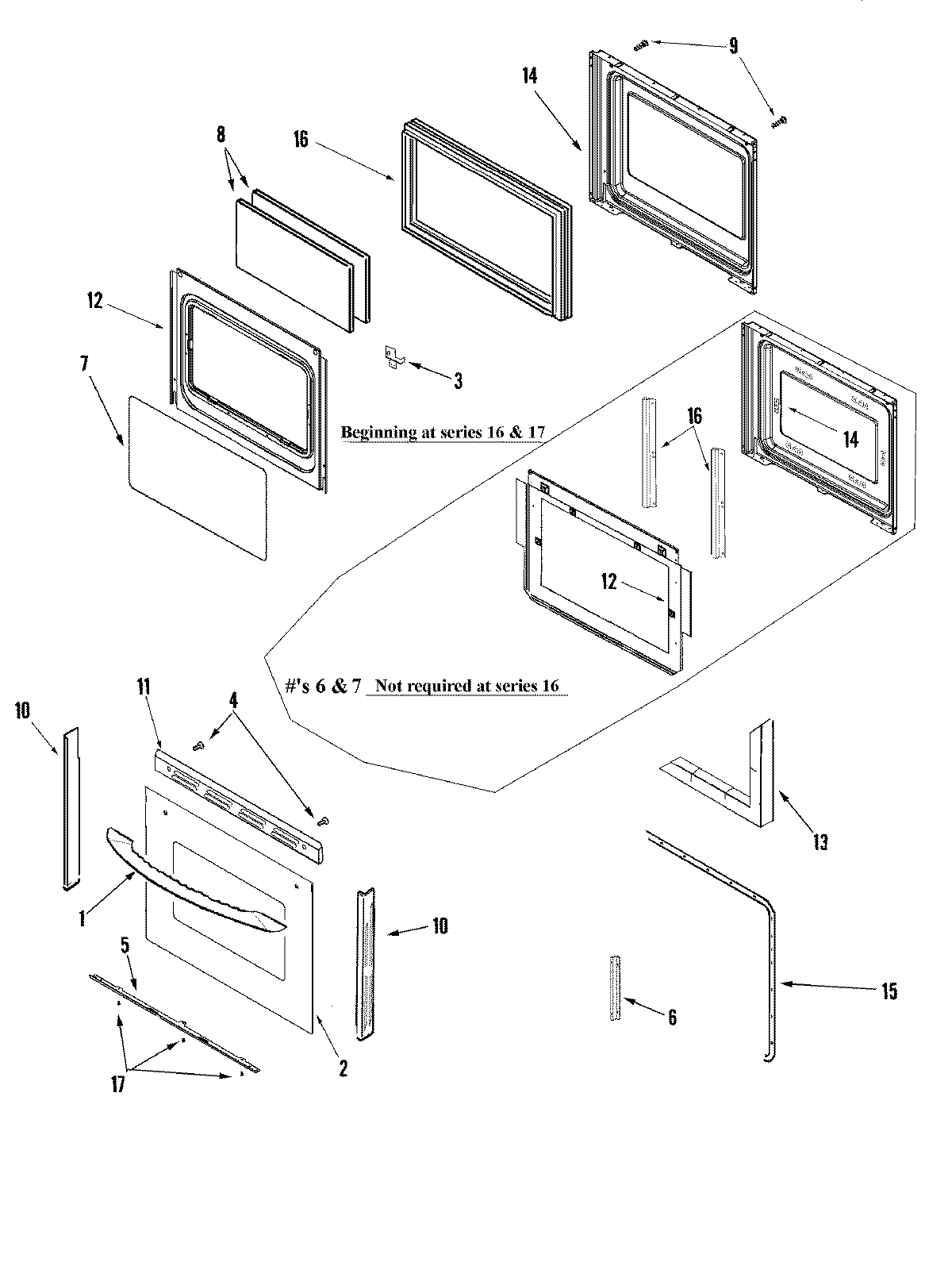

MER6755AAB 03 – DOOR (LOWER)

Products

Position	Product
1	WP74011767 Whirlpool Door Handle
2	MAY 12002395
3	WP74005546 Whirlpool RU Spacer
3	3801F832-45 Whirlpool Bracket
3	3801F831-45 Whirlpool Bracket Assembly
3	SCREW (10ABX1/4P TR ZN)
4	WP74006515 Whirlpool Washer Screw
5	SUPPORT, GLASS (BLK)
6	MAY 74003650
7	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
7	GLASS, DOOR
8	74003645 Whirlpool Range Oven Door Inner Glass
10	WP74009025 Whirlpool Double Sided Tape
10	WP3608F117-70 Whirlpool Door Trim
10	WP3608F116-70 Whirlpool Door Trim
11	TAPE, FOIL 29`` X 2``
11	MAY 74009689
11	WP98008545 Whirlpool Screw
12	3601F373-51 Whirlpool Baffle
12	MAY 7101P356-60
12	MAY 74009502
13	MAY 74004569
14	MAY 74003642
14	SCREW
14	LINING, DOOR
14	NUT, SNAP (ROUND-WHT)
14	NUT, SNAP (ROUND-BLK)
15	GASKT-DOOR OVEN
16	SCREW, 8 X 1/2
16	FRAME, GLASS
16	3801F886-51 Whirlpool Mounting Bracket
